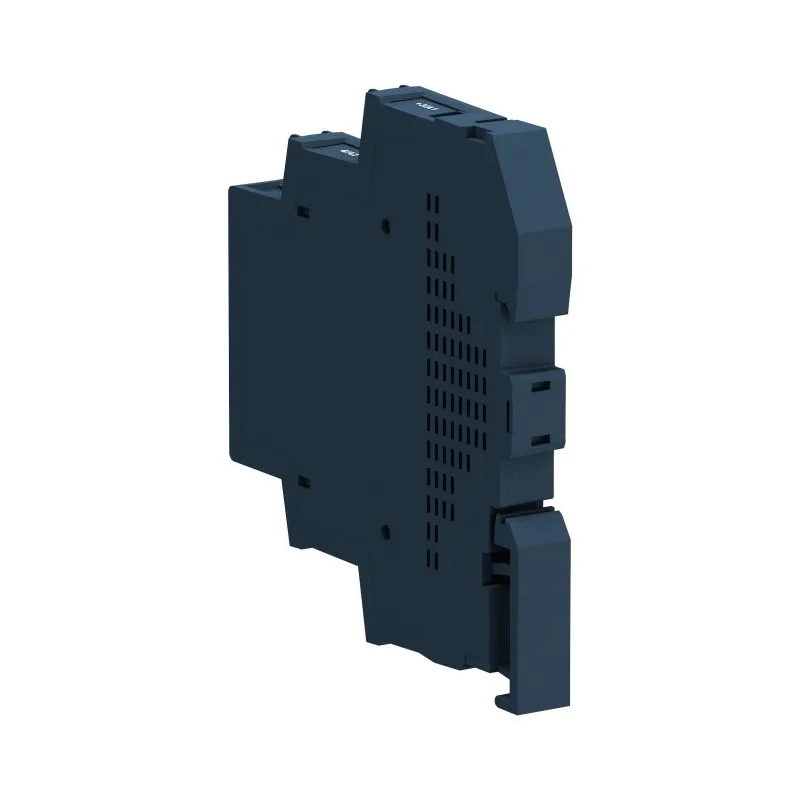

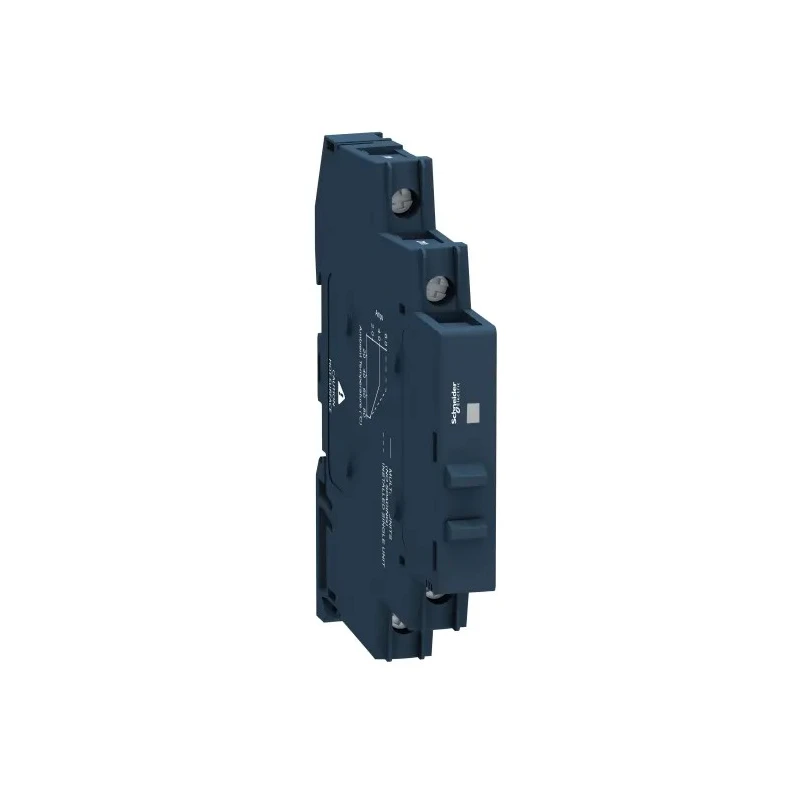

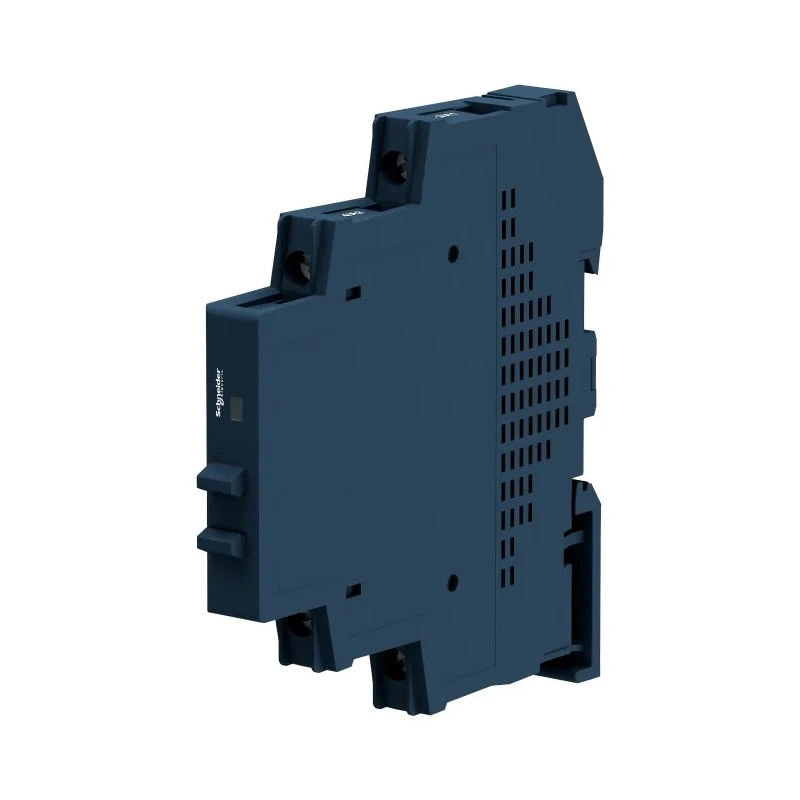

Schneider Electric Harmony Relay Series Solid State Relay 6A Load 280V AC Load 140V AC Control DIN Rail Mount SSM1A16F7
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 87.7mm |
| Length | 11.02mm |
| Model | SSM1A16F7 |
| IP Rating | IP20 |
| Width | 83.7mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | AC |
| Maximum Load Current | 6A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 90V ac |
| Maximum Control Voltage | 140V ac |
| Off State Leakage Current | 0.1mA |
Key Features
- This relay features a control voltage range of 90V to 140V AC for input switching.
- It supports zero voltage switching appropriate for resistive loads ensuring silent operation.
- The device incorporates a built-in heatsink for optimized heat dissipation and durability.
- A visual input status indicator ensures easy monitoring during operation.
- IP20 rated modular housing provides protection suitable for industrial electrical installations.
- The relay supports screw terminal type connections for reliable wiring.
- Operating temperature range of -30°C to 80°C ensures performance in various environments.
- Compact dimensions allow easy integration in electrical panels with an 87.7mm height and 83.7mm width.
Product Description
Schneider Electric SSM1A16F7 Harmony Relay Series Solid State Relay is designed for reliable AC load switching applications with a maximum current rating of 6 A and a load voltage range from 24 V AC to 280 V AC. Its DIN rail mount modular design enables easy installation in electrical panels. The relay operates with a control voltage between 90V AC and 140V AC, supporting zero-cross switching to minimize electrical noise and prolong contactor life.
This solid state relay uses an SCR output type with a low off-state leakage current of 0.1mA and a capacitance of 10pF. It features a screw terminal type for secure wiring and includes a built-in heatsink to enhance thermal management. The device is IP20 rated, suitable for industrial control, automation systems, and electrical distribution use cases. Its robust construction allows operation in temperature ranges from -30°C to 80°C, making it adaptable to diverse environments.

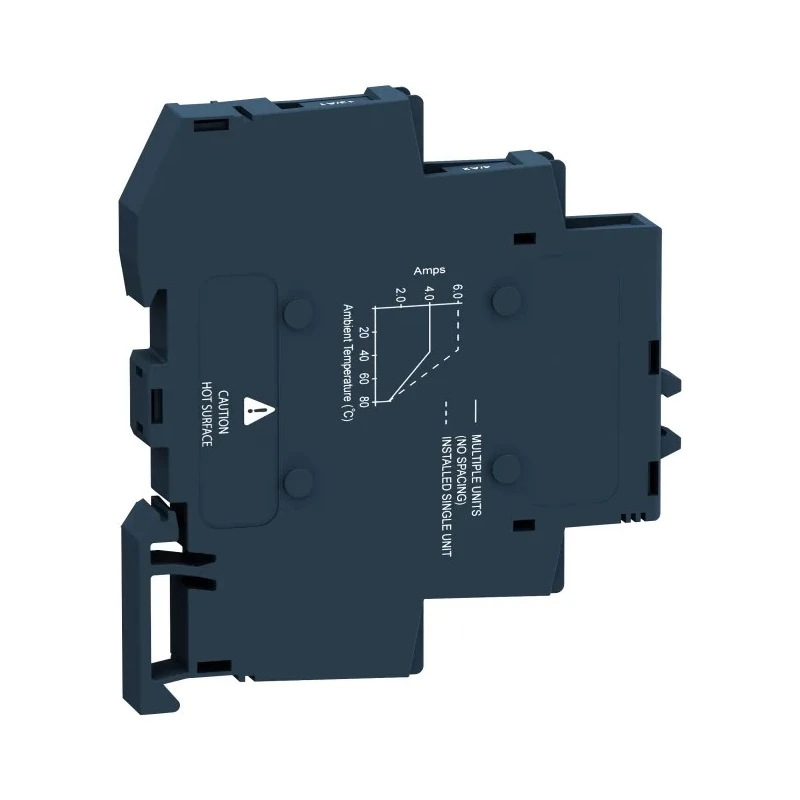

The relay’s compact dimensions of 87.7mm height, 83.7mm width, and 11.02mm length assist in space-saving panel layouts. The clear schematic displayed on the side aids in quick and accurate wiring, improving maintenance efficiency. Ideal for resistive load control, the relay ensures silent, reliable switching without mechanical wear.
This relay features a control voltage range of 90V to 140V AC for input switching. It supports zero voltage switching appropriate for resistive loads ensuring silent operation. The device incorporates a built-in heatsink for optimized heat dissipation and durability.
A visual input status indicator ensures easy monitoring during operation. IP20 rated modular housing provides protection suitable for industrial electrical installations. The relay supports screw terminal type connections for reliable wiring.
Operating temperature range of -30°C to 80°C ensures performance in various environments. Compact dimensions allow easy integration in electrical panels with an 87.7mm height and 83.7mm width.
This solid state relay is widely used in industrial applications including automation systems, manufacturing equipment, HVAC controls, and water treatment plants where reliable and silent electrical switching is essential.
Explore a wide range of Schneider Electric products and other Solid State Relays at EnvMart for your industrial electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 6A.
This relay supports a load voltage range from 24V AC to 280V AC.
The control voltage range for this model is between 90V AC and 140V AC.
This relay utilizes a DIN rail mount design for easy installation in electrical panels.
The solid state relay has an IP20 rating, providing protection suitable for industrial electrical installations.
The operating temperature range for this relay is from -30°C to 80°C.
It supports screw terminal type connections for reliable wiring.
The capacitance of this relay is 10pF.
This model uses an SCR output type.
The relay has a length of 11.02mm and a width of 83.7mm.
This solid state relay complies with RoHS standards.
This relay is suitable for applications in industrial control, automation systems, and HVAC controls.
