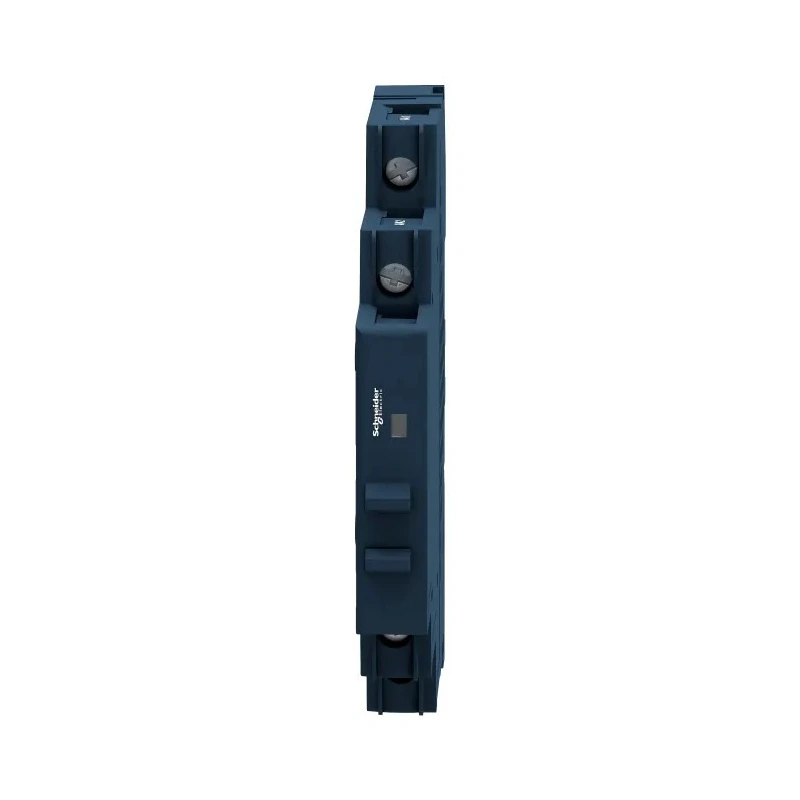

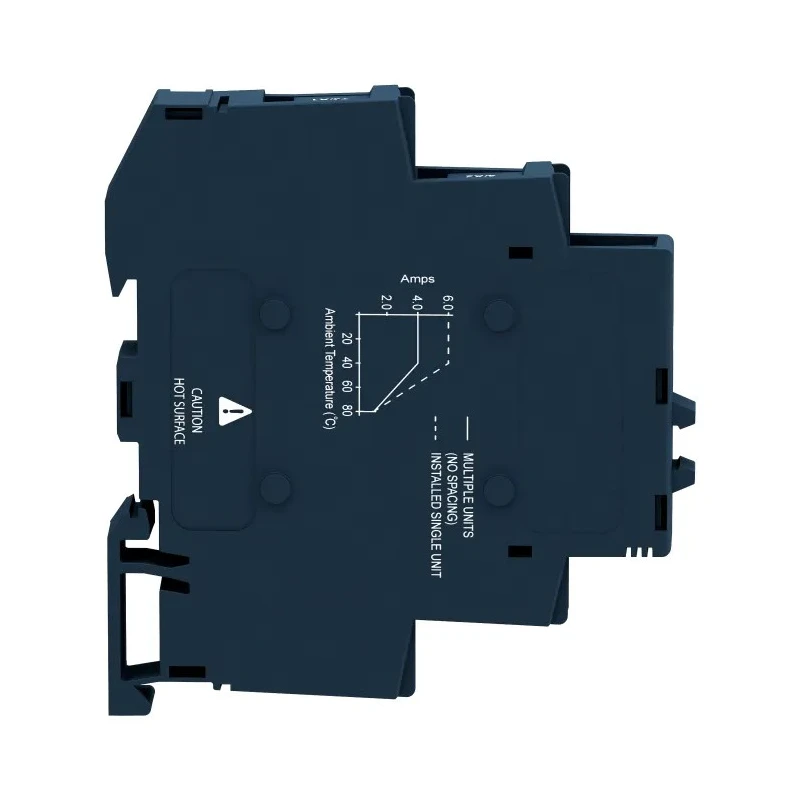

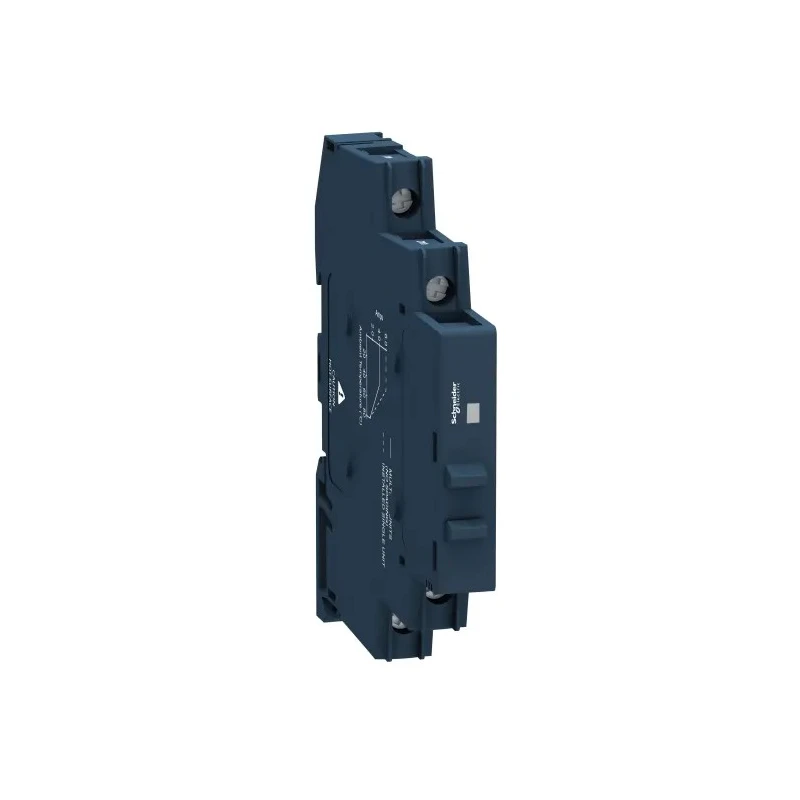

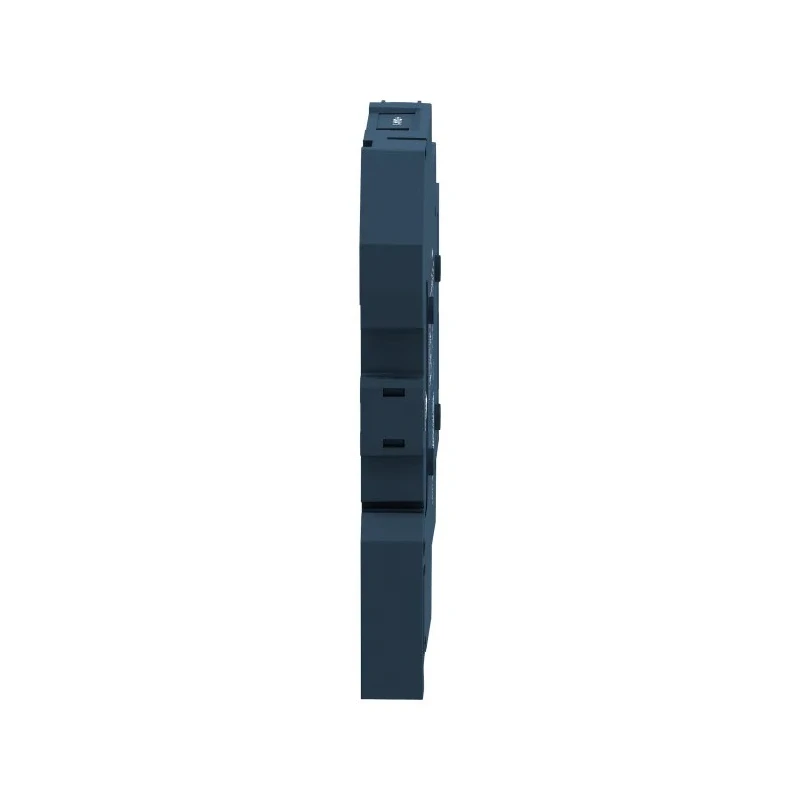

Schneider Electric Harmony Relay Series Solid State Relay, 6 A Load, DIN Rail Mount, 600 V AC Load, 32 V DC Control SSM1A36BD

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Harmony Relay Series Solid State Relay, 6 A Load, DIN Rail Mount, 600 V AC Load, 32 V DC Control SSM1A36BD

Name: Schneider Electric Harmony Relay Series Solid State Relay, 6 A Load, DIN Rail Mount, 600 V AC Load, 32 V DC Control SSM1A36BD
Brand: Schneider Electric
SKU: 276055
Price: 68.3 USD
Availability: InStock



Category Solid State Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	Mexico
Brand	Schneider Electric
Height	87.7mm
Length	11.02mm
Model	SSM1A36BD
IP Rating	IP20
Width	83.7mm
Mount Type	DIN Rail
Output type	SCR
Series	Harmony Relay
Maximum Operating Temperature	80°C
Contact Configuration	SPST
Capacitance	10pF
Minimum Operating Temperature	-30°C
Terminal type	Screw
Switching Function	AC
Maximum Load Current	6A
Standards/Approvals	RoHS
Maximum Load Voltage	600V ac
Minimum Load Voltage	48V ac
Minimum Control Voltage	4V dc
Maximum Control Voltage	32V dc
Off State Leakage Current	0.1mA

Key Features

Rated load voltage ranges from 48V to 600V AC ensuring compatibility across various AC systems.
Input control voltage span from 4V to 32V DC provides flexible control interfaces.
Constructed with a built-in heatsink for optimal thermal management.
Visual input status indicator facilitates easy monitoring.
Silent operation achieved through absence of mechanical contacts.
Compact modular design optimized for industrial automation and control applications.
IP20 rating provides basic protection against dust and contact.
Supports zero voltage switching ideal for resistive loads enhancing durability.

Product Description

Schneider Electric SSM1A36BD is a Harmony Relay Series solid state modular relay designed for industrial and automation use. This DIN rail mount solid state relay supports a maximum load current of 6 amperes and is compatible with a load voltage ranging from 48V to 600V AC. It is controlled by a DC input voltage between 4V and 32V, allowing for efficient switching operations with zero voltage switching for enhanced reliability when handling resistive loads.

The relay includes an integrated heatsink that optimizes thermal management and ensures long-lasting performance. Its compact modular design is suitable for industrial environments requiring silent, contactless switching to reduce wear and maintenance. The built-in visual indicator on the input side aids in quick status verification during installation and maintenance.

Featuring a screw terminal contact configuration with SPST type output and a SCR output type, the device supports switching functions for AC control applications and has an IP20 rating for protection against solid foreign objects and accidental contact. It operates reliably within a temperature range of -30°C to 80°C. The off-state leakage current is minimal at 0.1 mA and 10 pF capacitance, supporting efficient low-loss operation.

Manufactured in Mexico, this relay complies with RoHS standards, ensuring environmental safety compliance. Its height of 87.7 mm, width of 83.7 mm, and length of 11.02 mm make it suitable for compact mounting spaces in electrical control panels.

6 A maximum load current capacity suitable for various industrial loads. Loads up to 600 V AC compatible with high-voltage applications. DIN rail mounting simplifies installation and panel integration. Input DC voltage range between 4V and 32V offers wide compatibility.

Built-in heatsink enhances durability by managing thermal dissipation. Visual input status indicator aids quick troubleshooting. Silent operation benefits noise-sensitive environments. IP20 rated compact modular housing for protection and ease of use.

Complies with RoHS directives for environmental safety. Robust operation in temperature ranges from -30°C up to 80°C.

This Solid State Relay is ideal for industrial automation, electrical control panels, manufacturing equipment, HVAC applications, and other demanding environments requiring reliable contactless relay switching. Explore the comprehensive Schneider Electric product range for enhanced automation and control solutions on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum load voltage for this model is 600V AC, allowing it to support high-voltage applications.

This solid state relay operates with an input control voltage range from 4V to 32V DC, providing flexibility in control interfaces.

The maximum load current capacity of this relay is 6 amperes, making it suitable for various industrial loads.

It features DIN rail mounting, which simplifies installation and integration into electrical control panels.

This relay operates reliably within a temperature range of -30°C to 80°C, accommodating various environmental conditions.

The relay has an IP20 rating, providing basic protection against dust and accidental contact.

It features an SCR output type, suitable for AC control applications.

The contact configuration is SPST, which allows for simple on/off switching operations.

Yes, it has a built-in visual input status indicator that aids in quick status verification during installation and maintenance.

The off-state leakage current is minimal at 0.1 mA, supporting efficient low-loss operation.

This solid state relay is manufactured in Mexico, ensuring compliance with RoHS standards for environmental safety.

It is ideal for industrial automation, electrical control panels, manufacturing equipment, and HVAC applications requiring reliable contactless switching.
