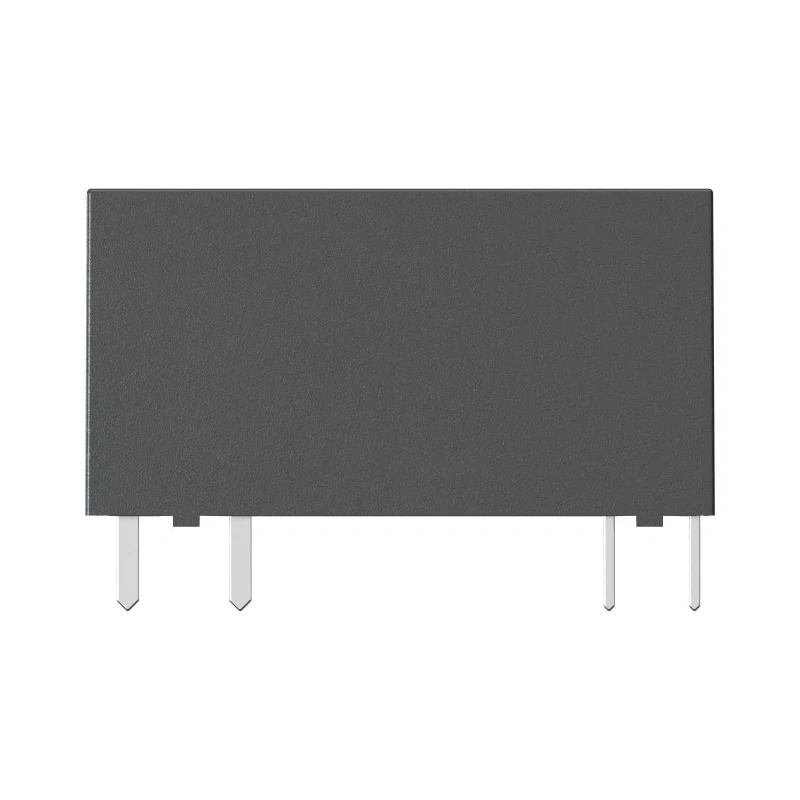

Schneider Electric Harmony Relay Series Solid State Relay, 2 A Load, 280 V AC Load, 30 V DC Control SSL1A12BDR

Schneider Electric SSL1A12BDR is a Harmony Relay Series Solid State Relay delivering reliable and silent switching for industrial and commercial applications. This solid state relay supports a maximum load current of 2 A, suitable for loads with voltages ranging from 24 V to 280 V AC. It features a control voltage range of 15 V to 30 V DC, making it compatible with various control circuits.

The relay's compact design includes PCB terminals and a slim profile of 5 mm width and 28 mm length, enabling efficient space utilization in control cabinets and panel boards. The device uses an SCR output type with random voltage switching functionality, which is optimal for handling inductive loads and high switching frequencies.

Operating reliably within a temperature range from -20°C to 80°C, the SSL1A12BDR is resistant to shock, vibration, and pollution, conforming to industry standards UL, CSA, and CE. Its off-state leakage current is minimal at 4 mA, paired with a low capacitance of 1.5 pF, ensuring low energy losses and stable operation.

This solid state relay is designed with a single pole single throw (SPST) contact configuration and is well-suited for industrial automation, manufacturing processes, HVAC controls, and other electrical control systems requiring silent, long-lasting switching solutions without mechanical wear.

Compact and space-saving PCB terminal relay design. Silent operation with no moving parts for long service life. Random voltage switching suitable for inductive loads. Wide operating temperature range for harsh environments.

High resistance to shock, vibration, and contaminants with IP67 rating. Conforms to UL, CSA and CE safety standards. Ideal for industrial control panels and automation systems.
