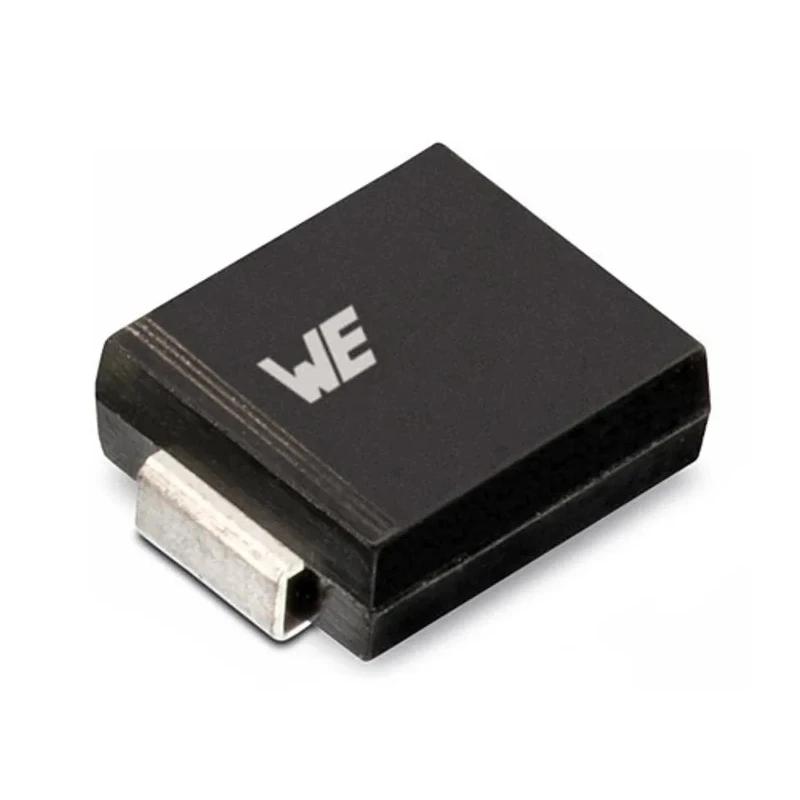

Wurth Elektronik 1-Element Uni-Directional TVS Diode 1.5 kW, 2-Pin DO-214 824540241

Wurth Elektronik 824540241 is a 1-element uni-directional transient voltage suppression (TVS) diode engineered for peak pulse power dissipation of 1.5 kW. The device is housed in a compact DO-214 surface mount package, featuring a reliable single diode configuration optimized for protecting sensitive electronic circuitry against transient voltage spikes.

Designed with a minimum breakdown voltage of 28.1 V and a clamping voltage of 38.9 V, this diode efficiently clamps transient voltages, thereby safeguarding electronics from damage caused by overvoltage conditions. It supports a maximum peak pulse current of 38.6 A, which ensures substantial surge handling capability with a fast response time owing to its glass passivated junction construction.

The diode operates effectively across a wide temperature range from -65°C to 150°C, making it suitable for demanding industrial environments. Its compact size (6.86 mm length x 5.9 mm width x 2.34 mm height) allows easy integration into space-constrained PCB layouts, particularly in power supply circuits and protection modules.

This model features a 2-pin DO-214 package type designed for surface mounting, facilitating automated assembly processes and enhancing manufacturing efficiency. With a maximum reverse leakage current of only 1 μA, the diode ensures minimal power losses during standard operation.

Single element uni-directional configuration ensures focused transient voltage protection. Compact DO-214 surface mount package enables versatile PCB integration. Min breakdown voltage at 28.1 V safeguards against overvoltage.

Peak pulse power rating of 1.5 kW provides robust surge current absorption. Wide operating temperature range from -65°C up to 150°C suits industrial conditions. Glass passivated junction offers stable electrical characteristics and reliability.

Minimal reverse leakage current reduces standby power consumption. Dimensions: 6.86 mm (L) x 5.9 mm (W) x 2.34 mm (H) for compact design requirements.

This TVS diode is ideal for applications in electronic equipment requiring effective transient overvoltage protection including power supplies, communication devices, automotive electronics, and industrial control systems. Its performance characteristics align with the needs of manufacturers and designers aiming to enhance circuit protection and longevity.
