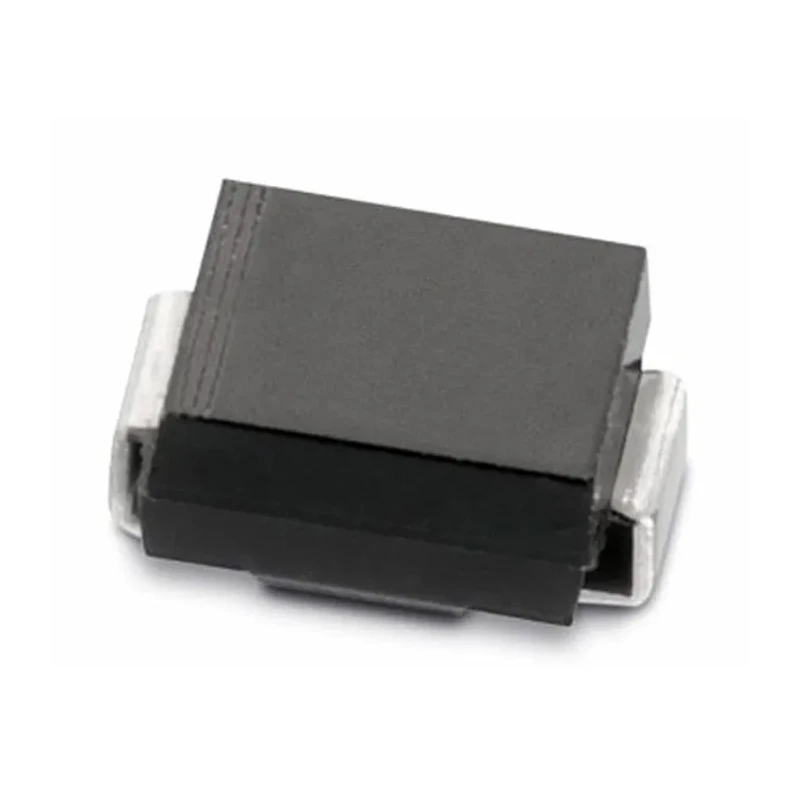

Wurth Elektronik 1-Element Uni-Directional TVS Diode 600W 2-Pin Surface Mount DO-214 Package 824520241

Wurth Elektronik 824520241 1-Element Uni-Directional TVS Diode is a robust transient voltage suppressor capable of handling peak pulse power dissipation up to 600 W. Packaged in a low-profile DO-214 surface mount package, this diode provides effective protection against voltage surges in electronic circuits.

This single-element dioded device is designed for uni-directional operation, ensuring reliable voltage clamping with a minimum breakdown voltage of 28.1 V and a maximum clamping voltage of 38.9 V. It features a maximum operating temperature of 150°C and minimum operating temperature of -65°C, supporting a wide range of industrial and commercial environments.

The diode’s fast response time and glass passivated junction technology make it suitable for protecting sensitive electronics from transient voltage spikes. With a maximum peak pulse current rating of 15.5 A and a low maximum reverse leakage current of 1 µA, it offers efficient and dependable surge suppression.

Its compact DO-214 package dimensions of 4.32 mm (length) × 3.62 mm (width) × 2.3 mm (height) support modern surface mount assembly processes, optimizing PCB space without compromising performance.

This model, 824520241, belongs to the WE-TVSP series by Wurth Elektronik and is manufactured in China. It does not have any specific automotive standards but is widely applicable in electronic components, power systems, semiconductors, and industrial protection circuits.

Single diode configuration designed for uni-directional voltage suppression. Peak pulse power dissipation of 600 W ensures high surge protection. Minimum breakdown voltage of 28.1 V and clamping voltage of 38.9 V provide efficient overvoltage clamping.

Compact surface mount DO-214 package measuring 4.32 mm length, 3.62 mm width, and 2.3 mm height. Operates reliably in a wide temperature range from -65°C to 150°C. Maximum peak pulse current of 15.5 A to handle high transient currents.

Fast response time with glass passivated junction technology. Low maximum reverse leakage current of 1 µA for energy efficiency. Ideal for protecting sensitive electronics from voltage spikes and surges. Manufactured in China with series code WE-TVSP.
