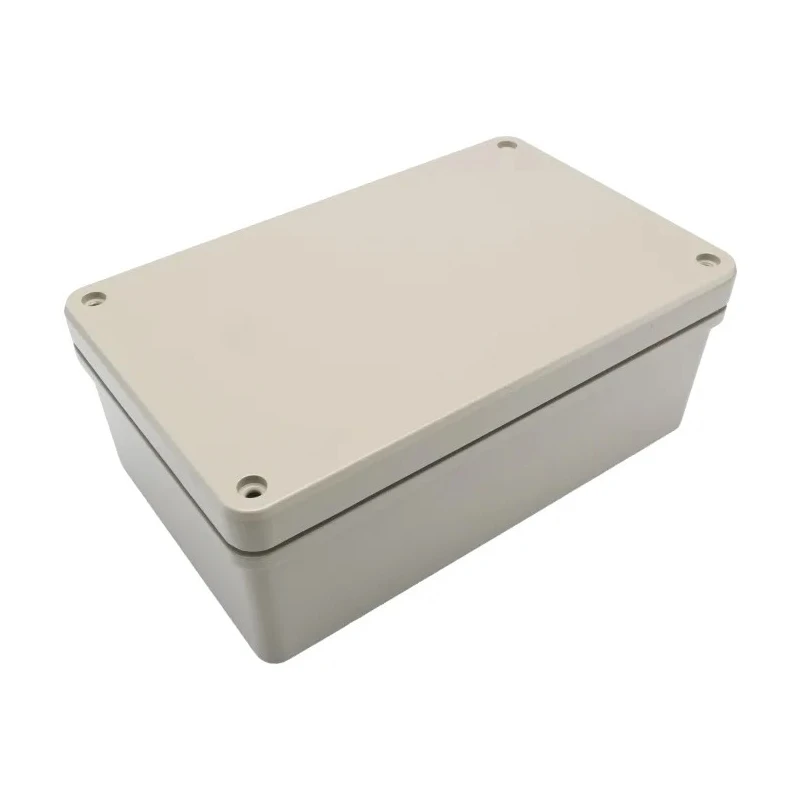

ROLEC Conform Series Die Cast Aluminium Enclosure Grey Lid IP66, IP67 100 mm x 266 mm x 166 mm IP66

ROLEC IP66 Die Cast Aluminium Enclosure model IP66 is a precision-engineered general purpose electrical enclosure designed with die cast aluminium body and grey RAL7032 coloured lid, measuring 100 mm in height, 266 mm in length, and 166 mm in width. The enclosure offers robust protection, meeting IP66 and IP67 ratings, making it dust tight and protected against heavy seas or powerful jets of water.

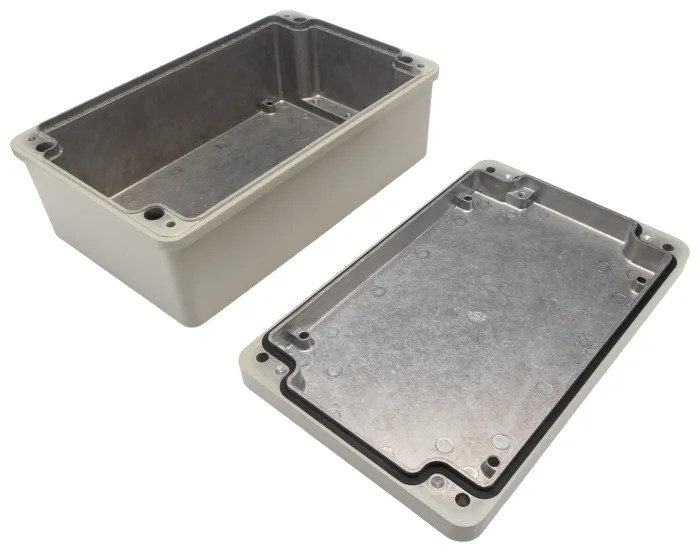

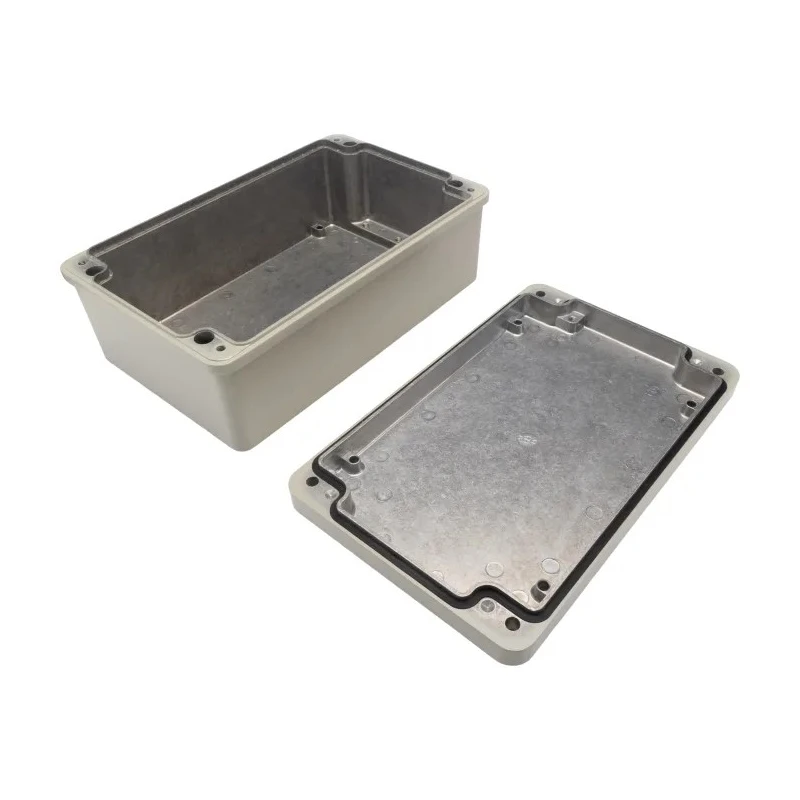

Constructed with a baked enamel finish and overlapping tongue and groove design, this enclosure provides high-level RFI shielding to protect sensitive electronics from electromagnetic interference. A neoprene sealing gasket ensures environmental protection, with captive screws securing the lid firmly outside the gasket area to maintain seal integrity.

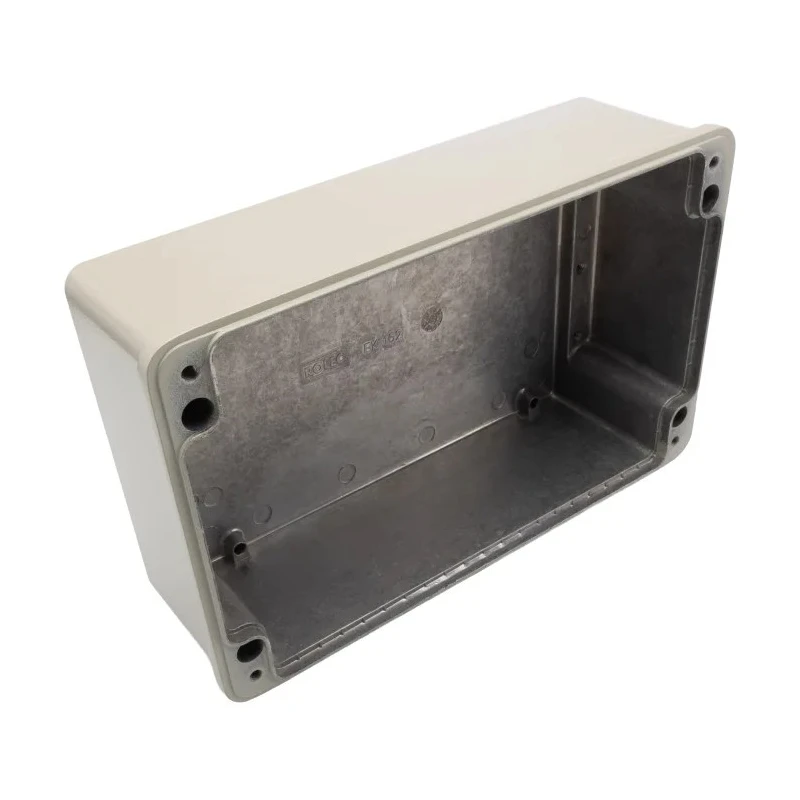

The internal feature includes threaded screw bosses enabling the mounting of various PCBs and earth tags, supplied with copper plated screws for corrosion resistance. The precast lid and base incorporate a tooth system to ensure continuous electrical contact for shielding effectiveness. The enclosure’s body is shielded and designed to perform in temperature ranges from -40 to +80°C.

Typical industrial applications include test and measurement instrumentation, medical devices, transportation equipment, industrial controls, and lighting installations. This enclosure is ideal for both indoor and outdoor environments requiring high protection standards and electromagnetic shielding.

Durable die cast aluminium body and grey lid provide lasting strength. IP66, IP67 rated for dust and water ingress protection. High RFI shielding via baked enamel and tongue and groove design. Neoprene gasket ensures tight environmental seal.

Internal mounting points for PCBs with supplied copper plated screws. Captive screws included for secure lid attachment outside gasket area. Operates safely in temperatures between -40 and +80 degrees Celsius. Precast lid and base tooth system maintain continuous RFI contact.

Suitable for diverse industrial and commercial control applications.

This ROLEC Conform Series enclosure combines reliability, protection, and versatility, making it an essential component for various electrical and electronic projects. Explore EnvMart’s range of high-quality electrical enclosures for additional options matching your industrial and automation requirements.
