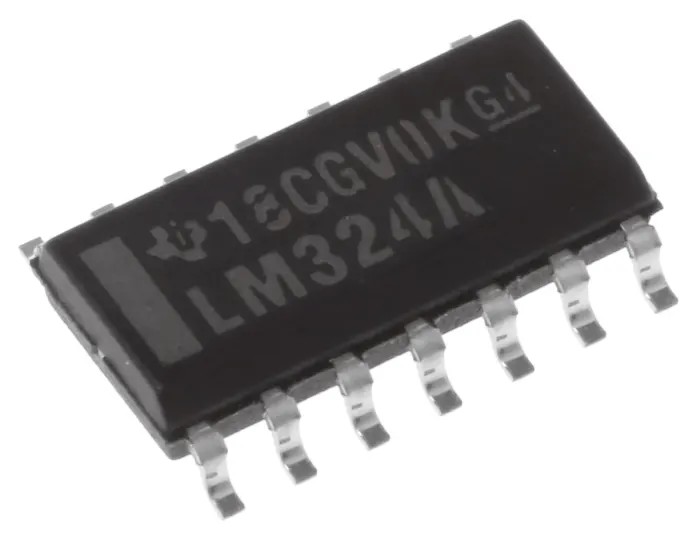

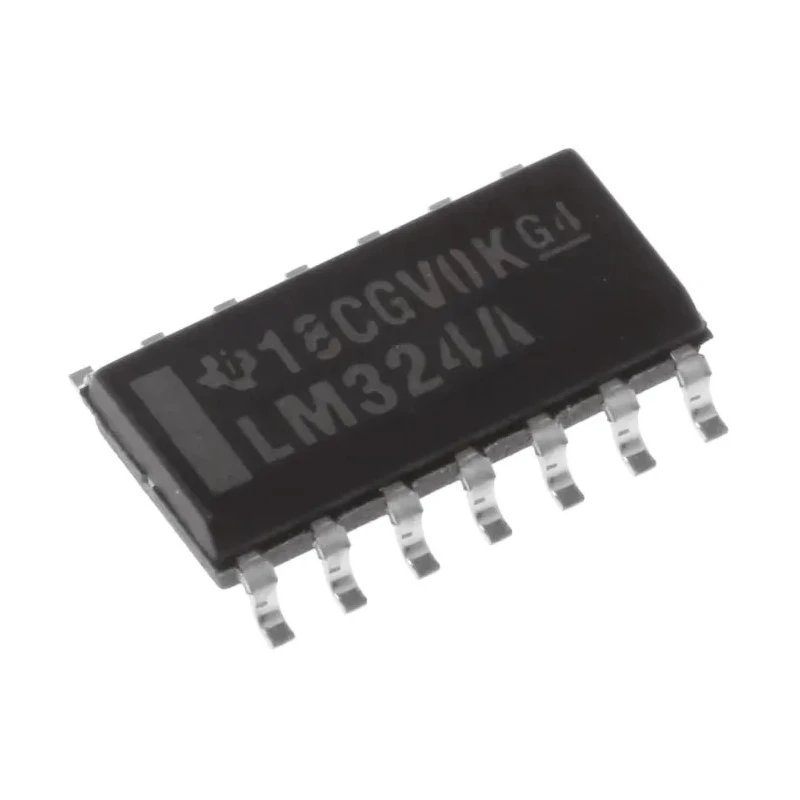

Texas Instruments Operational Amplifier 1.2 MHz Gain Bandwidth Product 14-Pin SOIC Surface Mount LM324AD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | LM324AD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM324A |
| Output Current | -10mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | EN 61340-5-1 |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | -200 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 75 nA |
| LM324AD Texas Instruments, Operational Amplifier, 1.2 MHz, 14-Pin 30V SOICBrand | Texas Instruments |
Key Features
- Features four independent amplification channels for versatile use.
- Surface mount SOIC package with 14 pins for compact PCB integration.
- Operates within 5V to 30V supply voltage range for flexible power design.
- Input offset voltage is nominally 5 mV, ensuring precise performance.
- Slew rate of 0.5 V/μs supports moderate speed signal amplification.
- Designed for operating temperatures from 0°C to 70°C, suitable for various environments.
- Complies with EN 61340-5-1 standard for electronic component safety.
- Physical dimensions approximately 8.65 mm length, 3.91 mm width, and 1.58 mm height.
Product Description
Texas Instruments LM324AD is a general-purpose operational amplifier optimized for industrial and electronic applications requiring quadruple amplification channels. This 14-pin SOIC surface mount package offers a gain bandwidth product of 1.2 MHz, enabling efficient signal amplification in circuits.
Designed to operate at a minimum supply voltage of 5V and a maximum supply voltage of 30V, the LM324AD provides flexibility for diverse power configurations. It has a typical input offset voltage of 5 mV and an input offset current of 75 nA, ensuring accuracy in signal processing tasks.
The amplifier features a slew rate of 0.5 V/μs and output current capability of -10 mA, sufficient for driving moderate loads. It is specified for operation within a temperature range of 0°C to 70°C, making it suitable for standard industrial environments.
Installed in a compact SOIC package measuring 8.65 mm by 3.91 mm by 1.58 mm, it supports surface mounting on PCBs for streamlined manufacturing. It complies with the EN 61340-5-1 standard ensuring component safety against electrostatic discharge.
Four independent amplification channels for multi-signal processing. Low power consumption ideal for battery operated and low power circuits. Wide supply voltage range from 5 V to 30 V increases design flexibility. Standard SOIC package for ease of integration into existing designs.
Typical input bias current at -200 nA for enhanced signal fidelity. Reliable performance from 0°C to 70°C industrial temperature range. Standard compliance assures quality and safety in electronic designs. Compact dimensions fit space-constrained PCB layouts.
This operational amplifier is widely used in instrumentation, control systems, signal conditioning, and other industrial electronics where reliable, general-purpose amplification is required.
Explore more Texas Instruments Operational Amplifiers and electronic components at EnvMart for comprehensive selection and competitive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.2 MHz, enabling efficient signal amplification in various circuits.
It operates within a supply voltage range of 5V to 30V, providing flexibility for different power configurations.
This operational amplifier features four independent amplification channels, allowing for multi-signal processing.
The dimensions of this model are approximately 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height.
The nominal input offset voltage is 5 mV, which helps ensure accurate performance in signal processing tasks.
It is specified for operation within a temperature range of 0°C to 70°C, making it suitable for standard industrial environments.
The slew rate is 0.5 V/μs, which supports moderate speed signal amplification.
The LM324AD has an output current capability of -10 mA, sufficient for driving moderate loads in various applications.
This operational amplifier is housed in a 14-pin SOIC surface mount package, facilitating compact PCB integration.
It complies with the EN 61340-5-1 standard, ensuring safety against electrostatic discharge for electronic components.
The typical input bias current is -200 nA, which enhances signal fidelity during operation.
This operational amplifier is widely used in instrumentation, control systems, and signal conditioning in industrial electronics.
