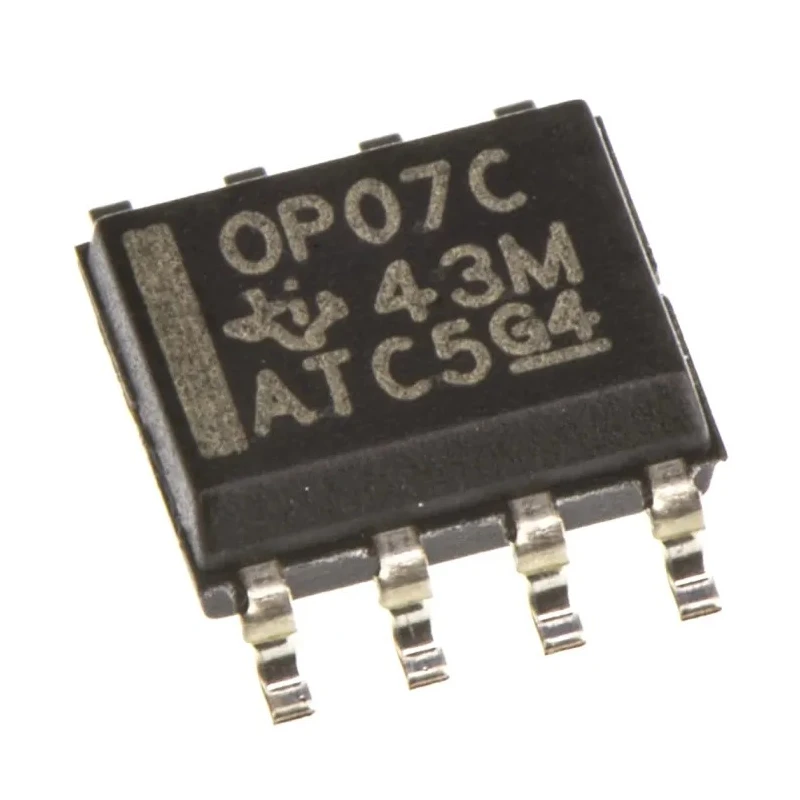

Texas Instruments Precision Operational Amplifier SOIC 8-Pin 22V 600 kHz OP07CD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OP07CD |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OP07 |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 600kHz |
| Input Bias Current | ±14 nA |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 8 nA |
Key Features
- Single channel operational amplifier in a compact surface mount SOIC package.
- Operating voltage from -22V to 22V for flexibility in design.
- Gain bandwidth product of 600 kHz delivering precise amplification.
- Low input offset voltage of 250 μV ensures high accuracy.
- Wide operating temperature range of 0°C to 70°C for reliable performance.
- Low input bias current of ±14 nA to minimize error in high resistance circuits.
- Slew rate of 0.3 V/μs suitable for moderate speed signal processing.
- Designed for demanding industrial, laboratory, and electronic applications requiring stability and low noise.
Product Description
Texas Instruments OP07CD is a high precision operational amplifier featuring a single channel in an 8-pin SOIC surface mount package. It operates over a voltage range of ±22V with a gain bandwidth product of 600 kHz, providing stable and predictable amplification performance essential in sensitive electronic circuits.
This device features a low input offset voltage of 250 μV and an input bias current of ±14 nA, making it ideal for use in circuits with high resistance values requiring high accuracy. The slew rate of 0.3 V/μs supports moderate speed signal processing.
The amplifier has a compact form factor with dimensions 4.9 mm length, 3.91 mm width, and 1.58 mm height, suitable for dense PCB layouts in industrial, laboratory, and manufacturing environments.
With an operating temperature range from 0°C to 70°C and no specific automotive or industrial certifications, it is designed primarily for precision tasks in electronic design, test equipment, and instrumentation.
Single channel, 8-pin SOIC surface mount package. Operating voltage: -22 V to 22 V. Gain bandwidth product: 600 kHz for precision. Input offset voltage: 250 μV for accuracy. Input bias current: ±14 nA minimizes errors. Slew rate: 0.3 V/μs suitable for moderate frequencies.
Operating temperature: 0°C to 70°C for stability. Compact dimensions: 4.9 x 3.91 x 1.58 mm for space-saving design.
Texas Instruments OP07 series amplifiers are widely used in industrial measurement equipment, laboratory instruments, and precision control applications where stable and low-noise performance is critical. These high-quality semiconductor amplifiers contribute to reliable and accurate device operation.
Explore a comprehensive range of Operational Amplifiers and precision semiconductor components in the Electronics & Electricals category on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 600 kHz, providing stable and predictable amplification performance.
It operates over a voltage range from -22V to 22V, allowing for flexibility in design applications.
This operational amplifier has compact dimensions of 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, suitable for dense PCB layouts.
The input offset voltage is 250 μV, which contributes to its high accuracy in sensitive applications.
The input bias current is ±14 nA, minimizing errors in high resistance circuits.
The slew rate is 0.3 V/μs, making it suitable for moderate speed signal processing tasks.
It operates within a temperature range of 0°C to 70°C, ensuring stability in various conditions.
This operational amplifier features a single channel design, making it suitable for specific applications requiring one amplification path.
It comes in a compact SOIC (Small Outline Integrated Circuit) package, which is ideal for surface mounting.
This model is designed for demanding industrial, laboratory, and electronic applications that require stability and low noise performance.
The input offset current is 8 nA, which is important for maintaining accuracy in precision applications.
There are no specific automotive or industrial certifications mentioned for this operational amplifier, indicating it is primarily designed for precision tasks in electronic design and instrumentation.
