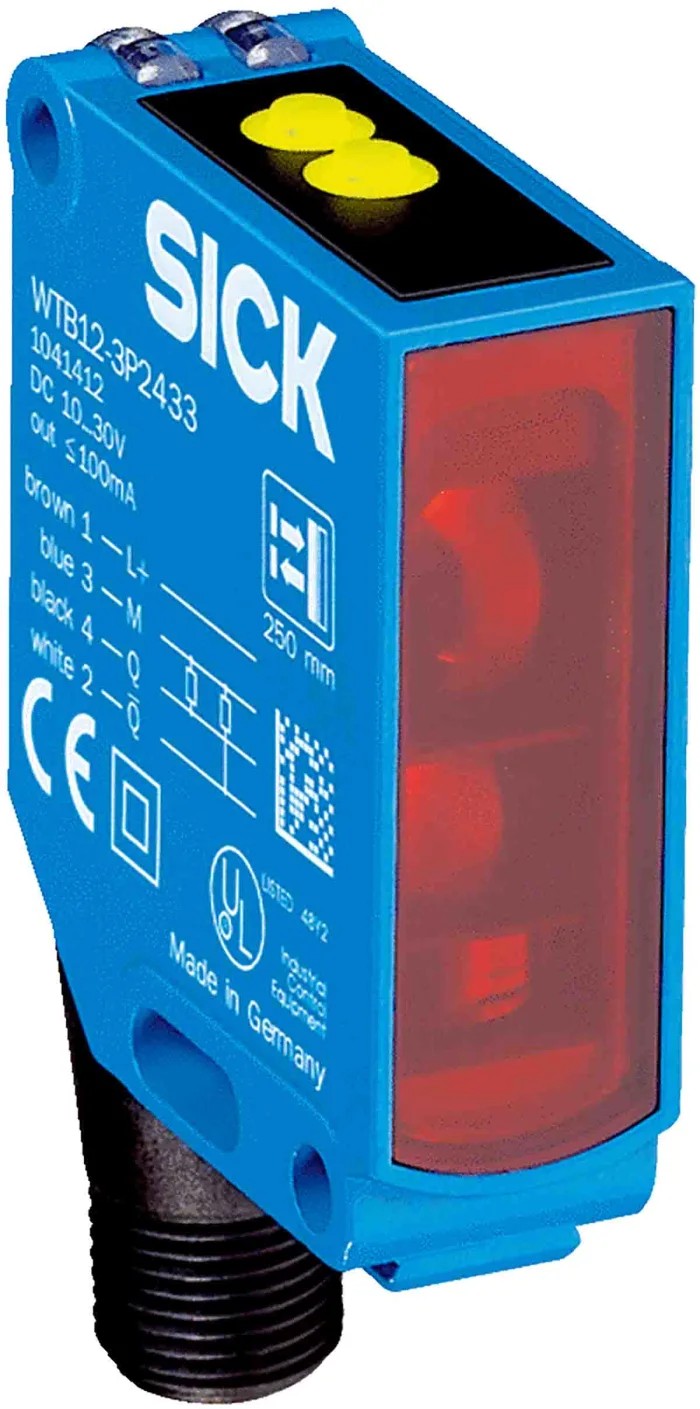

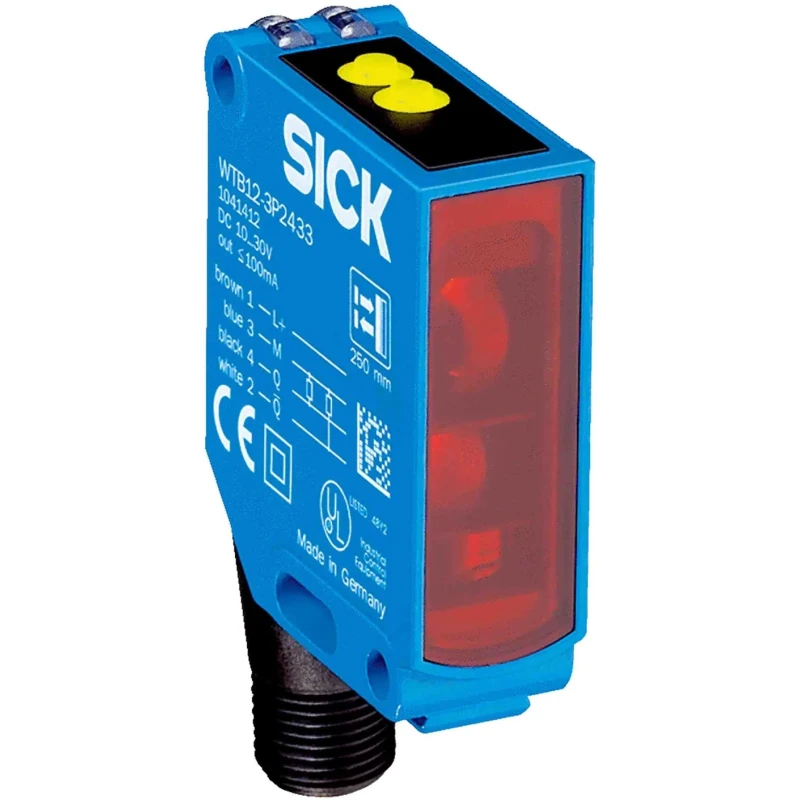

SICK Diffuse Photoelectric Sensor, Block Sensor, 350 mm Detection Range, PNP Output, IP67 IP66 Metal Housing WTB12-3P2433
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 330μs |
| Light Source | LED |
| Detection range | 350 mm |
| Model | WTB12-3P2433 |
| IP Rating | IP67, IP66 |
| Mount Type | Screw |
| Housing Material | Metal |
| Output type | PNP |
| Series | W12-3 |
| Maximum Operating Temperature | 60°C |
| Enclosure Rating | IP66 and IP67 |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Diffuse |
| Ambient Operating Temperature | - 40 °C ... +60 °C |
| Terminal type | 4-Pin M12 Male Connector |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | UL File No. NRKH.E181493 & NRKH7.E181493 |
| Sensor Style | Block |
Key Features
- Equipped with a PNP output type for reliable signal switching.
- Features a 4-pin M12 male connector interface for easy wiring.
- Constructed with metal housing for durable and robust performance.
- Protection rating of IP67 and IP66 for excellent resistance to dust and water.
- Operates within a temperature range from -40°C to 60°C.
- Maximum DC voltage rating of 30 V and maximum current of 100 mA.
- Utilizes an LED light source with a wavelength of 640 nm.
- Response time of 330 microseconds and switching frequency of 1,500 Hz.
Product Description
SICK WTB12-3P2433 Diffuse Photoelectric Sensor is a high-quality block sensor designed for precise object detection in automation and control gear applications. Featuring a 350 mm detection range, this sensor uses a PNP output type coupled with a 4-pin M12 male connector interface, facilitating seamless integration into various industrial setups.
The sensor is constructed with a durable metal housing, ensuring robust performance in demanding environments. It boasts ingress protection ratings of IP67 and IP66, providing excellent resistance against dust and water ingress, which enhances its reliability for harsh industrial conditions.
Operating within a wide ambient temperature range from -40°C to 60°C, the sensor maintains consistent performance across diverse environmental conditions. The LED light source operates at a wavelength of 640 nm, offering effective diffuse detection with background suppression. Its response time of 330 microseconds and switching frequency of 1,500 Hz make it suitable for fast industrial automation tasks.
The product includes a screw mount type allowing secure and stable positioning. It complies with safety and performance standards including UL File No. NRKH.E181493 & NRKH7.E181493 and carries the hazardous area certification EN IEC 63000, underscoring its suitability for safe industrial use in regulated environments.
This photoelectric sensor is ideal for applications in manufacturing, industrial automation, robotics, packaging, and material handling systems where precise detection and reliability are critical.
Equipped with a PNP output for reliable electrical signaling. Utilizes a 4-pin M12 male connector enabling quick and secure connections. Durable metal housing designed for industrial environments. IP66 and IP67 rated for dust and water protection.
Wide operating temperature range from -40°C to 60°C ensures use in varied conditions. Fast response time of 330 μs and switching frequency of 1,500 Hz support rapid detection. Includes screw mounting for stable installation.
Complies with UL and EN IEC 63000 hazardous area certifications. Background suppression capability enhances detection accuracy. Explore the broad catalog of Photoelectric Sensors at EnvMart to find precise and reliable components for your automation and industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 350 mm.
It features a PNP output type for reliable signal switching.
This sensor has ingress protection ratings of IP67 and IP66, providing excellent resistance to dust and water.
The maximum operating temperature for this sensor is 60°C.
The response time of this sensor is 330 microseconds.
It utilizes a 4-pin M12 male connector interface for easy wiring.
The minimum operating temperature is -40°C.
The maximum current rating for this sensor is 100 mA.
It uses an LED light source with a wavelength of 640 nm.
The sensor includes a screw mount type for secure installation.
It complies with the hazardous area certification EN IEC 63000.
This sensor is suitable for applications in manufacturing, industrial automation, robotics, packaging, and material handling systems.
