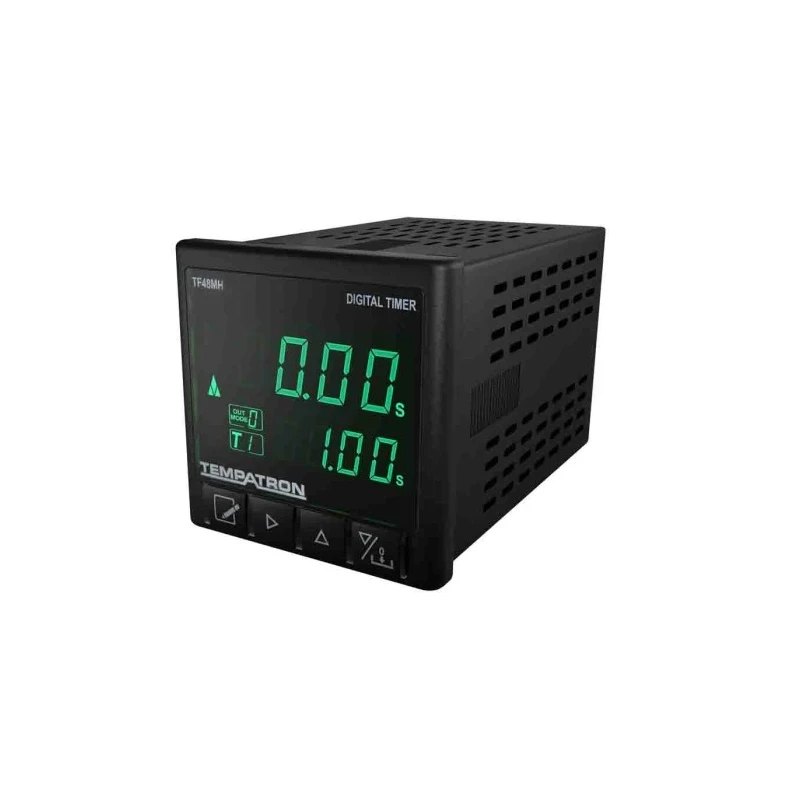

Tempatron TF48 Series Multifunction Panel Timer Relay 2-Contact SPDT SPST 90 to 250 V AC 99.99 s to 9999 h 13-Function

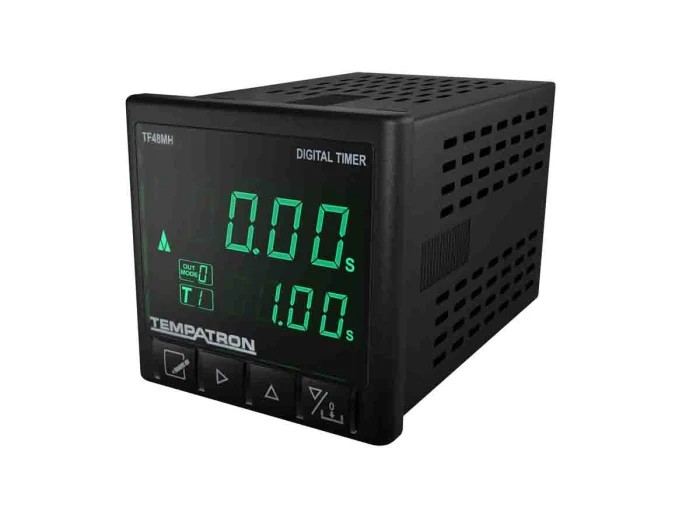

The Tempatron TF48MH is a high-performance multifunction panel timer relay designed for industrial automation and control applications. It operates from a supply AC voltage range of 90 to 250 V AC, making it highly versatile for various power systems.

The timer offers 13 programmable timing functions and supports time delay settings ranging from 99.99 seconds to 9999 hours, enabling precise control of operations. The relay includes two contacts configured as SPDT (Single Pole Double Throw) and SPST (Single Pole Single Throw), which can be programmed as timed or instantaneous outputs to suit complex switching requirements.

This device is mounted easily onto panels with plug-in terminals and is rated IP65 to ensure robust protection against dust and water, suitable for harsh industrial environments. The relay operates reliably within the temperature range of 0°C to 50°C.

The dual 4-digit green LCD display allows operators to monitor timing parameters clearly. Additionally, the built-in EEPROM memory retains user settings for a minimum of 10 years, safeguarding configuration data against power interruptions.

Applications for the TF48MH timer relay include industrial control panels, process automation systems, signal conditioning, and timing functions across manufacturing and production facilities. The unit adheres to RoHS environmental standards and is manufactured in the United Kingdom, ensuring quality and regulatory compliance.

The relay supports a wide supply AC voltage range from 90 to 250 V AC. Time delay settings span 99.99 seconds to 9999 hours. Features SPDT and SPST contact configurations for flexible switching. Panel mount type with plug-in terminals allows easy installation.

IP65 rating provides dust and water protection for industrial use. Operating temperature range is 0°C to 50°C suitable for varied environments. Dual 4-digit green LCD display for clear timer monitoring. EEPROM memory retains timer settings for at least 10 years during power loss.

RoHS compliant, manufactured in the United Kingdom. Explore EnvMart’s Electronics & Electricals > Relays & Contactors > Timer Relays for more reliable panel Timer Relay options from trusted brands.
