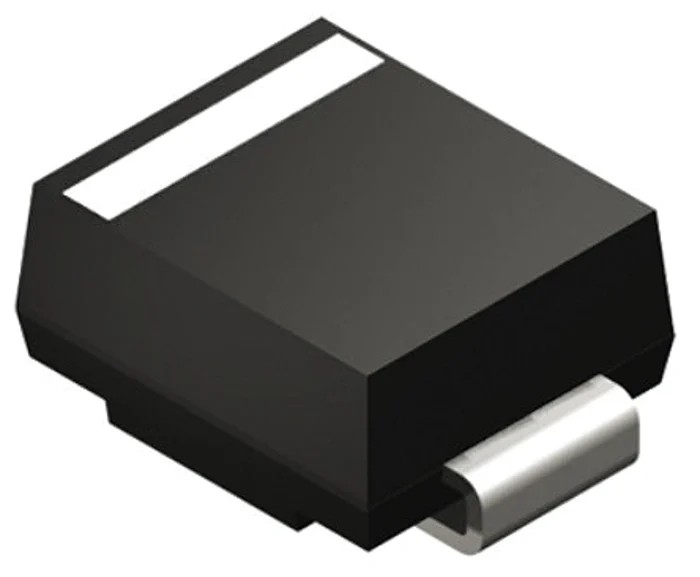

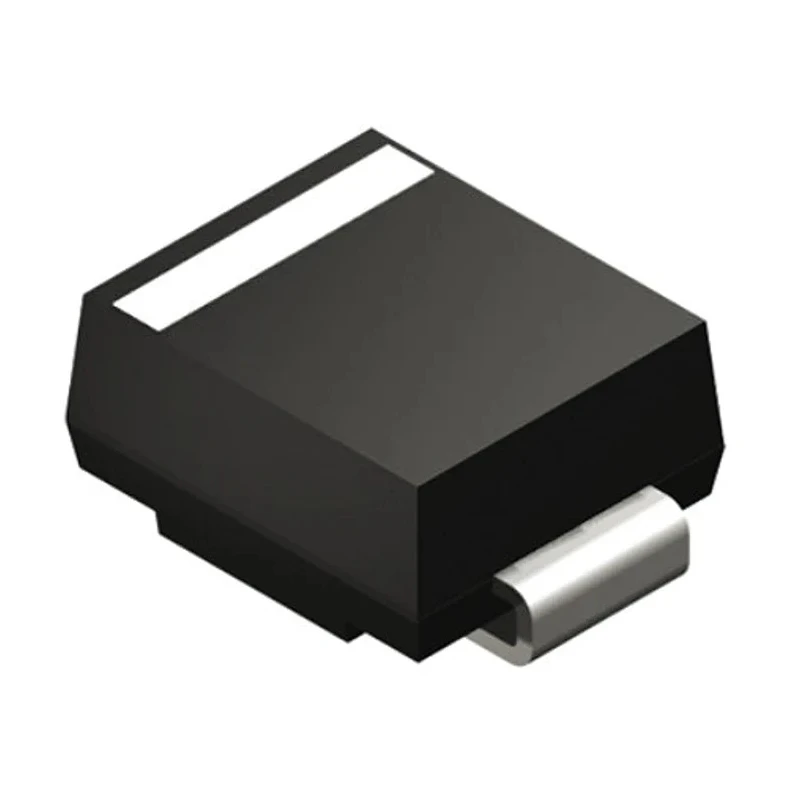

HY Electronic Corp Surface Mount Schottky Diode 60 V 5 A 2-Pin DO-214AA SS56B
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.23mm |
| Length | 4.7mm |
| Model | SS56B |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 700mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- Surface mount package type DO-214AA ensures compact installation.
- Maximum continuous forward current rating of 5 A for high current applications.
- Peak reverse repetitive voltage of 60 V offers reliable protection.
- Peak non-repetitive forward surge current rated at 150 A for transient conditions.
- Low maximum forward voltage drop of 700 mV for efficient conduction.
- Operating temperature range from -55°C to 150°C suitable for diverse environments.
- Compact dimensions with length 4.7 mm, width 3.94 mm, and height 2.23 mm.
- 2-pin diode configuration with polarity indicated by cathode band.
Product Description
HY Electronic Corp SS56B is a surface mount Schottky barrier rectifier diode featuring a 2-pin DO-214AA plastic package designed for efficient electronic circuit integration. It is capable of handling a maximum continuous forward current of 5 amperes and can withstand a peak reverse repetitive voltage of 60 volts, making it suitable for medium power rectification tasks.
The diode benefits from an epitaxial construction with a metal-semiconductor junction guarded design, delivering a low forward voltage drop of 700 millivolts which improves efficiency and reduces heat generation.
Engineered to operate reliably within the minimum temperature of -55°C and maximum temperature of 150°C, it supports a range of industrial and commercial electronics applications. Its compact dimensions (4.7 mm length, 3.94 mm width, and 2.23 mm height) enable space-saving implementations.
The device includes a cathode band marking to denote polarity, and the moulded plastic case meets UL 94V-0 flammability standards for improved safety.
This Schottky diode is widely used in free-wheeling circuits, inverter designs, and polarity protection to prevent damage from reverse voltage and transient surges. The SS56B provides reliable operation with a peak non-repetitive forward surge current rating of 150 A.
Surface mount DO-214AA package for space-efficient PCB layouts. Rated for continuous forward current up to 5 A and peak reverse voltage of 60 V. Low forward voltage drop ensures less conduction losses. Operates across a wide temperature range from -55°C to 150°C.
Moulded plastic encapsulation complies with UL 94V-0 flammability. Ideal for power rectification, free-wheeling, inverters, and polarity protection. Compact size with length 4.7 mm, width 3.94 mm, height 2.23 mm. Polarity clearly indicated with cathode band for correct installation.
Discover the full range of Schottky Diodes and rectifiers at EnvMart for your electronic component sourcing needs.
