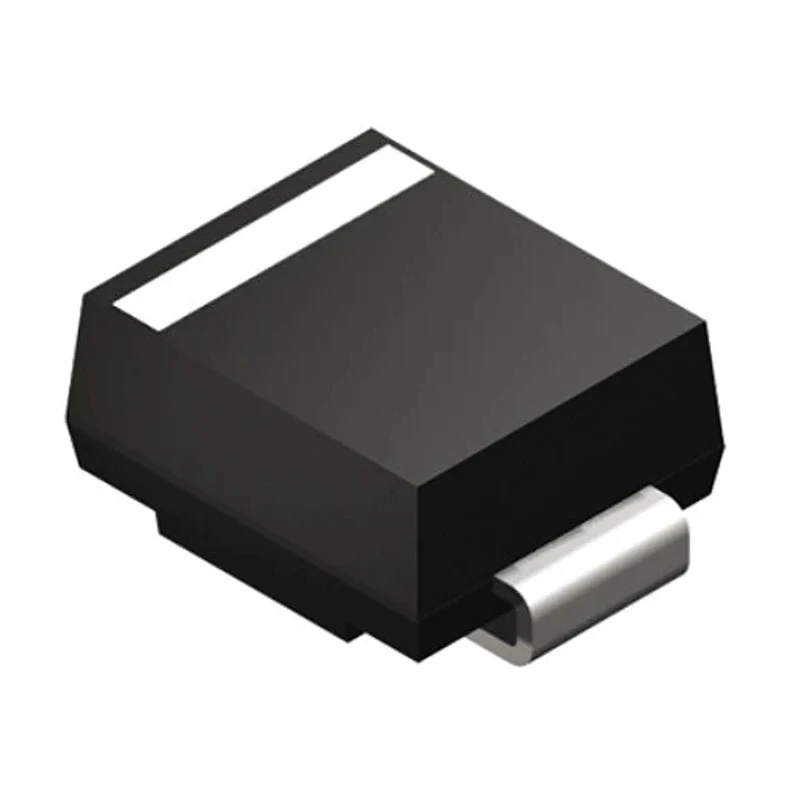

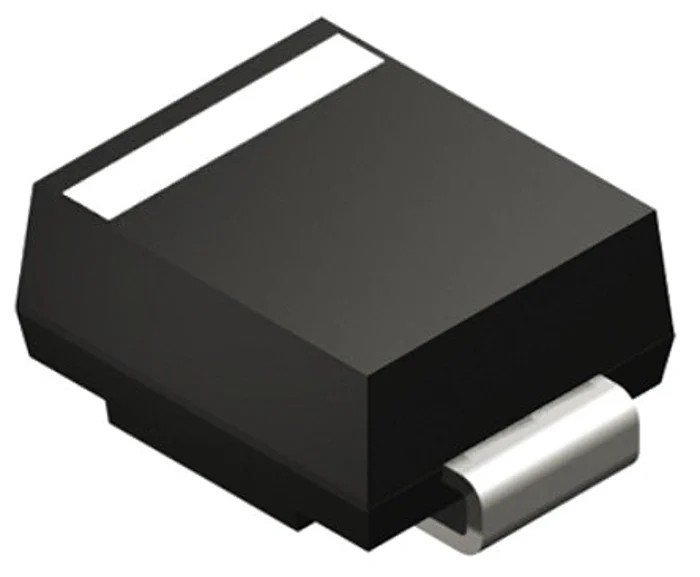

HY Electronic Corp 60 V 5 A Surface Mount Schottky Diode DO-214AA Package SS56B
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.23mm |
| Length | 4.7mm |
| Model | SS56B |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 700mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- Maximum continuous forward current of 5 amperes ensures high current handling capability.
- Peak reverse repetitive voltage rating of 60 volts for reliable voltage blocking.
- Low maximum forward voltage drop of 700 millivolts reduces power loss.
- High surge current capacity with 150 amperes peak non-repetitive forward surge current.
- Compact surface mount DO-214AA plastic package with UL 94V-0 flame retardant classification.
- Operating temperature range from -55°C to 150°C for robust thermal performance.
- Polarity clearly indicated by cathode band for easy identification during assembly.
- Single diode configuration with 2 pins suitable for PCB mounting applications.
Product Description
HY Electronic Corp SS56B is a high-performance Schottky barrier rectifier diode designed for surface mount applications. Packaged in a DO-214AA molded plastic case with flame retardant UL 94V-0 classification, this diode offers a maximum continuous forward current of 5 A and a peak reverse repetitive voltage of 60 V, making it ideal for high-efficiency rectification and polarity protection.
The diode features a low forward voltage drop of 700 mV, reducing power losses and improving overall efficiency in power supply circuits. It supports a peak non-repetitive forward surge current of 150 A, which allows it to withstand temporary high current bursts without damage.
This device operates reliably across a broad temperature range of -55°C to 150°C, suitable for demanding environments. Its polarity is easily determined by the cathode band marking, ensuring correct installation on printed circuit boards.
Applications for the SS56B diode include free-wheeling diodes in motor control circuits, inverter circuits, and polarity protection in power supplies. Its single diode configuration and surface mount form factor make it ideal for compact electronics in industrial, automotive, telecommunications, and power management systems.
Maximum continuous forward current of 5 amperes ensures high current handling capability. Peak reverse repetitive voltage of 60 volts for reliable voltage blocking. Low maximum forward voltage drop of 700 millivolts reduces power loss.
High surge current capacity with 150 amperes peak non-repetitive forward surge current. Compact surface mount DO-214AA plastic package with UL 94V-0 flame retardant classification. Operating temperature range from -55°C to 150°C for robust thermal performance.
Polarity clearly indicated by cathode band for easy identification during assembly. Single diode configuration with 2 pins suitable for PCB mounting applications. This Schottky diode is manufactured in China and complies with standard industrial quality expectations although no specific approvals are noted.
Explore more semiconductor components and Schottky Diodes on EnvMart for high quality and reliable electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 5 amperes, ensuring high current handling capability.
This diode has a peak reverse repetitive voltage rating of 60 volts, providing reliable voltage blocking.
The maximum forward voltage drop is 700 millivolts, which helps reduce power loss in circuits.
It supports a peak non-repetitive forward surge current of 150 amperes, allowing it to withstand temporary high current bursts without damage.
The diode has a height of 2.23 mm, a length of 4.7 mm, and a width of 3.94 mm.
It operates reliably within a temperature range of -55°C to 150°C, suitable for demanding environments.
Polarity is clearly indicated by a cathode band, which facilitates easy identification during assembly.
This diode is packaged in a DO-214AA molded plastic case with a UL 94V-0 flame retardant classification.
It features a single diode configuration with 2 pins, making it suitable for PCB mounting applications.
This diode is suitable for applications such as free-wheeling diodes in motor control circuits, inverter circuits, and polarity protection in power supplies.
The peak reverse current for this model is rated at 50 milliamperes.
This Schottky diode is manufactured in China and complies with standard industrial quality expectations.
