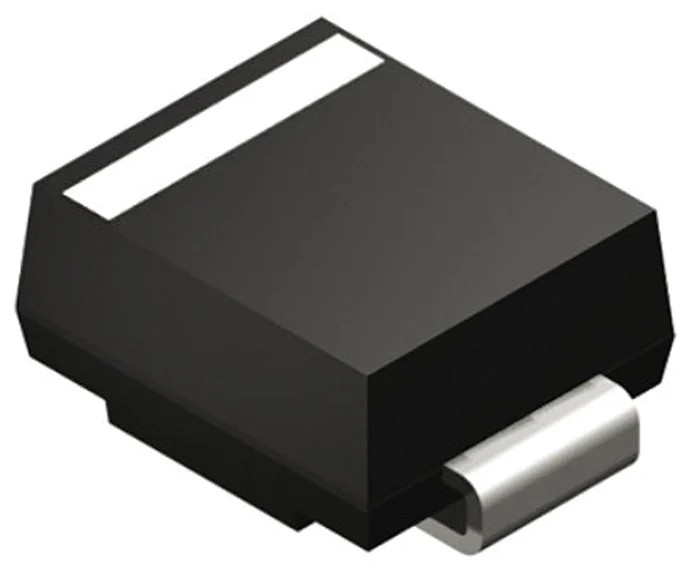

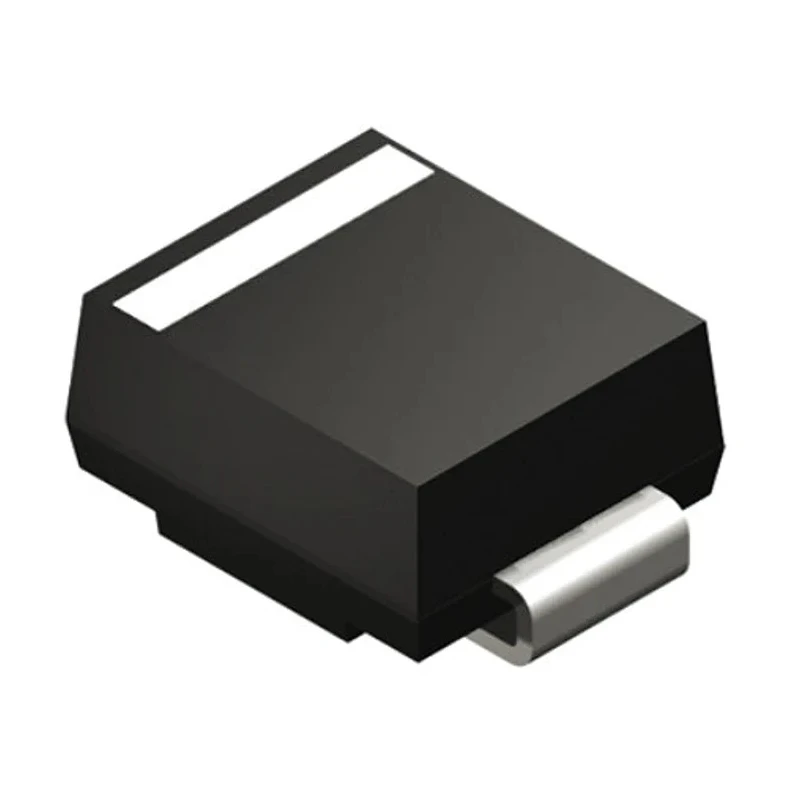

HY Electronic Corp 60 V 3 A Surface Mount Schottky Diode DO-214AA SS36B
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.23mm |
| Length | 4.7mm |
| Model | SS36B |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 700mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- Compact DO-214AA package suitable for surface mounting applications.
- Schottky barrier rectifier design ensures low forward voltage drop.
- High peak non-repetitive forward surge current rated at 80 A.
- Wide operating temperature range from -55°C to 150°C for industrial reliability.
- Polarity is indicated by a cathode band for easy installation.
- Single diode configuration with 2 pins for standard circuit integration.
- Materials meet UL 94V-0 flammability classification for safety.
- Ideal for applications including free-wheeling, inverters, and polarity protection.
Product Description
HY Electronic Corp SS36B is a surface mount Schottky diode designed for efficient rectification in electronic circuits. Featuring a DO-214AA package type, this diode supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 60 V, suitable for intermediate power applications.
Constructed using epitaxial technology with metal-semiconductor junction guarding, the SS36B ensures low forward voltage drop of 700 mV, improving energy efficiency in power conversion systems. The diode supports a peak non-repetitive forward surge current of 80 A and operates reliably across a wide temperature range from -55°C to 150°C.
Its molded plastic case meets UL 94V-0 flammability standards, providing enhanced safety features for industrial and commercial electronic assemblies. The polarity is clearly marked by a cathode band, facilitating correct orientation during PCB assembly.
This Schottky diode is a single diode configuration with 2 pins, making it compatible for applications such as free-wheeling diodes, inverter circuits, and polarity protection in DC power supplies. The compact dimensions (Length: 4.7 mm, Width: 3.94 mm, Height: 2.23 mm) allow integration into space-constrained environments.
Compact DO-214AA surface mount package size. Maximum forward current of 3 A ensures moderate power handling. Low forward voltage of 700 mV enhances efficiency. Wide temperature range of -55°C to 150°C enables use in harsh environments.
UL 94V-0 plastic case provides flame retardancy. Polarity marked by cathode band for easy identification. Applications include free-wheeling, inverters, and polarity protection for various electronic devices.
HY Electronic Corp SS36B is well suited for industrial, electronic component manufacturing, power supplies, and semiconductor applications. Explore a comprehensive selection of semiconductor diodes at EnvMart for enhanced electronic design and manufacturing solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the SS36B diode is 3 A.
The peak reverse repetitive voltage for the SS36B is 60 V.
The forward voltage drop of this model is 700 mV.
The dimensions of the SS36B are 4.7 mm in length, 3.94 mm in width, and 2.23 mm in height.
The operating temperature range for the SS36B is from -55°C to 150°C.
Polarity on the SS36B is indicated by a cathode band, facilitating easy installation.
The SS36B diode uses a DO-214AA package type suitable for surface mounting applications.
The peak non-repetitive forward surge current rating for the SS36B is 80 A.
The SS36B is a Schottky barrier rectifier designed for efficient rectification in electronic circuits.
The SS36B diode is constructed with a molded plastic case that meets UL 94V-0 flammability classification.
The SS36B is suitable for applications including free-wheeling, inverters, and polarity protection in DC power supplies.
The SS36B diode has a single diode configuration with 2 pins for standard circuit integration.
