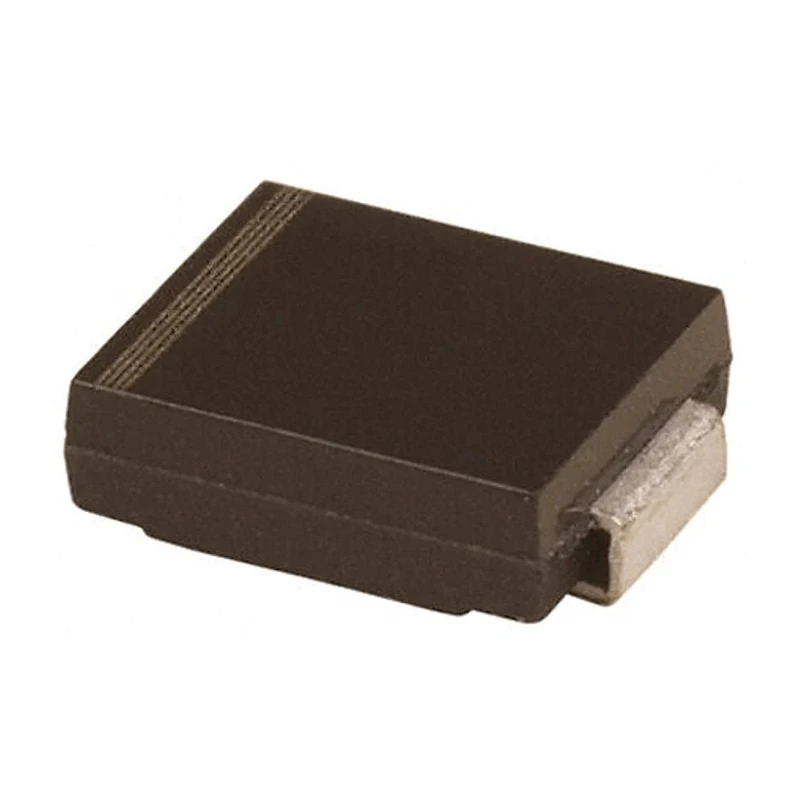

HY Electronic Corp 60 V 3 A Schottky Barrier Rectifier Diode 2-Pin DO-214AB SS36
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.75mm |
| Length | 7.15mm |
| Model | SS36 |
| Width | 6.25mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 750mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
| Vishay 60 V 3 A Diode Schottky 2-Pin DO-214AB SS36-E3/57TBrand | Vishay |
Key Features
- Surface mount diode designed for efficient switching and low forward voltage drop.
- Maximum continuous forward current of 3 A ensures reliable performance under high load.
- Peak reverse repetitive voltage rated at 60 V for effective blocking functionality.
- Constructed with molded plastic case rated UL 94V-0 for flame retardancy.
- Thermally stable operating temperature range from -55°C to 150°C suits industrial applications.
- Features polarity marked by cathode band for correct circuit placement.
- Low peak reverse current of 10 mA minimizes leakage losses.
- High peak non-repetitive surge current of 100 A tolerates transient conditions.
Product Description
HY Electronic Corp SS36 is a high-efficiency Schottky barrier rectifier diode designed for surface mount applications. This diode offers a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 60 V, making it suitable for various industrial and commercial electronic circuits.
Encapsulated in a DO-214AB (SMC) plastic package with UL 94V-0 flame retardant classification, it provides excellent thermal and electrical performance. The device operates reliably across a wide temperature range from -55°C up to 150°C, making it versatile for use in harsh environments.
The diode features a low forward voltage drop of 750 mV which optimizes power efficiency and reduces heat generation in circuits. Polarity is clearly indicated by a cathode band, ensuring correct orientation during PCB assembly. Its low peak reverse current of 10 mA reduces leakage current, enhancing overall system reliability.
Dimensions are compact at 7.15 mm length, 6.25 mm width, and 2.75 mm height, facilitating easy integration into tight PCB layouts. The SS36 diode supports high surge currents up to 100 A, protecting circuits from transient overloads.
Common industrial applications include free-wheeling diodes in motor control, inverter designs for power conversion, and polarity protection to safeguard sensitive components. It is engineered for use in power and electronic component manufacturing, electrical equipment design, and various commercial and industrial semiconductor uses.
Surface mount design for efficient switching applications. Maximum forward current of 3 A supports moderate load currents. Peak repetitive voltage of 60 V suitable for medium voltage circuits. Low forward voltage drop of 750 mV enhances efficiency.
Wide operating temperature range from -55°C to 150°C for reliability. Robust plastic package with UL 94V-0 flame resistance. Polarity marking ensures correct installation. High surge current rating of 100 A for transient conditions.
Compact dimensions enable space-saving PCB layouts. Ideal for free-wheeling, inverter circuits, and polarity protection. Explore more products in the Schottky Diodes & Rectifiers category at EnvMart for reliable semiconductor components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 A, ensuring reliable performance under high load conditions.
This diode has a peak reverse repetitive voltage rating of 60 V, making it suitable for medium voltage circuits.
The forward voltage drop of this diode is 750 mV, which helps optimize power efficiency and reduce heat generation in circuits.
The dimensions of this diode are 7.15 mm in length, 6.25 mm in width, and 2.75 mm in height, allowing for easy integration into compact PCB layouts.
It operates reliably across a wide temperature range from -55°C to 150°C, suitable for various industrial applications.
This model is encapsulated in a DO-214AB (SMC) plastic package, which is rated UL 94V-0 for flame retardancy.
The polarity is marked by a cathode band, ensuring correct orientation during PCB assembly.
The peak non-repetitive forward surge current rating for this diode is 100 A, which allows it to tolerate transient conditions.
This model has a low peak reverse current of 10 mA, which minimizes leakage losses and enhances system reliability.
Common applications include free-wheeling diodes in motor control, inverter designs for power conversion, and polarity protection for sensitive components.
This diode is classified as a Schottky rectifier, known for its efficient switching capabilities and low forward voltage drop.
The diode is constructed with a molded plastic case that has a flammability classification of UL 94V-0, ensuring safety in applications.
