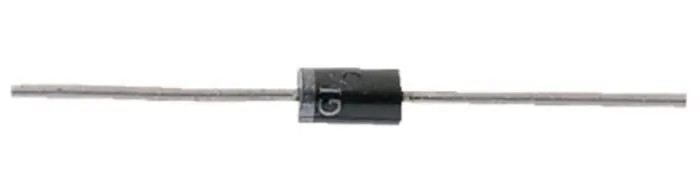

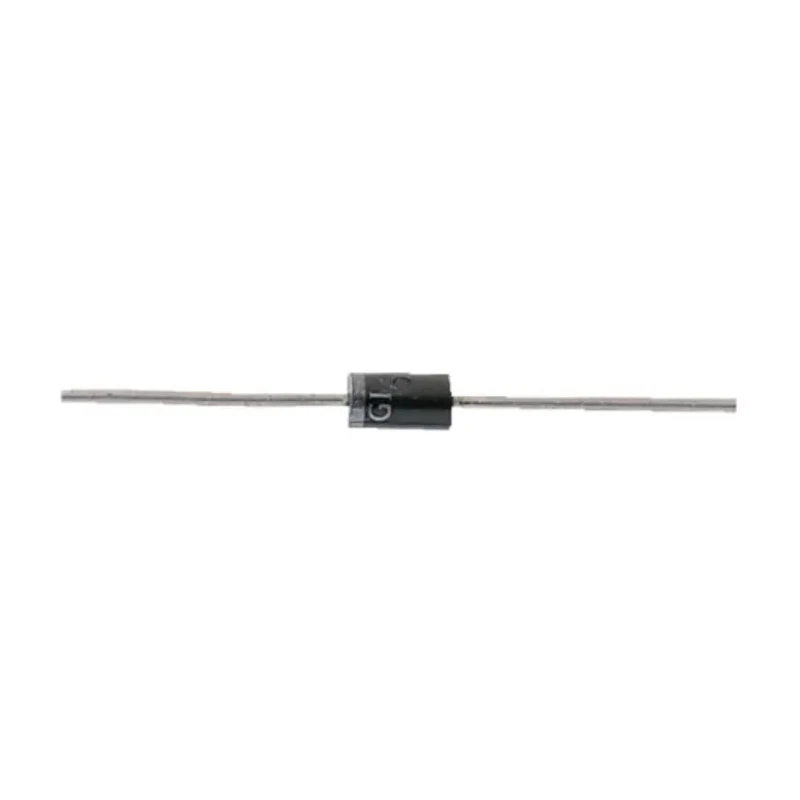

HY Electronic Corp Schottky Diode 100 V 5 A, Through Hole DO-27 Package SR5100
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.6mm |
| Brand | HY Electronic Corp |
| Height | 9.5mm |
| Length | 59.5mm |
| Model | SR5100 |
| Mount Type | Through Hole |
| Series | SR5100 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-27 |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 850mV |
| Metal | Semiconductor junction with guard ring |
Key Features
- Designed for high-speed switching and low forward voltage drop.
- Constructed with epitaxial semiconductor junction with guard ring.
- Rated for peak repetitive reverse voltage of 100 V and peak surge forward current of 150 A.
- Operating temperature range from -55°C to 150°C for demanding environments.
- Colour band indicates cathode for easy polarity identification.
- Package dimensions include 59.5 mm length, 5.6 mm diameter, and 9.5 mm height.
- Ideal for power management, polarity protection, and freewheeling inverters in industrial electronic applications.
- Manufactured in China with plastic materials meeting UL 94V-0 flammability standards.
Product Description
HY Electronic Corp SR5100 Schottky diode features a 100 V peak reverse repetitive voltage and a maximum continuous forward current of 5 A, designed for use in power management and high-frequency inverter applications. Packaged in a through hole DO-27 form factor, this diode offers fast switching capabilities and a low forward voltage of 850 mV, maximizing efficiency in electronic circuits.
Constructed using epitaxial semiconductor junction technology with an integrated guard ring, the device ensures reliability and performance under surge currents up to 150 A peak non-repetitive forward surge current. The diode operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for rigorous industrial environments.
The colour band on the package denotes the cathode, enabling quick and correct installation in circuits. With dimensions of 59.5 mm length, 9.5 mm height, and 5.6 mm diameter, the diode is compatible with standard through hole mounting methods and meets plastic material UL 94V-0 recognition for safety.
This diode is widely used in power electronics for polarity protection and as a freewheeling diode in inverter circuits. It supports efficient power conversion and minimizes power loss due to its low forward voltage and high current capacity.
High-speed switching Schottky diode with low forward voltage drop. Robust epitaxial junction construction with guard ring technology. Wide operating temperature range suited for industrial applications. Standard DO-27 through hole package with easy polarity marking.
Capable of handling surge currents up to 150 A. Plastic package material rated UL 94V-0 for flame retardance. Manufactured in China to recognized quality standards.
Ideal for use in industrial, manufacturing, and electronic component assembly environments requiring reliable diode performance. Explore more power management and semiconductor solutions from EnvMart's extensive electronic components catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 5 A.
It is rated for a peak reverse repetitive voltage of 100 V.
The diode operates within a temperature range of -55°C to 150°C.
The package dimensions are 59.5 mm in length, 5.6 mm in diameter, and 9.5 mm in height.
The colour band indicates the cathode, allowing for easy and correct polarity identification during installation.
The maximum forward voltage drop for this diode is 850 mV.
It can handle a peak non-repetitive forward surge current of 150 A.
This model supports through hole mounting.
It is constructed with an epitaxial semiconductor junction and features a guard ring.
This diode is suitable for power management, polarity protection, and as a freewheeling diode in inverter circuits.
The plastic materials used in the package meet UL 94V-0 flammability standards.
The peak reverse current for this diode is rated at 50 mA.
