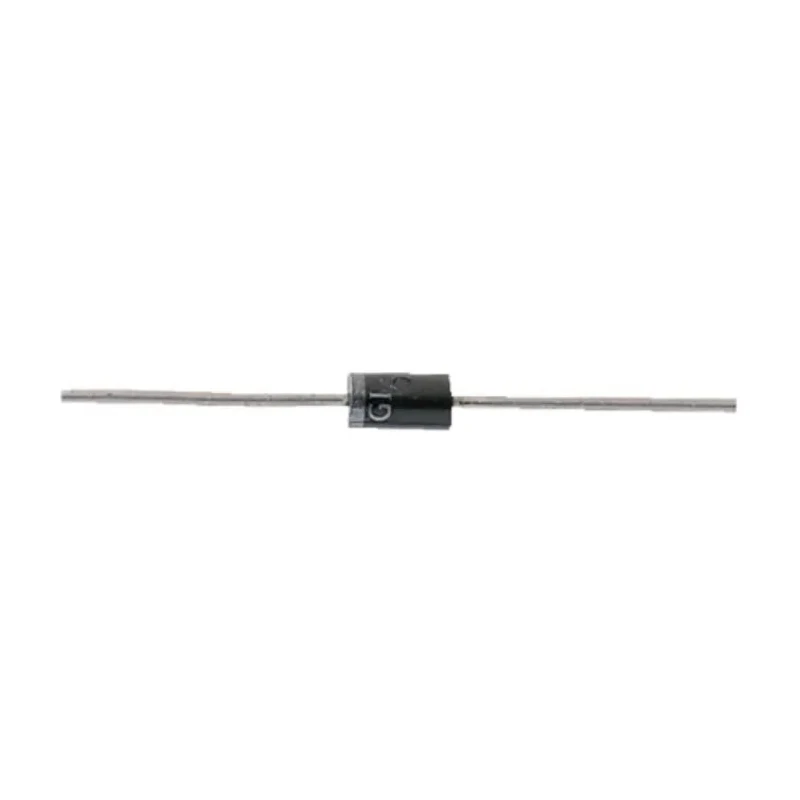

HY Electronic Corp 60 V 5 A Schottky Diode 2-Pin Through Hole DO-27 Package SR560
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.6mm |
| Brand | HY Electronic Corp |
| Height | 9.5mm |
| Length | 59.5mm |
| Model | SR560 |
| Mount Type | Through Hole |
| Series | SR560 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-27 |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 700mV |
| Metal | Semiconductor junction with guard ring |
Key Features
- This diode features a low forward voltage drop of 700 mV for efficient operation.
- Designed for high frequency inverter freewheeling and polarity protection applications.
- Robust construction includes epitaxial semiconductor junction with guard ring.
- Plastic package material is UL recognized to 94V-0 flammability standard.
- Operational temperature range from -55°C to 150°C ensuring reliability in harsh environments.
- Color band denotes cathode polarity for easy identification.
- Peak non-repetitive forward surge current rating of 150 A for transient conditions.
Product Description
HY Electronic Corp SR560 Schottky Diode is a high-performance semiconductor diode designed for power management applications. It comes in a 2-pin Through Hole DO-27 package and supports a continuous forward current of 5 A with a peak reverse repetitive voltage of 60 V. The diode has a low forward voltage drop of 700 mV, improving efficiency in power circuits.
This Schottky barrier rectifier features epitaxial construction and a semiconductor junction with a guard ring for enhanced performance and durability. The plastic packaging is compliant with UL 94V-0 flammability standards, providing safety in electrical applications.
The device operates reliably within a temperature range of -55°C to 150°C, making it suitable for demanding industrial and commercial environments. Its fast switching capability is ideal for high frequency inverter freewheeling and polarity protection tasks.
The diode's polarity is clearly marked by a color band that identifies the cathode, simplifying installation and maintenance. It also supports a peak non-repetitive forward surge current of 150 A, allowing it to withstand transient load conditions effectively.
This diode features a low forward voltage drop of 700 mV for efficient operation. Designed for high frequency inverter freewheeling and polarity protection applications. Robust construction includes epitaxial semiconductor junction with guard ring.
Plastic package material is UL recognized to 94V-0 flammability standard. Operational temperature range from -55°C to 150°C ensuring reliability in harsh environments. Color band denotes cathode polarity for easy identification.
Peak non-repetitive forward surge current rating of 150 A for transient conditions.
This Schottky diode is widely used in industrial power management, electronics manufacturing, and various commercial electrical applications. Its reliable specifications ensure optimal performance in semiconductor circuit designs.
Choose from EnvMart’s comprehensive selection of semiconductor diodes and components to suit all your electronic assembly and repair needs.
Explore more products in our Schottky Diodes & Rectifiers category.
