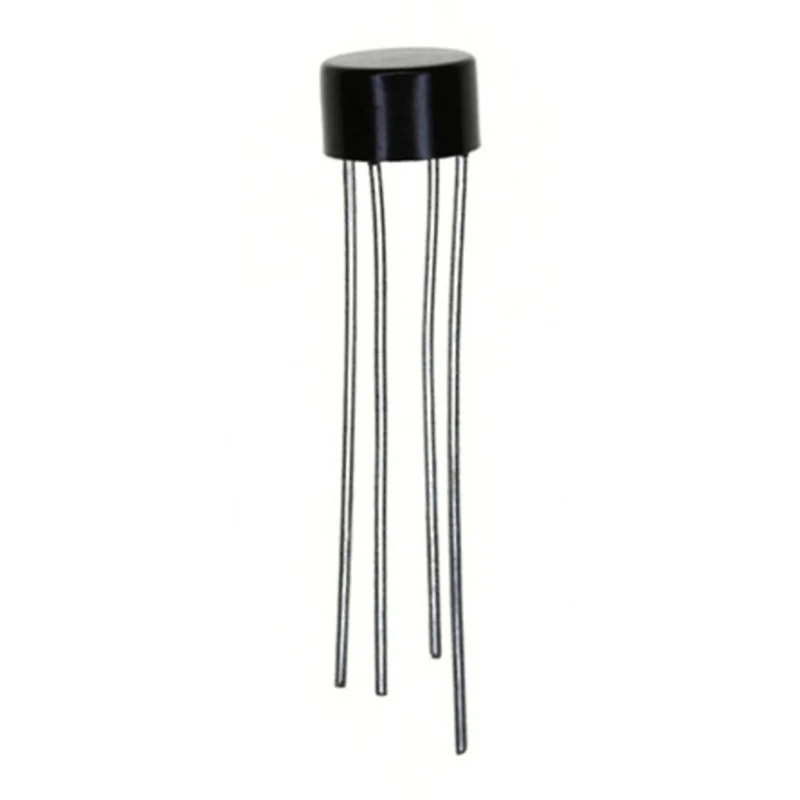

HY Electronic Corp Bridge Rectifier, 1000 V 60 A, 4-Pin Single 2W10MG

HY Electronic Corp 2W10MG Bridge Rectifier is a high-performance 4-pin single configuration semiconductor device designed to convert AC voltage into DC voltage efficiently.

Featuring a peak reverse repetitive voltage of 1000 V and a peak non-repetitive forward surge current rating of 60 A, it supports robust operational demands in electronic circuits. The device is constructed with silicon passivated technology from the 2WO series, ensuring dependable performance under varying electrical loads.

This bridge rectifier supports a forward current of 2 A with a peak forward voltage typically at 1.1 V, balancing efficiency and power management. It is mounted through the hole on printed circuit boards, facilitating easy integration into electronic assemblies. Its compact profile of 4.6 mm height and 9.8 mm diameter makes it suitable for diverse PCB layouts.

Thermal endurance spans a wide range with a minimum operating temperature of -55°C and maximum up to 150°C, enabling stable operation in demanding industrial and electronic environments.

The 2WOxG/2WOxMG sub-series offers glass passivated variants for applications requiring enhanced reliability and longevity. This bridge rectifier does not adhere to automotive standards and is primarily aimed at industrial, commercial electronics, and electronic component manufacturing sectors.

Through hole mounting for PCB compatibility. Compact size for flexible assembly options. Reliable silicon passivated technology. Efficient AC to DC conversion with stable forward voltage. Wide operating temperature range supporting industrial conditions.

Surge overload rating of 60 A ensures durability against transient currents. Ideal for use in power supply rectification and electronic circuits. Glass passivated sub-series available for enhanced reliability. Manufactured in China adhering to quality standards.

Designed for one-phase electrical systems with 4 pins.

Ideal for application in electronic components, power supplies, and general semiconductor uses, HY Electronic Corp's 2W10MG bridge rectifier delivers stable and efficient performance. Explore other Bridge Rectifiers and semiconductor products in the Electronics & Electricals category on EnvMart for related needs.
