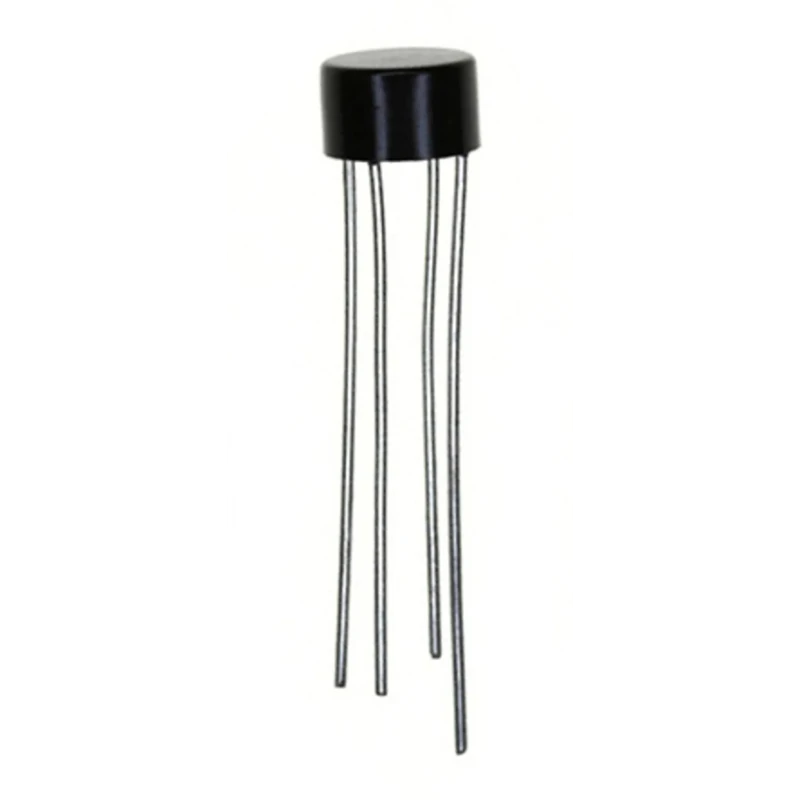

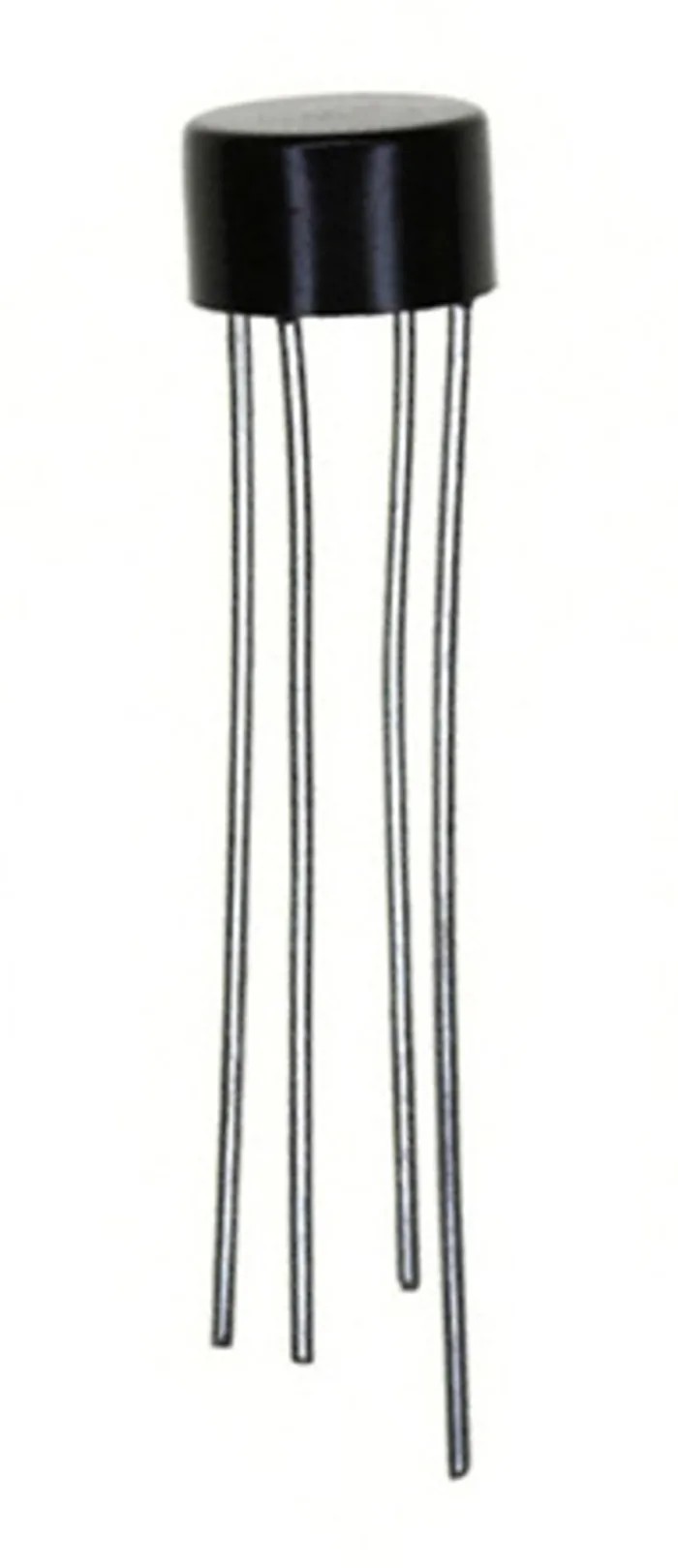

HY Electronic Corp Bridge Rectifier, Glass Passivated, 1000 V Peak Reverse Voltage, 50 A Surge Current, 4-Pin Through W10G

HY Electronic Corp W10G Bridge Rectifier is a high-quality bridge rectifier designed to convert alternating current (AC) into direct current (DC) with high reliability. This 4-pin through-hole device supports a peak repetitive reverse voltage (Vrrm) of 1000 V and a peak non-repetitive forward surge current (Ifsm) of 50 A, making it suitable for robust electronic circuits and power supply applications.

The W10G model operates efficiently within a broad temperature range from -55°C minimum to 150°C maximum, ensuring durability even under demanding environmental conditions. The forward current rating of 1.5 A and a peak forward voltage of 1 V provide stable and efficient conduction during operation.

The compact physical dimensions, with a diameter of 9.86 mm and height of 4.6 mm, allow easy integration into printed circuit boards and electronic assemblies. Glass passivated technology used in the WOxG series enhances the longevity and reliability of the device by protecting the silicon chip from contamination and mechanical stresses.

This component is suitable for various industrial and commercial electronic applications requiring AC to DC conversion, including motor drives, power supplies, and other power electronics systems. The product is manufactured in China under the HY Electronic Corp brand, known for quality semiconductors and discrete electronic components.

The unit supports a maximum forward current of 1.5 A operating through-hole mounting. Operates efficiently within a temperature range from -55°C to 150°C. It features a compact package with a diameter of 9.86 mm and height of 4.6 mm.

Peak forward voltage is nominally 1 V and peak reverse current up to 500 μA. Designed to be used on printed circuit boards for reliable power rectification. Glass passivated construction ensures longevity and stable performance.

Single-phase, single-configuration bridge rectifier ideal for diverse electronic applications. Manufactured according to WOxG series standards with no automotive certification specified.

For electronics manufacturers and designers, the HY Electronic Corp W10G bridge rectifier offers a trusted solution for power rectification needs with verified performance standards. Explore more semiconductor components and related products in the Bridge Rectifier category at EnvMart for comprehensive sourcing options.
