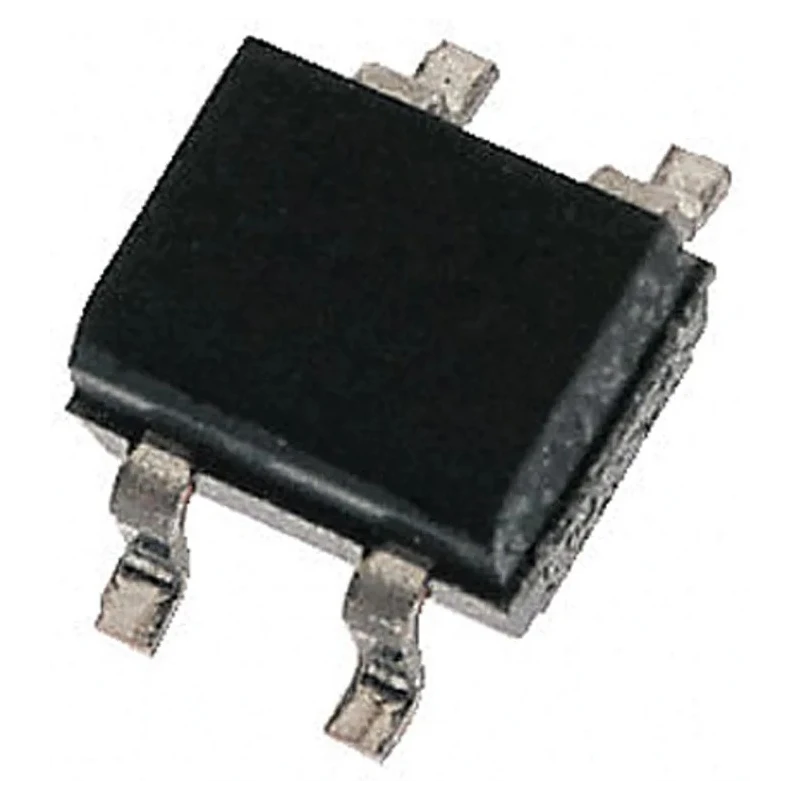

HY Electronic Corp Bridge Rectifier Surface Mount 4-Pin 1000 V 60 A DBS Series DB207S

HY Electronic Corp DB207S bridge rectifier is a surface mount device designed for applications requiring reliable conversion of AC power to DC. This single-phase, 4-pin bridge rectifier supports a peak reverse repetitive voltage of 1000 V and a forward current of 2 A. It is ideal for use in industrial electronics, automotive circuits, and consumer electronic products requiring efficient power rectification.

The DBS series rectifier features ultra-low forward voltage drop of 1.1 V to optimize energy efficiency and reduce heat dissipation during operation. It is constructed with flame retardant plastic material rated UL94V-0 ensuring safe operation under normal and fault conditions.

Withstanding a peak non-repetitive forward surge current of up to 60 A, this component ensures durability under transient overload conditions. The operating temperature range from -55°C to 150°C makes it suitable for harsh environments typical in automotive and industrial electronics.

Dimensionally compact with 8.8 mm length, 6.5 mm width, and 3.4 mm height, it fits onto densely populated PCBs while providing robust electrical performance. Its pin count of 4 and single phase configuration simplify integration into standard bridge rectifier circuits.

HY Electronic Corp upholds high standards including compliance with automotive AEC-Q101 for reliability. Originating from China, this device is manufactured to meet rigorous quality and performance benchmarks.

This DBS series bridge rectifier features a peak non-repetitive forward surge current rating of 60 A. It operates reliably in temperatures ranging from -55°C to 150°C. The device has a low peak forward voltage drop of 1.1 V to increase efficiency.

Compact dimensions of 8.8 mm length, 6.5 mm width, and 3.4 mm height support high-density PCB mounting. Constructed with UL94V-0 classified plastic material for flame retardance. It meets the AEC-Q101 automotive standard for high reliability in demanding environments.

Pin count is 4 with a single phase configuration for typical rectifying applications. Peak reverse current is rated at 500 μA ensuring low leakage. Produced by HY Electronic Corp with origin in China, suitable for industrial, automotive, and electronic equipment use.
