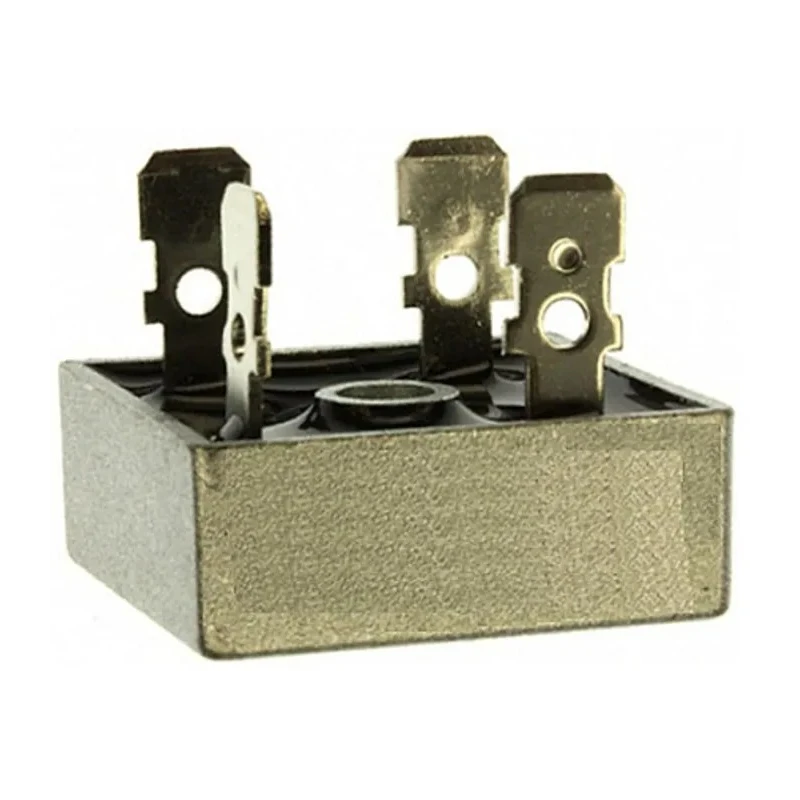

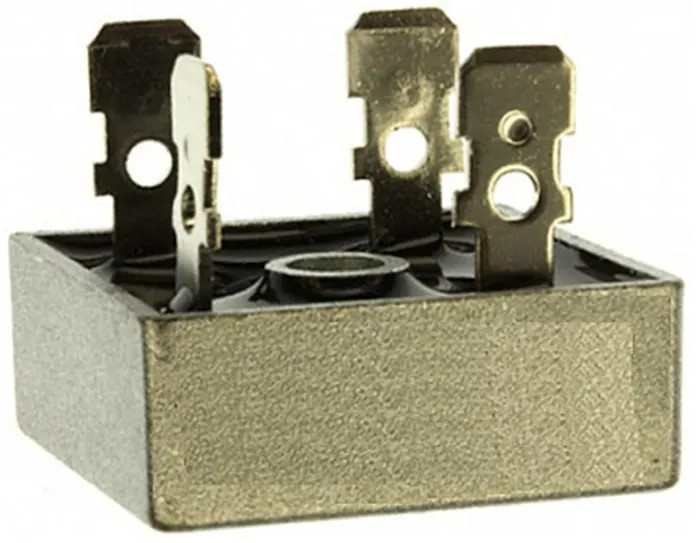

HY Electronic Corp Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Material | U/L recognition |
| Height | 11.23mm |
| Length | 29mm |
| Model | GBPC3506 |
| Width | 29mm |
| Mount Type | Screw |
| Series | GBPC35 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -50°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.1V |
| Surge overload | -300 A to 450 A peaks |
| Vishay Bridge Rectifier, 600 V 400 A, 4-Pin SingleBrand | Vishay |
Key Features
- The bridge rectifier is rated for a peak reverse repetitive voltage of 600 V.
- Forward current capability is 35 A with a maximum operating temperature of 150°C.
- The device operates reliably between -50°C to 150°C.
- It features a screw mount type and a GBPC package with 4 pins.
- The peak non-repetitive forward surge current rating is 400 A.
- Compact dimensions with 29 mm length, 29 mm width, and 11.23 mm height.
- Low peak forward voltage drop of 1.1 V ensures efficient operation.
- Peak reverse current is minimal at 5 μA for reduced leakage.
Product Description
HY Electronic Corp GBPC3506 bridge rectifier is a single-phase electronic component designed for efficient AC to DC conversion in industrial and electronic circuits. It supports a peak reverse repetitive voltage of 600 V and a forward current of 35 A, making it suitable for high-power semiconductor applications.
Its 4-pin single configuration with GBPC package type and screw mount facilitates easy integration into PCB designs. The device operates in a wide temperature range from -50°C to 150°C, allowing durability in demanding industrial environments.
With a peak non-repetitive forward surge current of 400 A and a surge overload rating between -300 A to 450 A peaks, this bridge rectifier is engineered to handle transient overload conditions effectively. The low peak forward voltage drop of 1.1 V contributes to energy efficiency and reduced heat dissipation during operation.
Physical dimensions are compact at 29 mm length, 29 mm width, and 11.23 mm height, plus it features a U/L recognized material ensuring quality and reliability. Peak reverse current is limited to 5 μA to minimize leakage currents. This product originates from China and is ideal for electronic, industrial, power supply, and manufacturing applications requiring robust rectification solutions.
Peak reverse repetitive voltage: 600 V. Forward current (If): 35 A. Operating temperature range: -50°C to 150°C. 4-pin, single configuration with GBPC package. Surge non-repetitive forward current: 400 A. Low forward voltage drop of 1.1 V.
Compact size: 29 mm × 29 mm × 11.23 mm (L×W×H). Material complies with U/L recognition standards. Surge overload capacity up to 450 A peaks.
This Bridge Rectifier is an essential component in electronic designs for converting AC inputs to DC output with high efficiency and reliability. Suitable for industrial electronics, power connecters, manufacturing, and laboratory applications.
Explore EnvMart’s Electronics & Electricals category for similar high-quality semiconductor components and power devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier is rated for a peak reverse repetitive voltage of 600 V.
It has a forward current capability of 35 A.
This model operates reliably between -50°C to 150°C.
The peak non-repetitive forward surge current rating is 400 A.
The compact dimensions are 29 mm in length, 29 mm in width, and 11.23 mm in height.
It features a screw mount type for easy integration into PCB designs.
The peak forward voltage drop is low at 1.1 V, contributing to efficient operation.
The peak reverse current is minimal at 5 μA, which helps reduce leakage.
The material complies with U/L recognition standards, ensuring quality and reliability.
It is suitable for electronic, industrial, power supply, and manufacturing applications requiring robust rectification solutions.
The surge overload capacity ranges from -300 A to 450 A peaks, allowing it to handle transient overload conditions effectively.
The GBPC3506 has a single configuration with a 4-pin design.
