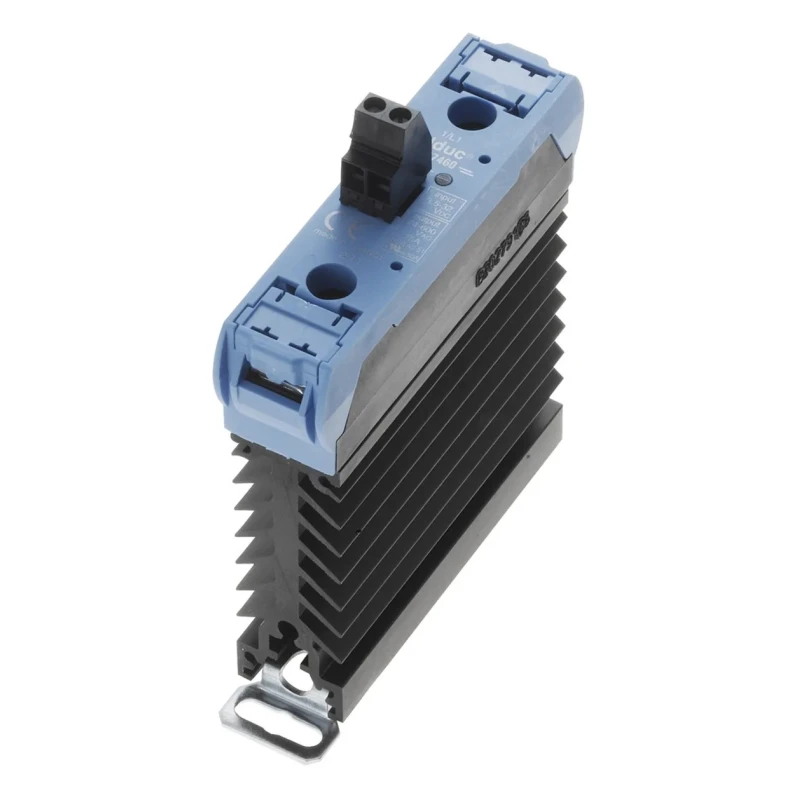

Celduc SUL9-SUM9 Series Solid State Relay, 32A Load Current, DIN Rail Mount, 600V AC Load, 32V DC Control SUL9-SUM9
Specifications
| Country of Origin | France |
|---|---|
| Brand | Celduc |
| Height | 80mm |
| Length | 22.5mm |
| Model | SUL9-SUM9 |
| IP Rating | IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Output type | Thyristor |
| Series | SUL9-SUM9 |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 32A |
| Standards/Approvals | EAC, CE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 917-4848Brand: CelducManufacturers Part No.: SUL965460 |
| Maximum Load Voltage | 600V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Single pole single throw (SPST) contact configuration ensuring reliable switching.
- Zero cross switching function reduces electrical noise during operation.
- Compact dimensions measuring 80mm height, 35mm width, and 22.5mm length.
- Durable screw terminal type with an IP20 protection rating for indoor use.
- Operating temperature range from -55°C to 100°C for versatile environmental conditions.
- Thyristor output type provides efficient solid state switching.
- Integral LED indication for easy status monitoring.
- Conforms to EAC and CE standards for quality assurance.
Product Description
Celduc SUL9-SUM9 series solid state relay offers an industrial-grade solution for switching loads up to 32 amperes with a maximum load voltage of 600 volts AC. Ideal for DIN rail mounting, this relay is controlled by a DC voltage ranging from 3.5 V up to 32 V, making it suitable for automation, electrical control panels, HVAC systems, and manufacturing applications.
The relay features single pole single throw (SPST) contact configuration and a zero-cross switching function that minimizes electromagnetic interference on switching load currents. Its thyristor output type ensures reliable and efficient solid-state operation.
The compact form factor of 80 mm height, 35 mm width, and 22.5 mm length allows easy integration into electrical enclosures or control cabinets. It includes screw terminals for secure wiring and an IP20 rating suitable for indoor industrial environments.
Operating effectively in temperatures from -55°C to +100°C, the solid state relay is equipped with LED indication for operational status and complies with EAC and CE standards, ensuring compliance with regulatory safety and quality requirements.
This product is manufactured in France and is part of the Celpac range, known for compact and robust solid state relays with integral heat sinks optimized for DIN rail installations.
Single pole single throw (SPST) contact configuration ensuring reliable switching. Zero cross switching function reduces electrical noise during operation. Compact dimensions measuring 80mm height, 35mm width, and 22.5mm length.
Durable screw terminal type with an IP20 protection rating for indoor use. Operating temperature range from -55°C to 100°C for versatile environmental conditions. Thyristor output type provides efficient solid state switching.
Integral LED indication for easy status monitoring. Conforms to EAC and CE standards for quality assurance. Designed for single phase applications with a minimum load voltage of 24V AC. Originates from France ensuring high manufacturing standards.
Suitable for industrial, automation, electrical control, and HVAC applications, the Celduc SUL9-SUM9 solid state relay is an essential component for modern control systems. Explore more Solid State Relays and related products on EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 32 amperes.
It operates with a maximum load voltage of 600 volts AC and a minimum load voltage of 24 volts AC.
The control voltage for the SUL9-SUM9 ranges from 3.5 volts DC to 32 volts DC.
This relay features a single pole single throw (SPST) contact configuration.
The dimensions are 80 mm in height, 35 mm in width, and 22.5 mm in length.
It is designed for DIN rail mounting.
The operating temperature range is from -55°C to 100°C.
This model uses a thyristor output type for efficient solid state switching.
Yes, it has an IP20 protection rating, suitable for indoor use.
It features a zero-cross switching function that reduces electrical noise during operation.
It conforms to EAC and CE standards for quality assurance.
This product is manufactured in France.
