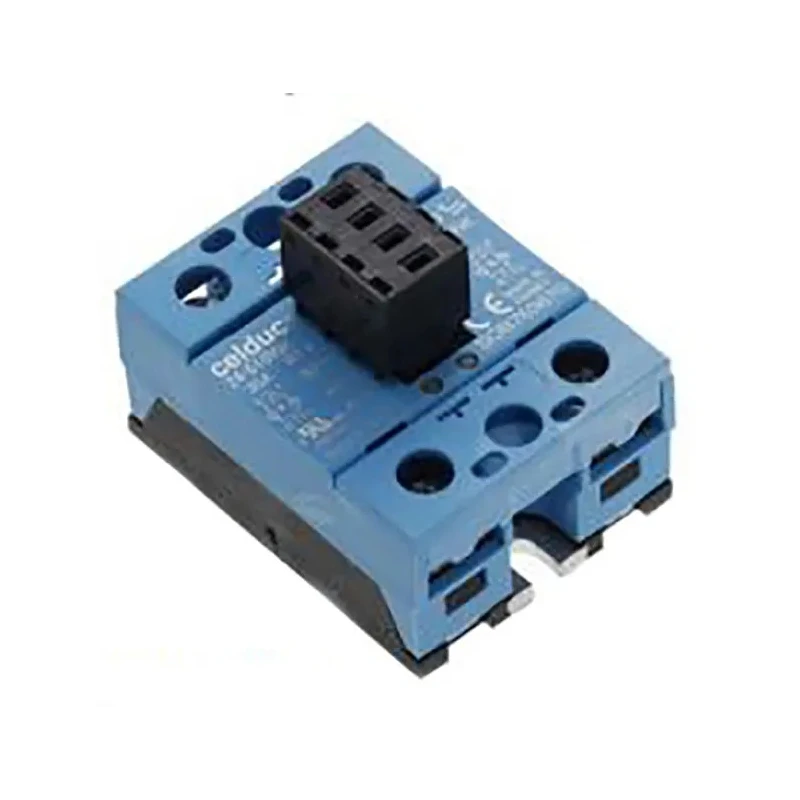

Celduc Solid State Relay DIN Rail Mount 510V AC Load 8-30V DC Control SOB8
Specifications
| Country of Origin | France |
|---|---|
| Brand | Celduc |
| Height | 30mm |
| Length | 44.8mm |
| Model | SOB8 |
| IP Rating | IP20 |
| Width | 44.8mm |
| Mount Type | DIN Rail |
| Output type | Triac |
| Series | SOB8 |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Standards/Approvals | UKCA, VDE, RoHS, CE, CSA, cURus, EAC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 917-4822Brand: CelducManufacturers Part No.: SOB867640 |
| Maximum Load Voltage | 510V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 8V dc |
| Maximum Control Voltage | 30V dc |
| Off State Leakage Current | 1mA |
| On State Resistance | 16mΩ |
Key Features
- Designed for mounting on DIN rail, enabling secure installation.
- Supports maximum load voltage of 510 V AC and minimum load voltage of 24 V AC.
- Control voltage ranges from 8 V DC minimum to 30 V DC maximum.
- Features screw terminal type for reliable electrical connections.
- Operates within temperature ranges from -40°C to 100°C for diverse environments.
- Incorporates zero cross switching for efficient switching performance.
- Offers an on-state resistance of 16 milliohms ensuring low power loss.
- Complies with standards including UKCA, VDE, RoHS, CE, CSA, cURus, and EAC certifications.
Product Description
The Celduc SOB8 Series solid state relay is a high-performance device designed for industrial and commercial electrical applications. With a DIN rail mount, it offers secure and convenient installation in control panels.
This relay supports a maximum load voltage rating of 510 V AC, suitable for two-phase synchronous loads, while maintaining a minimum load voltage of 24 V AC. Its control voltage operates between 8 V DC minimum and 30 V DC maximum, providing compatibility with a range of control systems.
Its screw terminal connection ensures robust and reliable wiring. The solid state relay features a zero cross switching function, reducing electrical noise and enhancing switching efficiency. The on-state resistance of 16 milliohms minimizes power loss during operation.
Operating between temperatures of -40°C to 100°C, the relay is suited for demanding environments. It has an SPST contact configuration with triac output type, optimal for various load types.
The device meets rigorous industry standards including UKCA, VDE, RoHS, CE, CSA, cURus, and EAC approvals, ensuring quality and compliance. Its compact dimensions (44.8 mm length, 44.8 mm width, and 30 mm height) allow efficient space utilization in electrical panels.
Designed for mounting on DIN rail, enabling secure installation. Supports maximum load voltage of 510 V AC and minimum load voltage of 24 V AC. Control voltage ranges from 8 V DC minimum to 30 V DC maximum. Features screw terminal type for reliable electrical connections.
Operates within temperature ranges from -40°C to 100°C for diverse environments. Incorporates zero cross switching for efficient switching performance. Offers an on-state resistance of 16 milliohms ensuring low power loss.
Complies with standards including UKCA, VDE, RoHS, CE, CSA, cURus, and EAC certifications. Equipped with triac output type and SPST contact configuration. Compact size with dimensions of 44.8 mm length, 44.8 mm width, and 30 mm height.
This solid state relay is ideal for industrial automation, electrical control systems, manufacturing machinery, HVAC applications, and other commercial electrical installations requiring reliable and silent switching.
Explore more Solid State Relays and electrical automation products to find compatible items for your industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum load voltage of 510 V AC and a minimum load voltage of 24 V AC.
The control voltage for this relay operates between 8 V DC minimum and 30 V DC maximum.
It is designed for mounting on DIN rail, allowing for secure installation in control panels.
The dimensions of this unit are 44.8 mm in length, 44.8 mm in width, and 30 mm in height.
It operates within a temperature range of -40°C to 100°C, making it suitable for diverse environments.
This model features a triac output type with an SPST contact configuration.
The on-state resistance is 16 milliohms, ensuring low power loss during operation.
Yes, it incorporates zero cross switching, which enhances switching efficiency and reduces electrical noise.
It features a screw terminal type for reliable electrical connections.
This relay complies with several standards including UKCA, VDE, RoHS, CE, CSA, cURus, and EAC.
The off-state leakage current is 1 mA.
This relay is suitable for industrial automation, electrical control systems, manufacturing machinery, and HVAC applications.
