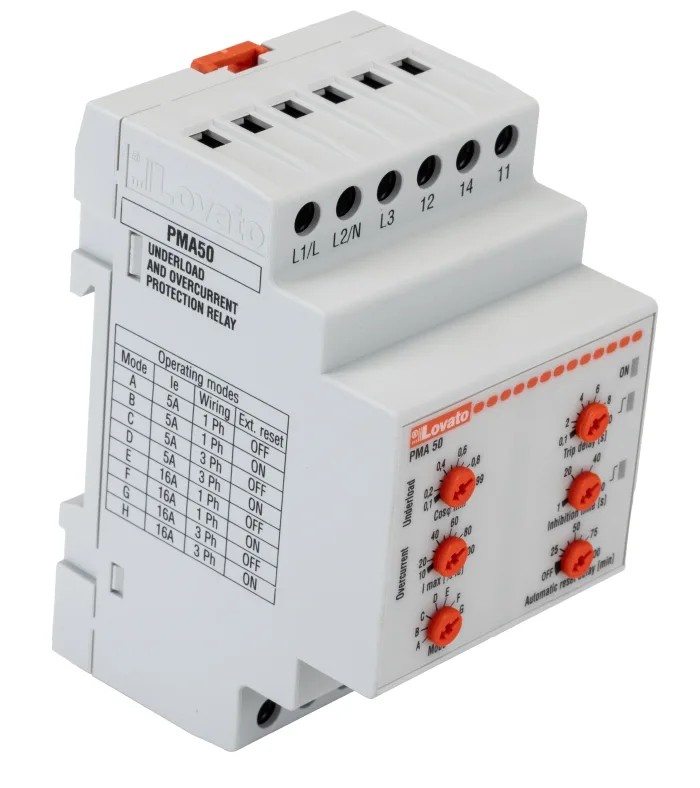

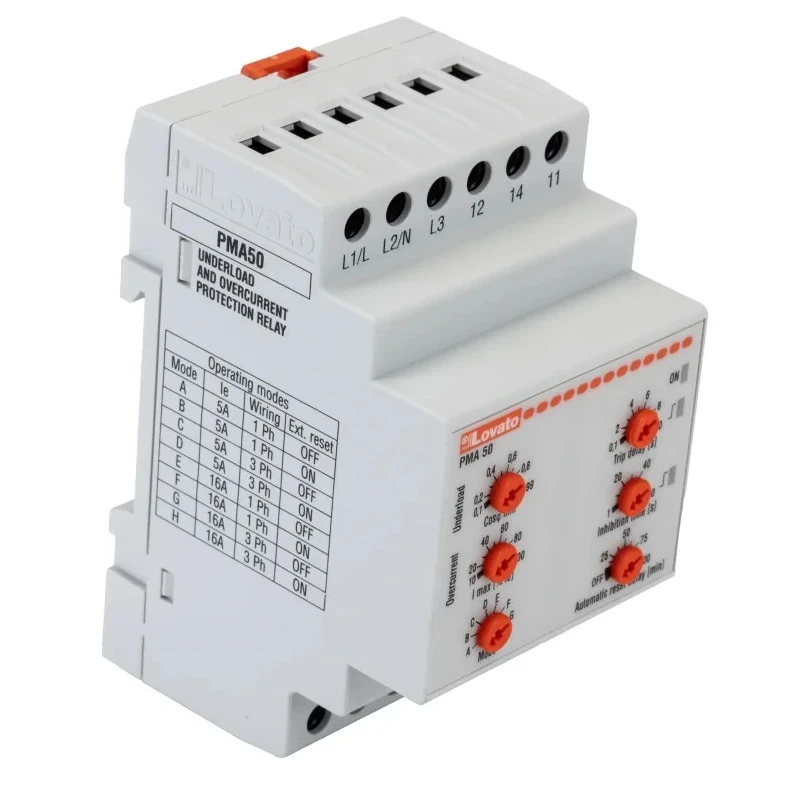

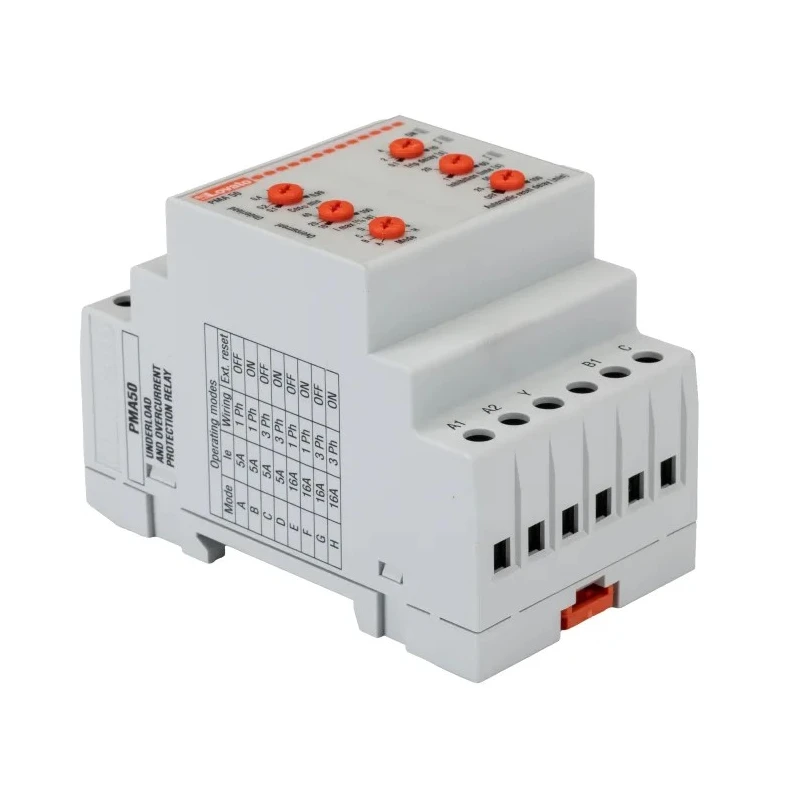

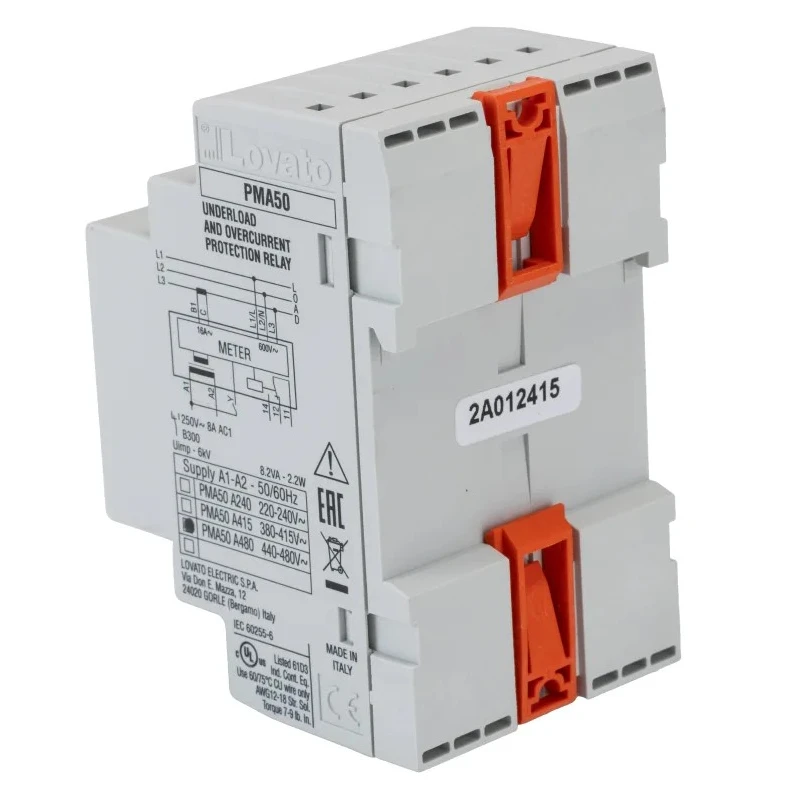

Lovato Electric Monitoring Relay 1, 3 Phase SPDT DIN Rail Mount 0.1A to 16A 440V AC 480V AC PMA50A480
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Lovato Electric |
| Height | 104.7mm |
| Length | 53.5mm |
| Model | PMA50A480 |
| IP Rating | IP40, IP20 |
| Width | 63mm |
| Mount Type | DIN Rail |
| Series | PMA50 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Time Delay | 0.1 to 10 s |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Standards/Approvals | EAC |
| Switching Voltage | 400V ac |
| Supply AC Voltage | 440, 480V ac |
| Minimum Current Sensed | 0.1A |
| Maximum Current Sensed | 16A |
| Current Sensitivity | Undercurrent, Overcurrent |
| Relay Contact Current | 16, 5A |
Key Features
- Suitable for both overcurrent and undercurrent detection applications.
- Compact DIN rail mounting design with screw terminal type for secure connections.
- Wide current sensing range from 0.1 A minimum to 16 A maximum.
- Adjustable time delay from 0.1 to 10 seconds for responsive protection.
- IP40 and IP20 rated for protected industrial environments.
- Operates reliably at supply voltages of 440 V AC and 480 V AC.
- Relay contact current rated at 16 A and 5 A depending on configuration.
- Complies with EAC standards ensuring quality and safety.
Product Description
Lovato Electric PMA50A480 Monitoring Relay is engineered for precise current monitoring and protection in single and three-phase electrical systems. This relay features an SPDT (Single Pole Double Throw) contact configuration and accommodates a wide current sensing range from 0.1 A to 16 A, making it versatile for multiple applications. The compact DIN rail mount design allows easy installation in control panels and electrical cabinets with a screw terminal type for secure electrical connections.
Equipped with sensitivity for both overcurrent and undercurrent conditions, the relay offers reliable protection to prevent equipment damage due to abnormal current flow. Its adjustable time delay between 0.1 and 10 seconds enhances flexibility in system response to transient events, adapting to various industrial requirements.
Designed to operate at supply voltages of 440 V AC and 480 V AC, this unit maintains performance within temperature limits up to 60° C. The relay is rated IP40 and IP20 for ingress protection, suited for typical industrial environments. The contact current ratings are 16 A and 5 A, accommodating different load demands.
With dimensions of approximately 53.5 mm (length), 63 mm (width), and 104.7 mm (height), the PMA50A480 series is compact for space-saving deployment in control systems. It meets EAC standards and is manufactured in Italy, reflecting quality and compliance with international electrical safety standards.
This monitoring relay is ideal for industrial automation, electrical panels, HVAC systems, manufacturing plants, and commercial electrical circuits requiring reliable current monitoring and protective relay functions.
Versatile overcurrent and undercurrent detection. Easy DIN rail mounting with secure screw terminals. Wide sensing range for flexible application. Time delay adjustment for tailored response. Compact dimensions for efficient panel integration.
Robust protection ratings IP40 and IP20. Suitable for 440 V AC and 480 V AC supplies. Complies with EAC international standards. Manufactured to high quality standards in Italy. Applicable in industrial, commercial, and automation fields.
Explore other Monitoring Relays and electrical components in EnvMart's Electronics & Electricals category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lovato Electric PMA50A480 monitoring relay has a current sensing range from 0.1 A to 16 A.
This model has dimensions of approximately 53.5 mm in length, 63 mm in width, and 104.7 mm in height.
The maximum operating temperature for the PMA50A480 is 60°C.
It features a DIN rail mounting design, allowing for easy installation in control panels.
This monitoring relay operates at supply voltages of 440 V AC and 480 V AC.
The relay has a Single Pole Double Throw (SPDT) contact configuration.
The time delay can be adjusted from 0.1 to 10 seconds, allowing for responsive protection.
The PMA50A480 has an IP rating of IP40 and IP20, suitable for protected industrial environments.
It complies with EAC standards, ensuring quality and safety for its applications.
This model offers sensitivity for both overcurrent and undercurrent conditions.
The relay contact current ratings are 16 A and 5 A, depending on the configuration used.
This monitoring relay is manufactured in Italy.
