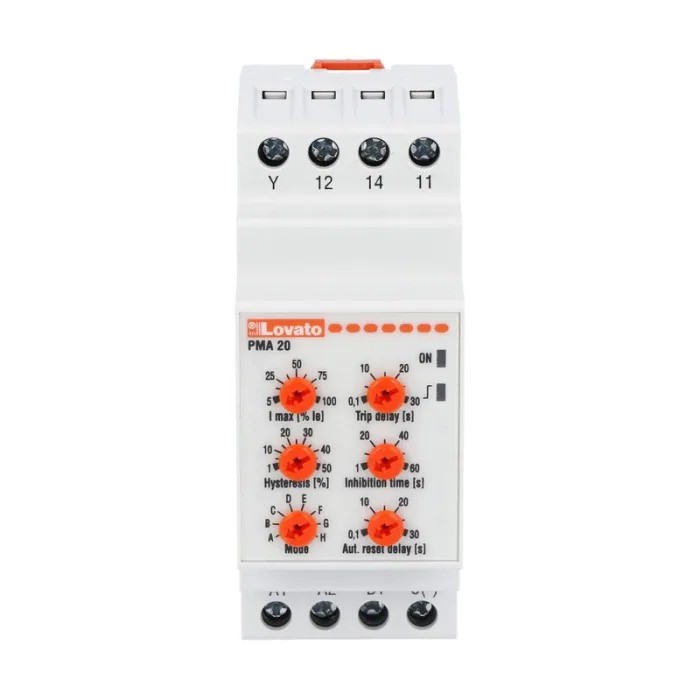

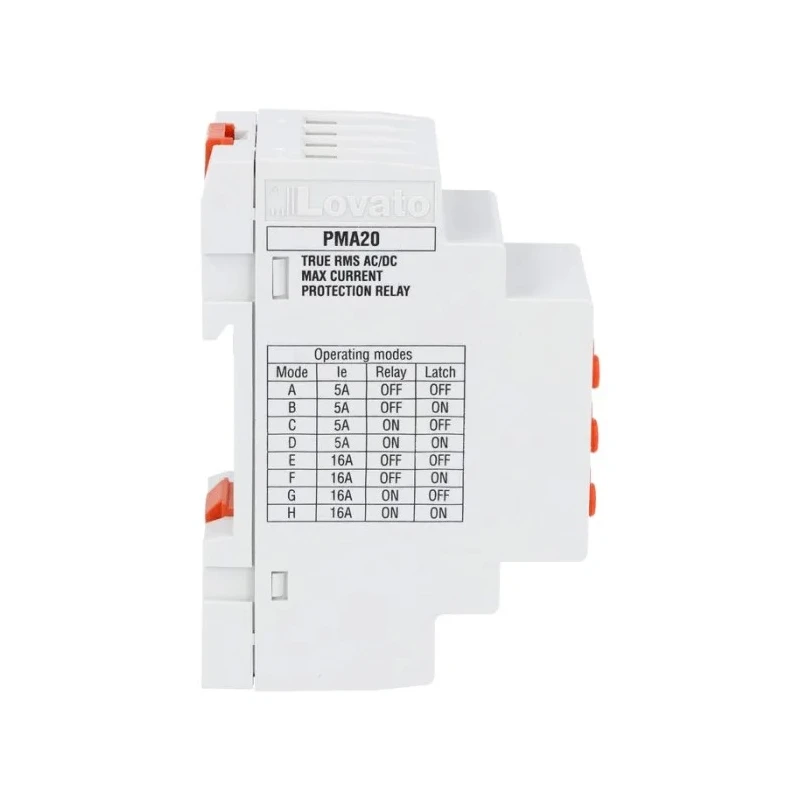

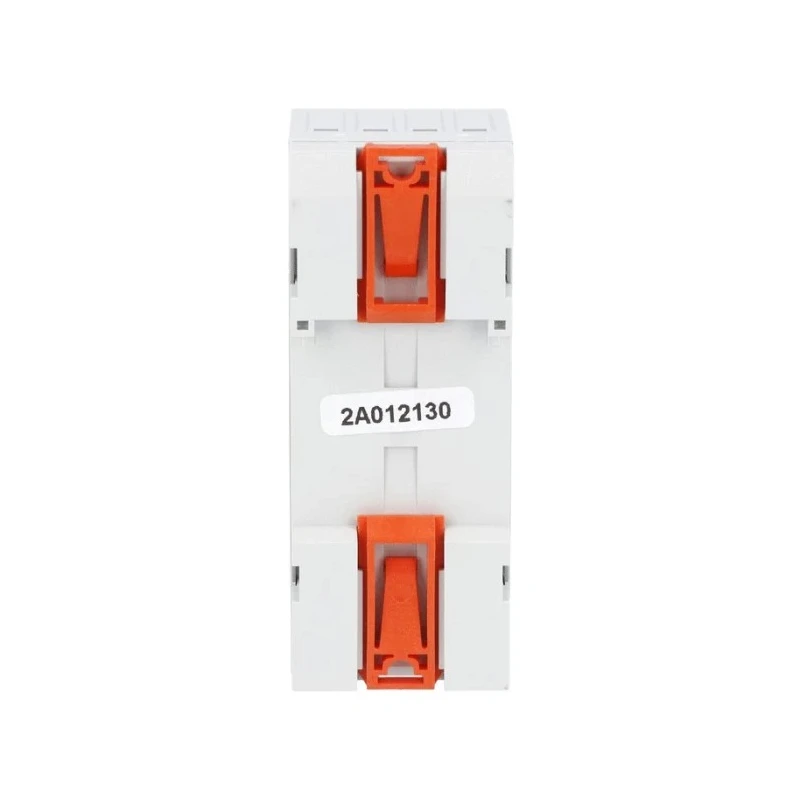

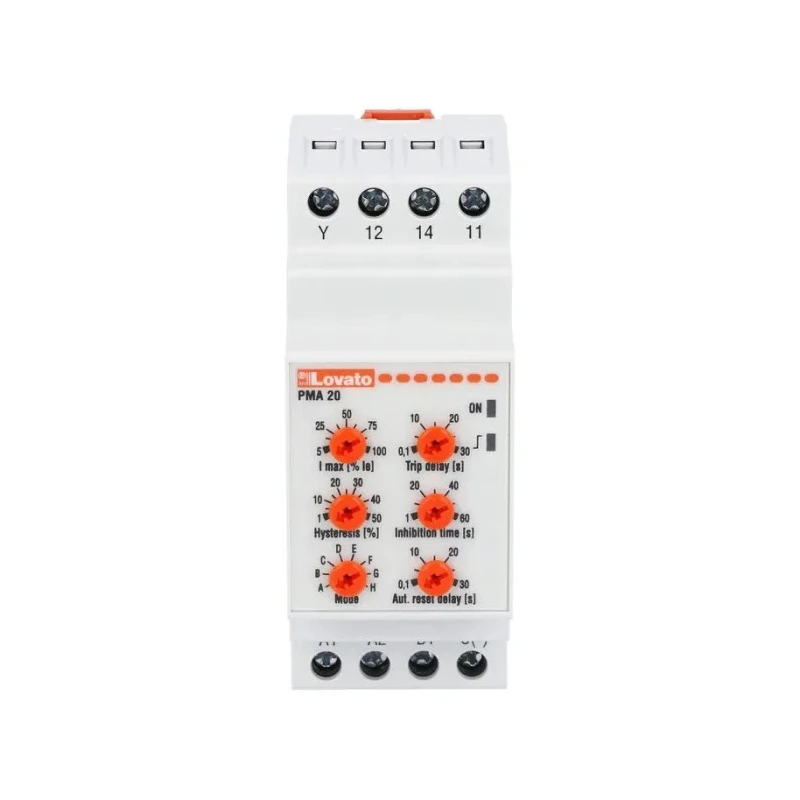

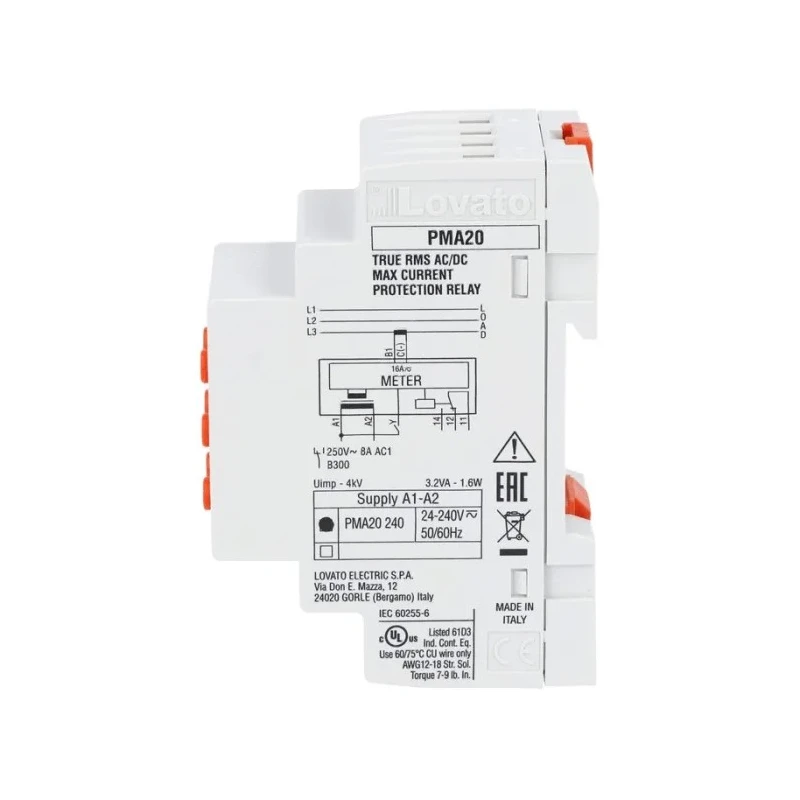

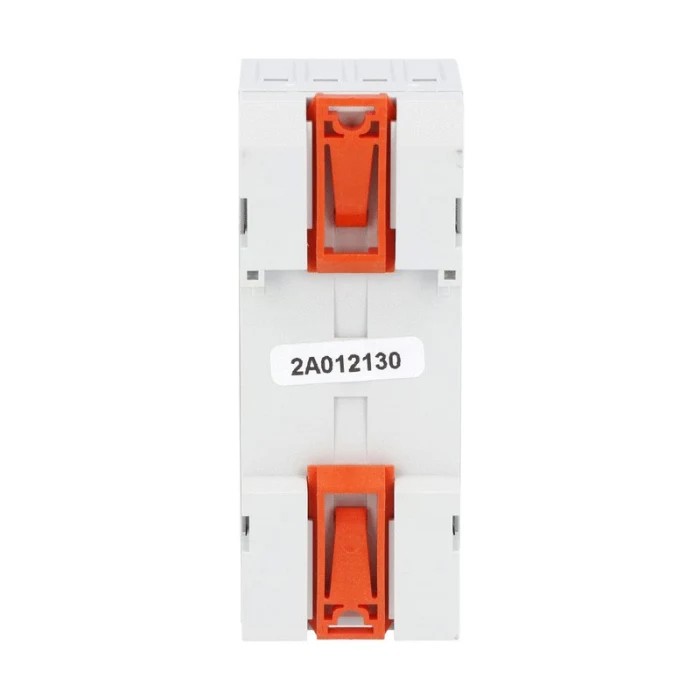

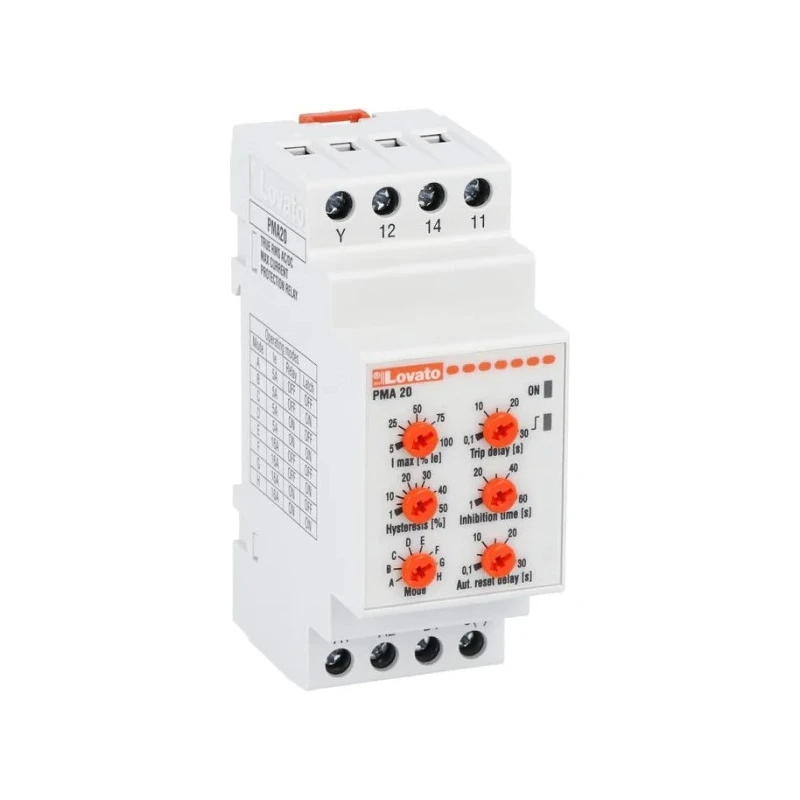

Lovato Electric Monitoring Relay 1 Phase SPDT DIN Rail Mount 0.25A to 16A PMA20240
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Lovato Electric |
| Height | 104.7mm |
| Length | 35.8mm |
| Model | PMA20240 |
| IP Rating | IP40, IP20 |
| Width | 64.9mm |
| Mount Type | DIN Rail |
| Series | PMA20 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Time Delay | 0.1 to 30 s |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | CSA, EAC, EN/IEC, UL |
| Switching Voltage | 400V ac |
| Supply DC Voltage | 0 V dc |
| Supply AC Voltage | 0V ac |
| Minimum Current Sensed | 0.25A |
| Maximum Current Sensed | 16A |
| Current Sensitivity | Overcurrent |
| Relay Contact Current | 16, 5A |
Key Features
- Offers overcurrent protection to prevent electrical equipment damage.
- Adjustable time delay from 0.1 to 30 seconds for flexible response control.
- Compact DIN rail mount design simplifies installation.
- Supports switching voltage up to 400V ac for varied applications.
- Equipped with screw terminals ensuring secure connections.
- IP20 rated terminals provide safe operation and reduce electrical hazards.
- Operates in temperatures ranging from -20 to +60°C, suitable for diverse environments.
- Compliant with CSA, EAC, EN/IEC, and UL standards.
Product Description
Lovato Electric PMA20240 Monitoring Relay is designed for industrial and electrical automation applications requiring reliable overcurrent sensing and protection. This device features a single-phase system with SPDT contact configuration, allowing versatile circuit control and protection in electrical panels.
The relay monitors current from a minimum of 0.25A to a maximum of 16A, making it suitable for varied industrial motors and equipment requiring precise current management. Its adjustable time delay range of 0.1 to 30 seconds enables customized responses to overcurrent situations, enhancing system safety and operational flexibility.
Its compact design enables easy and efficient DIN rail mounting, ideal for panel installations and integration into industrial automation systems. With screw terminals and IP20 rated protection on terminals, it assures safe electrical connections and reduces risk during operation.
Operating reliably within temperatures from -20°C to +60°C, it is well-suited for a wide range of environmental conditions. The switching voltage capacity of 400V ac supports robust operational demands across industrial circuits.
The PMA20240 conforms to international safety and quality standards, including CSA, EAC, EN/IEC, and UL, ensuring dependable performance and compliance with industrial regulations.
This monitoring relay is essential in electrical systems for early detection and mitigation of overcurrent events, safeguarding equipment from damage and downtime. It is widely applicable in electrical panel monitoring, single-phase motor protection, and industrial automation frameworks.
Offers overcurrent protection to prevent electrical equipment damage. Adjustable time delay from 0.1 to 30 seconds for flexible response control. Compact DIN rail mount design simplifies installation. Supports switching voltage up to 400V ac for varied applications.
Equipped with screw terminals ensuring secure connections. IP20 rated terminals provide safe operation and reduce electrical hazards. Operates in temperatures ranging from -20 to +60°C, suitable for diverse environments.
Compliant with CSA, EAC, EN/IEC, and UL standards. Explore the complete range of Monitoring Relays and electrical components suitable for industrial and automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monitoring relay can sense currents from a minimum of 0.25A to a maximum of 16A, making it suitable for various industrial applications.
The PMA20240 features an adjustable time delay ranging from 0.1 to 30 seconds, allowing for flexible response control to overcurrent situations.
It supports a maximum switching voltage of 400V ac, which is suitable for a variety of industrial applications.
This model is designed for DIN rail mounting, which simplifies installation in electrical panels.
The PMA20240 operates reliably within a temperature range of -20°C to +60°C, making it suitable for diverse environmental conditions.
This monitoring relay features a single-phase SPDT (Single Pole Double Throw) contact configuration, allowing versatile circuit control.
It is equipped with screw terminals, ensuring secure electrical connections and reducing risk during operation.
This monitoring relay is compliant with CSA, EAC, EN/IEC, and UL standards, ensuring it meets international safety and quality regulations.
The dimensions of this model are 104.7mm in height, 64.9mm in width, and 35.8mm in length.
The relay contact current rating for the PMA20240 is 16A, with an additional rating of 5A for different applications.
The Lovato Electric Monitoring Relay PMA20240 is manufactured in Italy.
The terminals of the PMA20240 have an IP20 rating, providing protection against accidental contact with solid objects.
