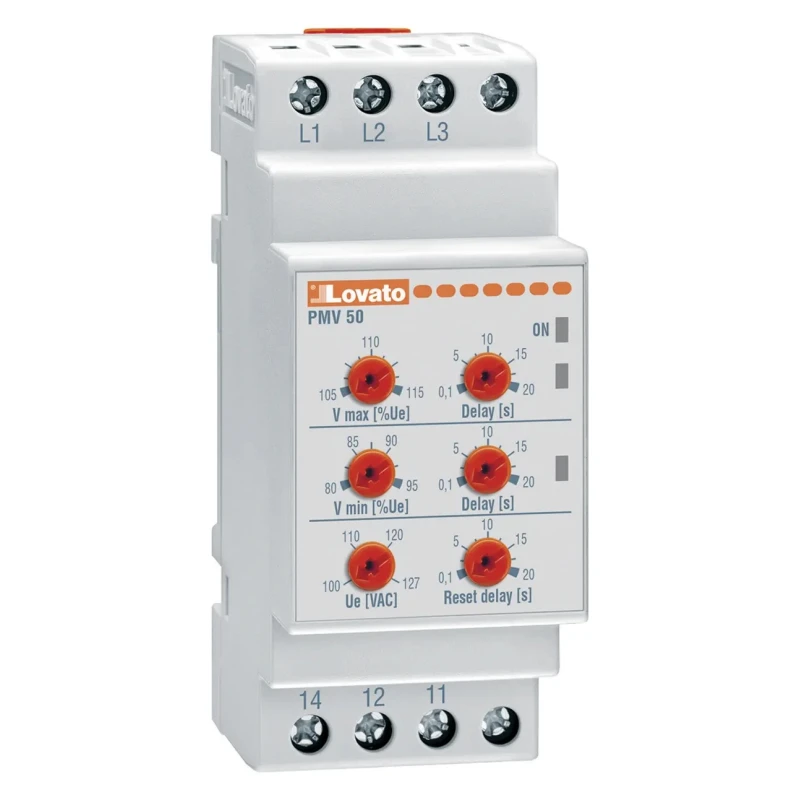

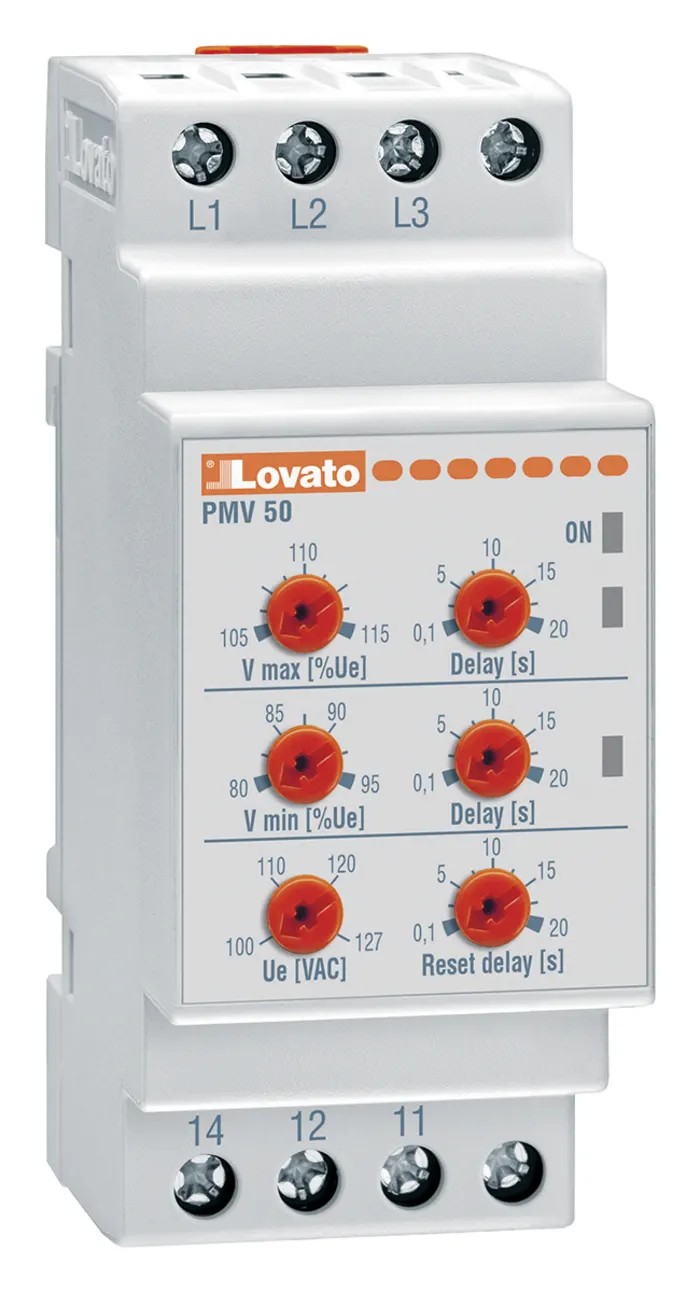

Lovato Electric 3 Phase SPDT Monitoring Relay, DIN Rail Mount, 208V/240V AC PMV50A240
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Lovato Electric |
| Height | 104.7mm |
| Length | 35.8mm |
| Model | PMV50A240 |
| IP Rating | IP40, IP20 |
| Width | 64.9mm |
| Mount Type | DIN Rail |
| Series | PMV50 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Compliant with Standards | IES/EN 60255-5 |
| Electrical Phase | 3 |
| Switching Voltage | 400V ac |
| Contact Current | 8A |
| Supply AC Voltage | 208, 240V ac |
| IEC protection | IP40 on front and only when placed in an IP40 enclosure or control board |
Key Features
- The relay monitors minimum and maximum voltage and protects against phase and neutral loss.
- It features configurable rated voltage and excellent tripping accuracy.
- Modular DIN 43880 housing with IP40 front protection and IP20 at terminals.
- Suitable for industrial electrical control applications and voltage monitoring.
- Compact dimensions with 104.7mm height, 64.9mm width, and 35.8mm length.
- Contact current rating is 8A with switching voltage up to 400V AC.
- Screw terminal connection for secure wiring.
- Conforms to international standards including IEC/EN 60255-5, IEC/EN 61000-6-3, UL 508, and CSA C22.
Product Description
Lovato Electric PMV50A240 Monitoring Relay is a self-powered, three phase voltage monitoring device with SPDT contact configuration. Intended for DIN rail mounting in industrial environments, it operates at a supply voltage range of 208V to 240V AC. This relay is designed to detect minimum and maximum voltage conditions, phase and neutral loss, and incorrect phase sequence with high tripping accuracy and configurable rated voltage.
The product features a modular DIN 43880 housing that provides IP40 protection on the front when installed inside an IP40 enclosure or control board, while the terminals have IP20 protection. The relay supports connection via screw terminals and is capable of switching voltages up to 400V AC with a contact current rating of 8A.
Its compact design measures 104.7mm in height, 64.9mm in width, and 35.8mm in length, making it suitable for space-constrained panel installations. The relay complies with a broad range of industrial standards and approvals, including IEC/EN 60255-5, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, CSA C22, and RoHS regulations, ensuring reliable operation within demanding environments.
This monitoring relay is ideal for electrical, automation, and industrial control applications that require precise voltage monitoring and protection for 3-phase systems. The product is manufactured in Italy and supplied in new condition.
The relay monitors minimum and maximum voltage and protects against phase and neutral loss. Configurable rated voltage and excellent tripping accuracy enhance system reliability. Modular DIN 43880 housing with IP40 frontal protection and IP20 terminals.
Complies with international industrial standards and approvals. Compact physical dimensions facilitate ease of mounting on a DIN rail. SPDT contact configuration with screw terminal type connections. Contact current rating of 8A and switching voltage up to 400V AC.
Suitable for industrial, automation, and electrical panel applications. Manufactured in Italy, ensuring high-quality standards. Explore EnvMart’s extensive range of Monitoring Relays and electrical control components to find solutions tailored to your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monitoring relay operates at a supply voltage range of 208V to 240V AC.
The dimensions of this model are 104.7mm in height, 64.9mm in width, and 35.8mm in length.
The contact current rating of this relay is 8A.
It can switch voltages up to 400V AC.
This model is designed for DIN rail mounting.
It features screw terminals for secure wiring connections.
The relay has an IP40 rating on the front and IP20 rating at the terminals when installed in an appropriate enclosure.
It complies with international standards including IEC/EN 60255-5, IEC/EN 61000-6-3, UL 508, and CSA C22.
The maximum operating temperature is 60°C, while the minimum is +60°C.
This monitoring relay features a Single Pole Double Throw (SPDT) contact configuration.
It is suitable for industrial, automation, and electrical control applications that require voltage monitoring and protection for 3-phase systems.
This model is manufactured in Italy.
