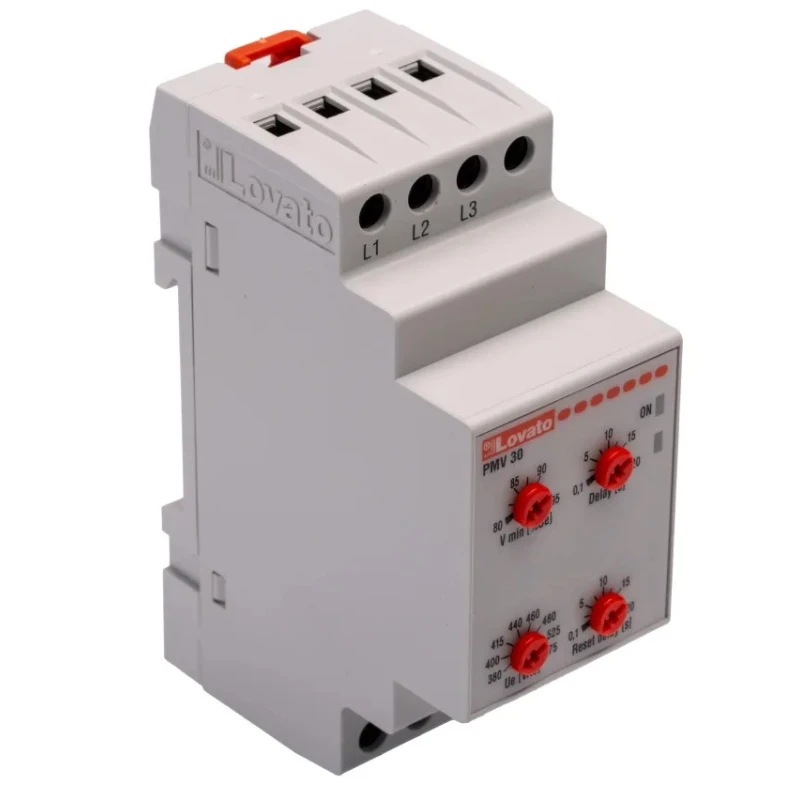

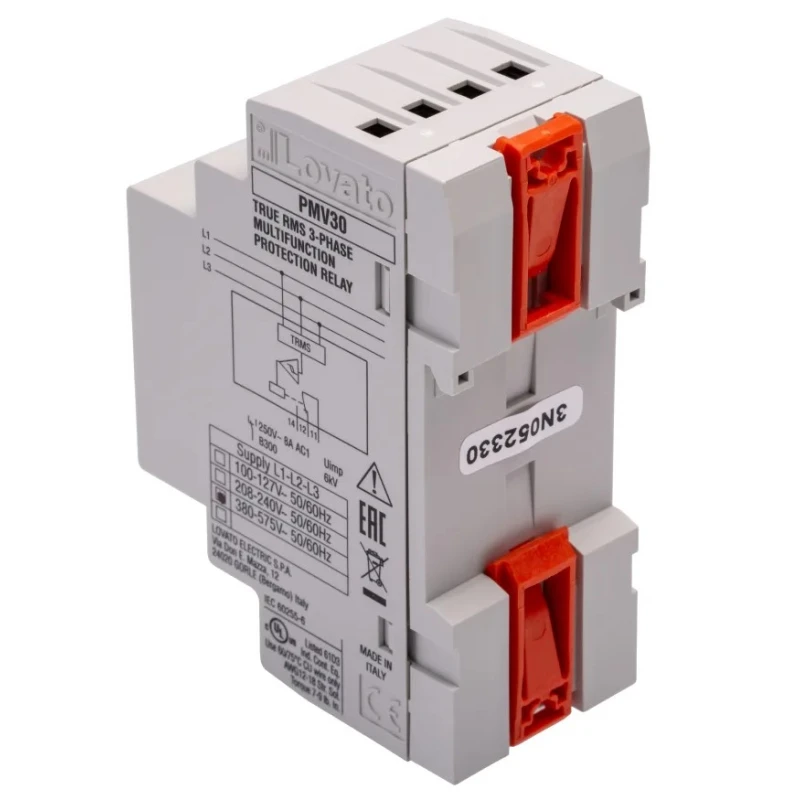

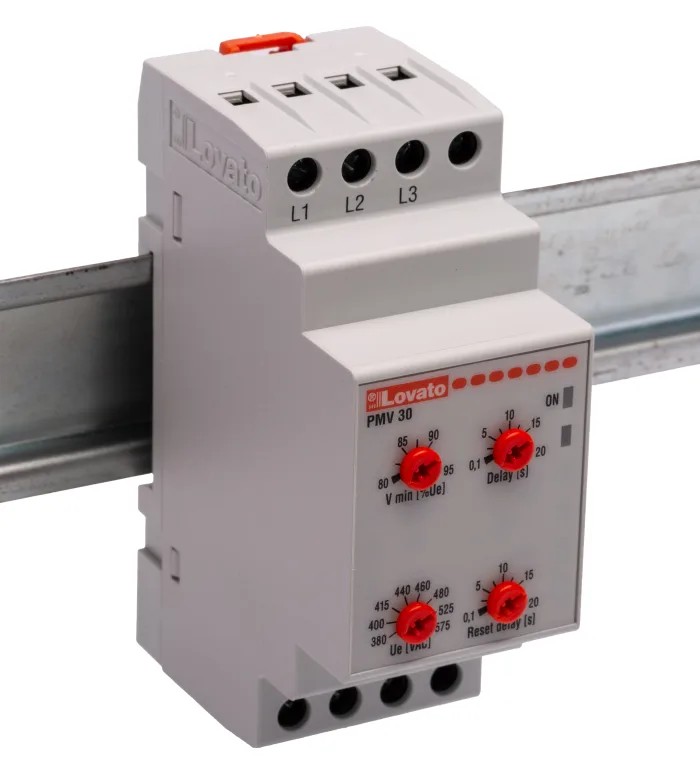

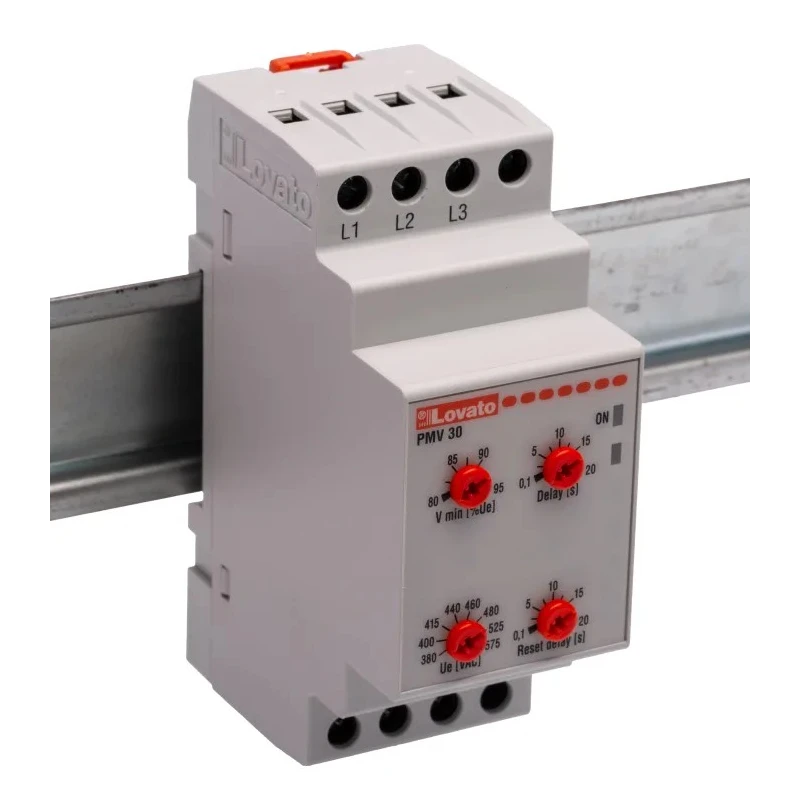

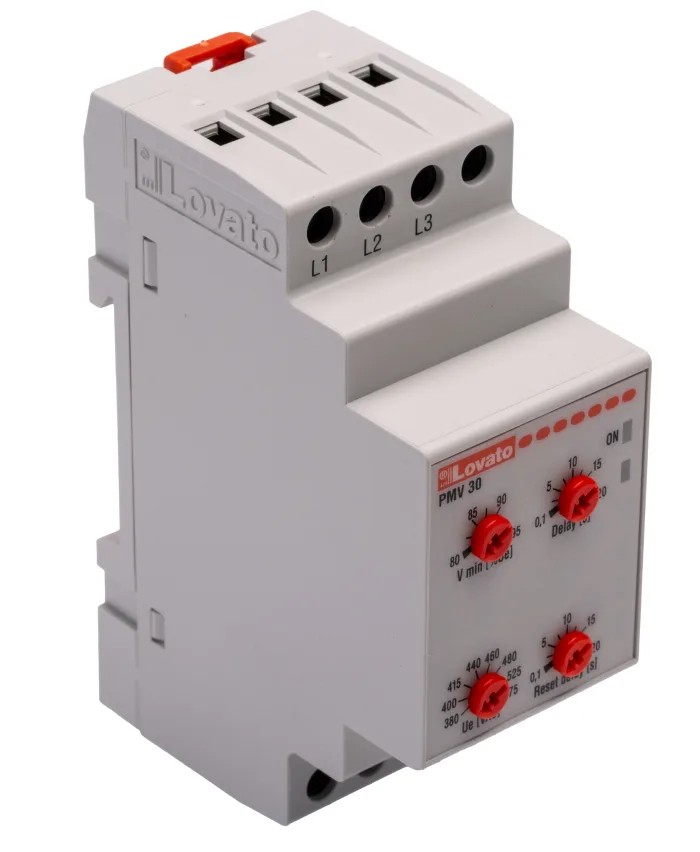

Lovato Electric Monitoring Relay 3 Phase SPDT DIN Rail Mount 208, 240V AC PMV30A575
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Lovato Electric |
| Height | 104.7mm |
| Length | 35.8mm |
| Model | PMV30A575 |
| IP Rating | IP20, IP40 |
| Width | 63.1mm |
| Mount Type | DIN Rail |
| Series | PMV30 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | EAC |
| Switching Voltage | 400V ac |
| Contact Current | 8A |
| Supply AC Voltage | 208, 240V ac |
Key Features
- SPDT contact configuration provides versatile switching options.
- DIN rail mount design allows easy installation and secure mounting.
- Self-powered design eliminates the need for external power supply.
- Wide operating temperature range ensures reliability in varying environments.
- Supports a maximum switching voltage of 400V AC for safe applications.
- Equipped with screw terminals for secure electrical connections.
- IP20 and IP40 rated for protection against solid objects.
- Compact size with dimensions 35.8 x 63.1 x 104.7 mm.
Product Description
Lovato Electric PMV30A575 monitoring relay is a highly reliable industrial component designed for voltage monitoring in 3 phase electrical systems. Featuring an SPDT (Single Pole Double Throw) contact configuration, it offers versatile switching functionality. The unit mounts easily on DIN rails, making installation straightforward in control panels and electrical enclosures.
This relay operates on 208 to 240V AC supply voltage and is self-powered, removing the need for additional power sources. It supports a maximum switching voltage of 400V AC and a contact current rating of 8A, ensuring robust operation under demanding electrical conditions.
Its screw terminal connections provide secure wiring, and the relay is rated IP20 and IP40, protecting internal components from solid foreign objects and physical access. With compact dimensions of 35.8 mm length, 63.1 mm width, and 104.7 mm height, it fits well in tight panel spaces.
The device is suitable for various industrial environments due to its wide operating temperature range of -20 °C to +60 °C. This makes it resilient against fluctuating ambient conditions commonly encountered in manufacturing, electrical automation, and power distribution setups.
The PMV30 series by Lovato Electric is well-regarded for its durability and precision in monitoring three-phase voltages, making it essential for maintaining electrical system safety, efficiency, and performance.
SPDT contact configuration for versatile switching capability. DIN rail mounting ensures secure and easy installation. Self-powered operation eliminates external power requirements. Wide operating temperature range of -20 °C to +60 °C.
Maximum switching voltage of 400V AC supports demanding applications. Screw terminal type for reliable electrical connections. IP20 and IP40 protection rating against foreign objects and access. Compact dimensions fit standard DIN rail enclosures.
Ideal for industrial voltage monitoring in 3-phase electrical panels.
This monitoring relay is well suited for industrial, electrical automation, manufacturing, and commercial power monitoring applications. For more products within this category, explore the Monitoring Relays section at EnvMart for reliable component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a supply voltage range of 208 to 240V AC.
It supports a maximum switching voltage of 400V AC.
The contact current rating is 8A, ensuring robust operation in various applications.
It features an SPDT (Single Pole Double Throw) contact configuration for versatile switching options.
The dimensions are 35.8 mm in length, 63.1 mm in width, and 104.7 mm in height.
It is designed for DIN rail mounting, allowing for easy installation in control panels and electrical enclosures.
It has a wide operating temperature range of -20 °C to +60 °C, making it suitable for various industrial environments.
It is equipped with screw terminals for secure electrical connections.
The relay is rated IP20 and IP40, providing protection against solid objects and physical access.
It meets EAC standards, ensuring compliance with relevant regulations.
It is suitable for industrial voltage monitoring in three-phase electrical panels, including applications in electrical automation and manufacturing.
This model is part of the PMV30 series by Lovato Electric, known for its reliability in voltage monitoring.
