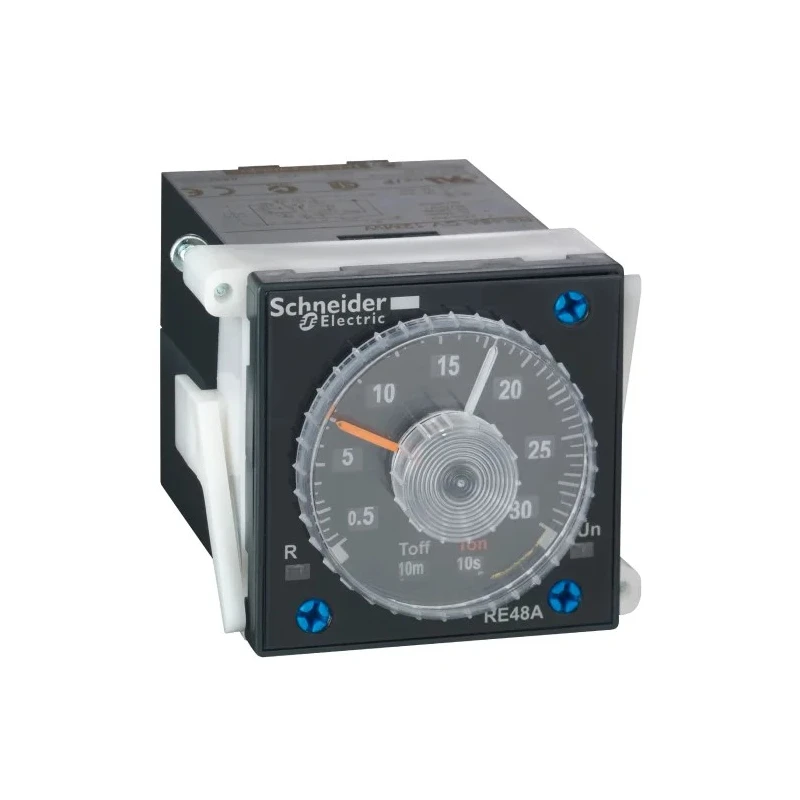

Schneider Electric Harmony Time Series Panel Timer Relay, 2-Contact, 24 to 240 V dc/ac, 250 V ac/dc Switching RE48ACV12MW

Schneider Electric RE48ACV12MW Harmony Time Series Panel Timer Relay is a reliable electrical component designed for industrial and commercial panel installations. With a compact 48 x 48 mm dimension, it is optimized for panel mounting and base mounting applications where space is limited but robust timing functions are required.

The device includes two changeover contacts in a DPDT configuration, capable of switching currents up to 5 amps at voltages up to 250 V ac/dc. It supports a broad supply voltage range from 24 to 240 V dc and 24 or 240 V ac, providing flexibility for various electrical systems.

Its timing adjustment spans an extensive range from 0.02 seconds to 300 hours, making it suitable for applications needing precise and extended time delays. The relay is equipped with Swedish Pipe timing adjustment for accurate control.

Built-in features include LED status indication for easy operational monitoring, and a self-extinguishing housing rated at IP40 for the body and IP50 for the front face to protect against dust and potential ingress in typical industrial environments.

The relay operates effectively in temperature conditions from minus 20 degrees Celsius to 50 degrees Celsius, ensuring durability across a wide ambient temperature range. The 11-pin plug-in sub-base facilitates straightforward installation and maintenance, reducing downtime.

This timer relay meets multiple major international standards including cULus, CSA, IEC 60669-2-3, EN 50082-1/2, C-Tick, 89/336/EEC, EN 50081-1/2, IEC 61812-1, 93/68/EEC, and 73/23/EEC, confirming its compliance to global quality and safety benchmarks.

Manufactured in Indonesia, it provides a consistent, high-quality solution for automation and control systems in industrial, electrical panels, manufacturing, and HVAC applications.

The relay features a compact 48 mm by 48 mm design suitable for panel installation. Equipped with two changeover (DPDT) contacts rated at 5 amps. Operates reliably in temperature ranges from -20°C up to 50°C. Provides IP40 housing protection and IP50 front face protection.

Features LED status indication and self-extinguishing housing material. Includes an 11-pin plug-in sub-base for easy installation and maintenance. Conforms to multiple international standards including UL, CSA, IEC, and EN certifications.

Originates from Indonesia, ensuring quality manufacturing standards. Explore our extensive collection of Timer Relays and industrial automation components on EnvMart for reliable and efficient automation solutions.
