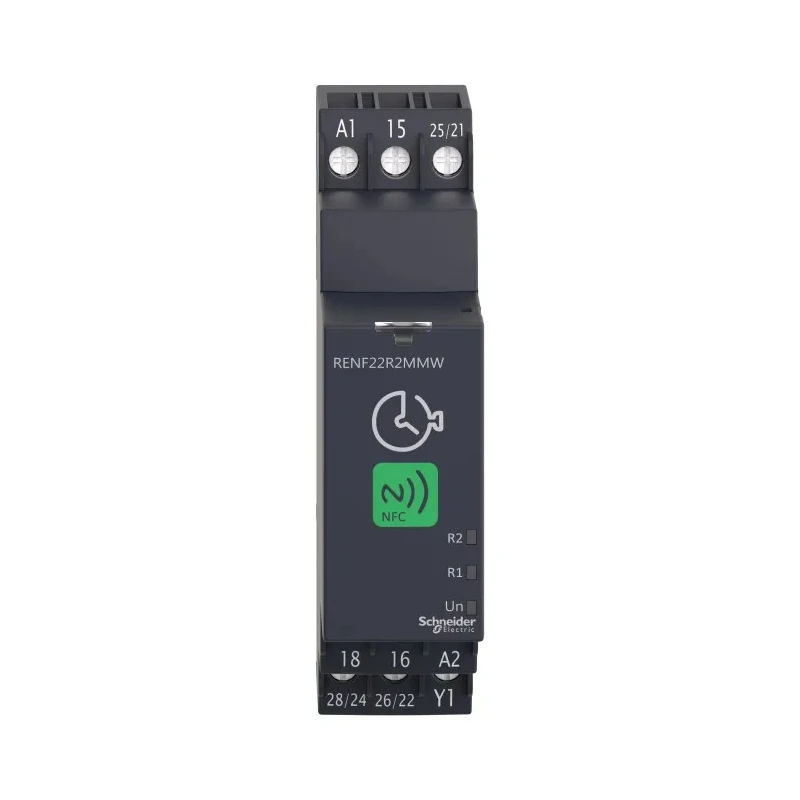

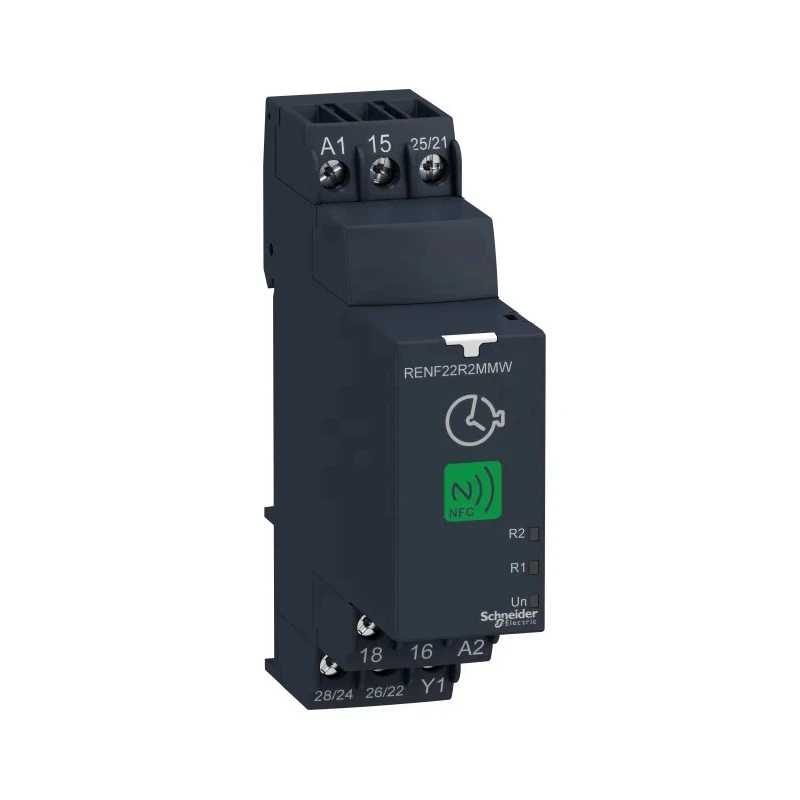

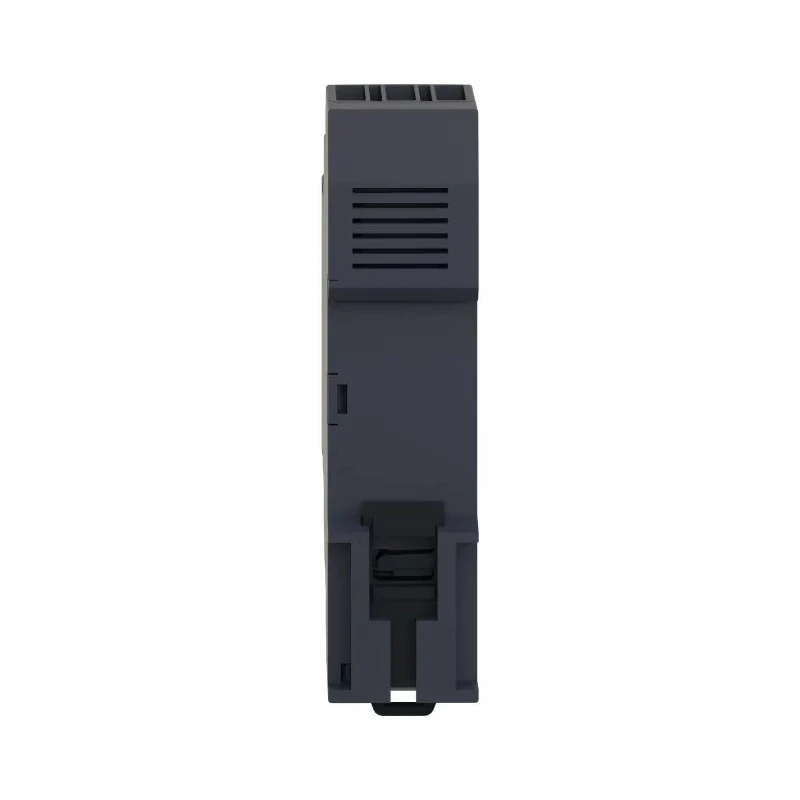

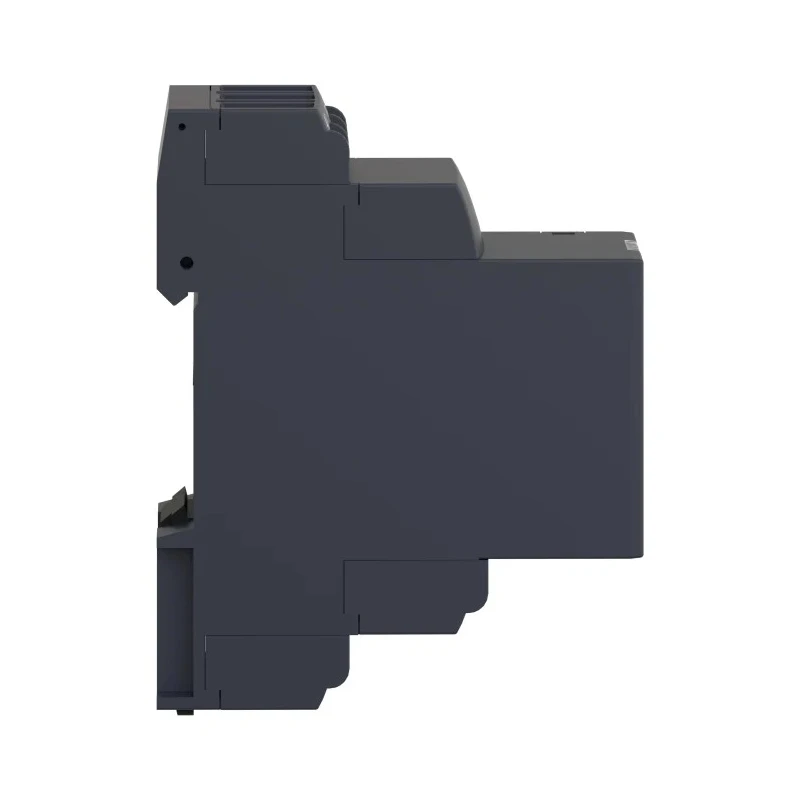

Schneider Electric Harmony Time Series DIN Rail Multifunction Timer Relay 2-Contact 24 to 240 V dc 12V ac 240 V RENF22R2MMW

Schneider Electric RENF22R2MMW is a multifunction DIN Rail Timer Relay designed for precise timing control in industrial automation systems. It features two contacts with a switching voltage of up to 250 V, supporting both DC and AC supply voltages ranging from 24 to 240 V dc and 12 to 240 V ac. The timer relay offers a wide timing range from 0.1 seconds to 100 hours, suitable for various timing and sequencing applications across manufacturing, electrical control panels, HVAC systems, and process automation.

The device mounts easily onto standard DIN rails and includes screw terminal connections for secure electrical wiring. Its slim profile with a width of 22.9 mm occupies minimal panel space, making it ideal for densely populated control cabinets. The robust design supports operation in temperatures from -20°C up to 60°C and provides IP ratings of IP40 and IP20 for ingress protection.

Equipped with an advanced multifunction mode featuring 28 timing functions, this relay enables flexible timing sequences such as delay on operate, delay on release, interval, cyclic operations, and more, making it indispensable for many industrial and commercial control panels. The DPDT contact configuration rated for 8 A contact current ensures compatibility with a wide range of loads.

Innovatively, this model integrates NFC (Near Field Communication) technology, allowing users to configure parameters and diagnose relay status conveniently via the Zelio NFC Android mobile app, which can be downloaded from the Google Play Store. This feature significantly reduces setup time while enhancing accuracy and security with password-protected settings.

The product is certified under multiple international standards including IEC 61000 series, CE, CSA, UL, CCC, DNV-GL, and others, ensuring compliance and reliability in global industrial applications. Made in Indonesia, it reflects Schneider Electric's commitment to quality and performance.

This Timer Relay is widely used in industrial automation, manufacturing processes, electrical panels, HVAC controls, water treatment plants, and other demanding commercial and industrial environments requiring durable, precise timing solutions.

Designed for industrial automation timing applications with multifunctional capabilities. Compact DIN rail mount with a slim 22.9 mm width for easy panel integration. Equipped with DPDT contact configuration and rated for 8 A contact current.

Operates accurately within a temperature range of -20°C to 60°C. Features screw terminals and LED status indication for easy wiring and monitoring. Supports 28 timing functions ensuring versatile operation modes. Protected with IP40 and IP20 ratings for dust and ingress resistance.

Innovative NFC technology enables configuration and diagnostics via the Zelio NFC Android app. Complies with multiple international standards including IEC, CE, UL, CSA, and more. Explore the extensive range of Schneider Electric industrial relays and timers available in the EnvMart catalog for your automation solutions.
