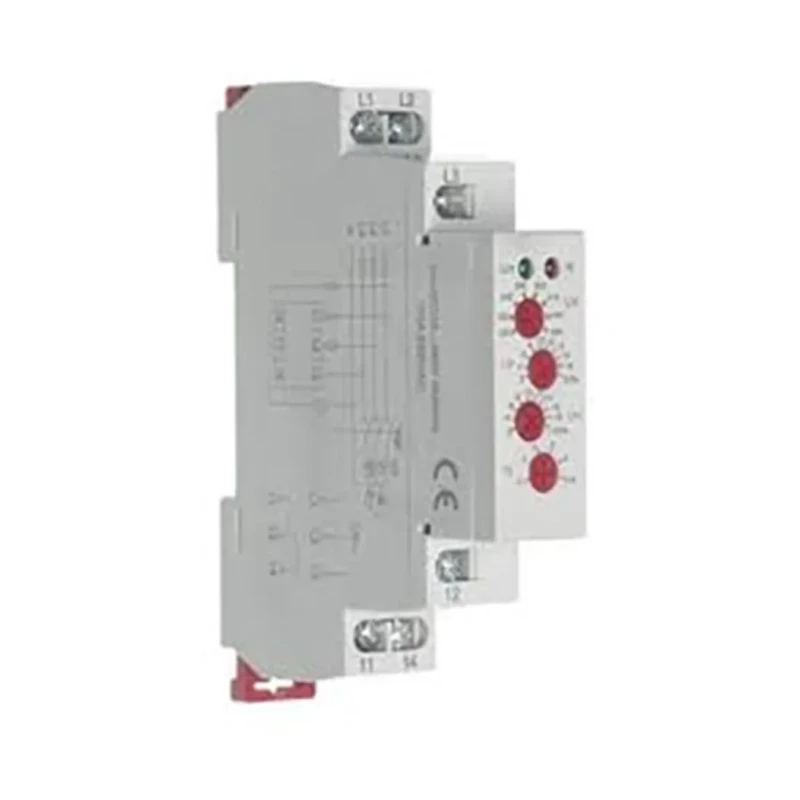

Relpol Monitoring Relay, 3 Phase, Maximum of 552 V Monitor Range, SPDT Contact Configuration, DIN Rail Mount, 220V ECPF05

Relpol ECPF05 is a high-quality monitoring relay suitable for monitoring three-phase electrical supplies in industrial, commercial, and automation environments. This relay features a single-pole double-throw (SPDT) contact design, allowing for effective control and signal switching within electrical circuits. Its DIN rail mounting facilitates quick and secure installation within control panels adhering to DIN 43 880 standards.

The relay supports a maximum monitoring voltage of 552 V, making it ideal for higher voltage applications. Designed for flexibility, it operates at multiple supply voltages including 220 V AC, 460 V AC, and 24 V DC, ensuring compatibility with diverse electrical network systems.

Reliability is enhanced by screw-type terminal connections assuring solid mechanical and electrical contacts. The relay is rated for contact current up to 10 A and has a power consumption of just 500 mW.

Environmental protection is addressed with IP20 and IP40 ratings, providing adequate defense against dust ingress typical in industrial control panels. It operates efficiently within a temperature range up to +55°C, suitable for many factory and electrical enclosure conditions.

Its compact form factor with dimensions 90 mm (height) × 64 mm (width) × 18 mm (length) helps optimize panel layouts and reduces space usage. This model adheres to relevant industry standards including RoHS compliance and standards 6-60255 EN/I and 1-EN61010/IEC for safety and quality assurance.

The relay supports three-phase electrical monitoring for reliable phase sequence and failure detection. SPDT contact configuration enables versatile switching applications. DIN rail mounting ensures standardized and space-efficient installation.

Multiple supply voltage compatibility at 220 V AC, 460 V AC, and 24 V DC. Maximum 552 V monitoring voltage range for comprehensive voltage oversight. Low power consumption of 500 mW conserves energy in continuous operation.

Screw terminals provide secure and easy wiring interface. IP20 and IP40 ratings offer protection against mechanical hazards and dust. Compact dimensions reduce control panel space requirements. Compliant with RoHS and international safety standards.

Relpol ECPF05 monitoring relays are highly suited for industrial, manufacturing, electrical control, and automation applications where monitoring of three-phase voltage supply is critical in ensuring system integrity and operational safety.

Incorporate this Monitoring Relay into your electrical control panels for effective and dependable phase monitoring solutions available through EnvMart's electrical components category.
