Ledil Strada Series 4-Way LED Lens Square Beam C14556_STRADA-2X2-TF

Ledil C14556_STRADA-2X2-TF is a Strada Series 4-Way LED Lens featuring a square beam emission pattern, specifically engineered for street lighting and other high mounting height applications.

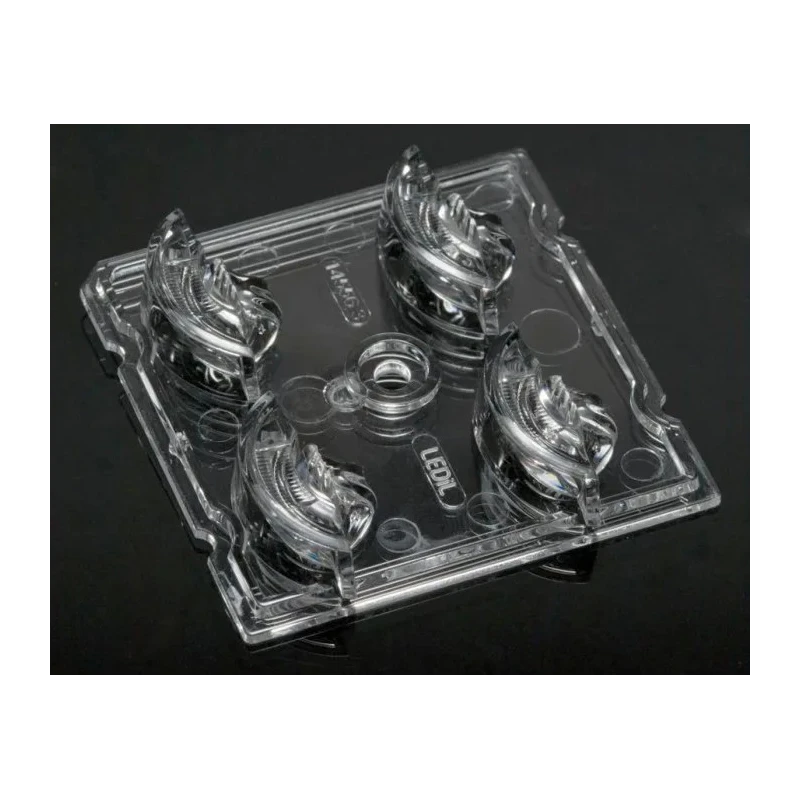

This module includes four lenses integrated into a compact 50 mm by 50 mm array with a height of 8.73 mm, allowing for cost-effective and easier installation compared to separate individual lenses. The lens is made from high-quality optical grade Polymethyl Methacrylate (PMMA), providing excellent UV and temperature resistance, ideal for outdoor environments.

The lens module includes a central mounting hole for a screw, with four additional screws usable to secure adjacent modules, thereby enhancing robustness and sealing efficiency.

The STRADA 2x2 lens module is suitable for multiple industrial and commercial applications including street lamps, road lighting, and warehouse aisle illumination, where a uniform square light distribution is desired.

The product is manufactured in China by the reputable Ledil brand known for LED lighting components. The lens module includes 4 individual lenses within a single square array for effective light distribution. Constructed from durable PMMA material suited for environmental stress.

Designed with screw fixing for secure and flexible mounting. Compact dimensions: 50 mm length, 50 mm width, and 8.73 mm height. Optimized for street lighting and other high-mount LED applications. Offers a clear lens style to maximize light transmission.

Explore more advanced LED lens solutions in the LED Lenses & Reflectors category at EnvMart for industrial and commercial lighting needs.
