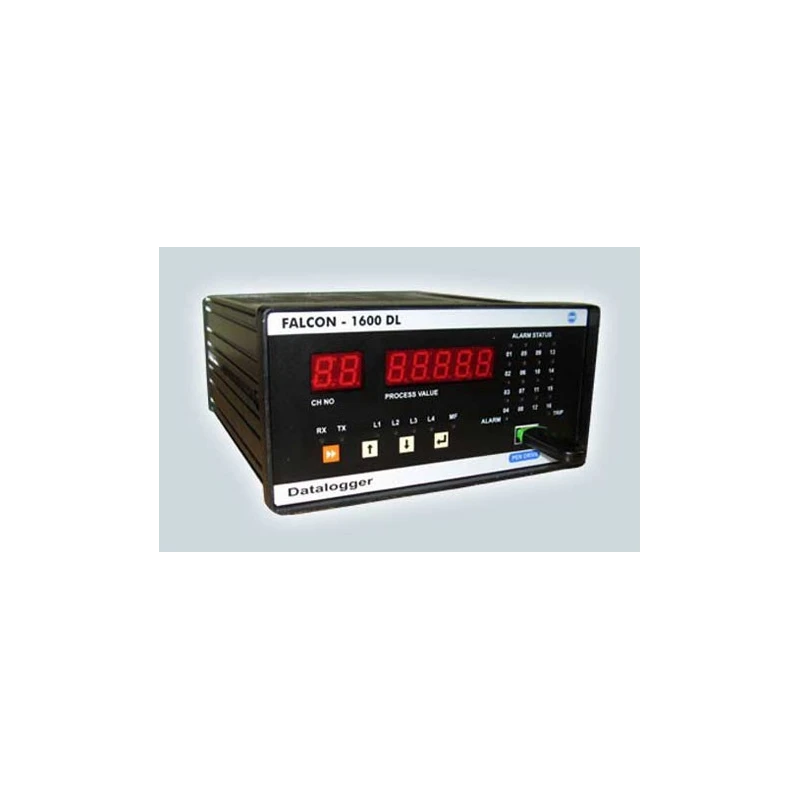

Falcon 4 Channel Digital Data Logger 1600DL
Specifications
| Resolution | 12 Bit. RTD PT100- 0.1C T/C JKRSBE- 1C|T type 0.1C| Volt 0.001| mA- 0.01 |
|---|---|
| Accuracy | 0.5% of FSR 1 LSD 1C for CJC. |
| Display | 7 Segment RED LED 2 - Digit Channel no. 5 - Digit Process Value including sign. |
| Connections | All Male / Female connectors for Inputs and supply. Screw type for Common Alarm. D type for RS232 / Printer and Pen drive attachment. |
| Input | RTD Pt100 (3wire)| 4 - 20 mADC| DCVolt - 1V 4V| Thermocouples JKRSTBE fixed for each 4 channels. (Combination factory set) |
| Keyboard | 4 Keys tactile keyboard |
| Supply | 230 VAC 10 % 50 Hz Optional - 110 VAC 10%50 Hz |
| Alarm Output | One common alarm relay output contact rating 230 VAC1 Amp. |
| Cabinet | Panel mounting type Bezel 96 x 192mm (H x W) Depth 195 mm Cutout 92 x 186 mm (H x W) |
| Channels | Max 16 Channels in step of 4 Channels |
| LED indications | LED indication for Serial / Memory Full / Common Relay and Control/ Alarm outputs |
| Printing | Auto/ Manual Printing- Centronics compatible parallel printer port for DOT matrix printer. Print interval 1 to 240min. Printout format standard. Customised header information optionally available. |
| Scan Rate | 125 msec per channel (4 channels in 2 seconds) |
| Serial Port | RS232 port with ASCII Protocol. Optional- RS485 with MODBUS RTU protocol with / without backup recovery. |
| Control Output ( Optional ) | Digital output for each channel working on individual HI/LO limits To be used with external relay module.- Hi/Lo limits for each channel are programable through keyboard |
Key Features
- Ruggedised, State-of-the-art Micro-controller based system.
- Accepts Analog input mA / RTD / Volt / Thermocouple in steps of 4 channels.
- Control Output for each channel, with indication on front - Optional.
- User configurable span for mA / Volt inputs.
Product Description
Digital Data Logger - 4 Channel - FALCON 1600DL, FALCON 1600 DL is a highly versatile and economical Data logger having Analog Inputs with an RS232 port for communication. It can be used as:1) Standalone Datalogger2) Datalogger with annunciator3) Datalogger Controller4) Datalogger with SCADA ConnectivityFALCON 1600 DL has very high logging memory so data of several days can be recorded. Analog input to FALCON 1600 DL can be mA / RTD (PT100, 3 wire) / Thermocouple or Voltage.
- Datalogging and Printing.
- Pendrive interface - Optional.
- Serial communication on RS232 port ASCII protocol. Optionally you can get MODBUS protocol with / without backup recovery.
Data logging:Realtime data logging of 13440 readings per channel in internal memory and almost 100 million readings stored on pendrive. Logging interval Min/ Sec. Data logging Enable / Disable facility is available. Optional Data backup facility for SCADA application.
