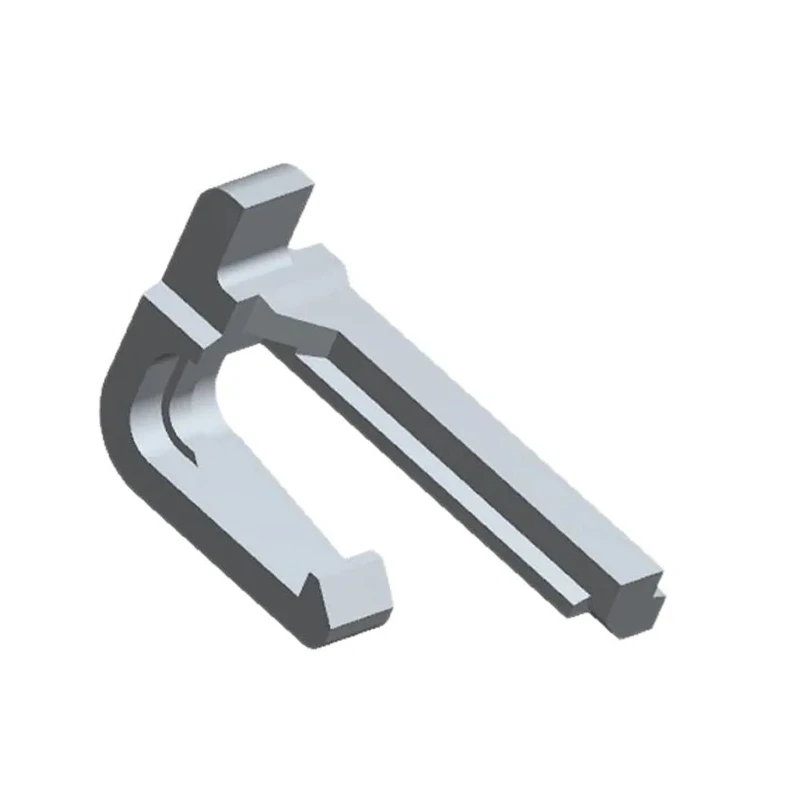

Molex Connector Housing for Use with 560123 DuraClik ISL Terminal Housing 560125-0400
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Molex |
| Series | DuraClik ISL |
| For Use With | 560123 DuraClik ISL Terminal Housing |
| Standards/Approvals | SAE Automotive vibration standards, RoHS |
Key Features
- Offers low profile, space-saving design suitable for compact applications.
- Includes polarization and keying for accurate mating.
- Inner positive locking system ensures secure retention with audible confirmation.
- Supports Independent Secondary Lock terminal retainers providing up to 50N retention force per circuit.
- Meets SAE Automotive vibration standards and complies with RoHS requirements.
- Operates reliably at temperatures up to 125°C for automotive passenger compartments.
- Ideal for automotive LED lighting, steering wheels, air conditioning, and shift lever applications.
Product Description
The Molex 560125-0400 Connector Housing is engineered for use with the 560123 DuraClik ISL Terminal Housing series, providing a durable and reliable 2.0mm pitch wire-to-board receptacle housing solution. Featuring an Independent Secondary Lock (ISL) system, it ensures secure terminal retention with up to 50N force per circuit, meeting rigorous automotive standards including ES91500-03 high-retention specifications.
This low profile and space-saving design is optimized for use in high vibration and high temperature environments, operating up to 125°C, making it ideal for automotive passenger compartments. The housing incorporates polarization and keying features that allow accurate and easy mating, along with an inner positive locking system confirmed by an audible 'click' for secure connection assurance.
Applications span across automotive LED lighting modules, steering wheels, air conditioning systems, and shift levers, where vibration resistance and retention reliability are critical. The product supports compatibility with Molex 5602125 Series ISL terminal retainers and 560124 Series ISL terminals, designed for automotive performance.
Molex's DuraClik ISL series adheres to SAE automotive vibration standards and complies with RoHS regulations, ensuring quality and environmental compliance. The housing is manufactured in Korea, Republic Of, delivering trusted origin and quality.
Low profile and space-saving 2.0mm pitch design. Polarization and keying for precise mating alignment. Inner positive locking system with audible retention confirmation. Independent Secondary Lock terminal retention up to 50N per circuit.
Compliance with SAE automotive vibration standards and RoHS. Rated for operating temperatures up to 125°C. Ideal for automotive LED lighting and high vibration automotive components.
These Connector Housings are an essential component in industrial and automotive electrical systems where secure and reliable wire-to-board connections are paramount. Explore more Molex products and connectors in our Electronics & Electricals catalog for diverse application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex Connector Housing features a 2.0mm pitch design, making it suitable for compact applications.
It operates reliably at temperatures up to 125°C, making it suitable for use in automotive passenger compartments.
This model incorporates an inner positive locking system that provides audible confirmation for secure retention.
It is designed for use with the 560123 DuraClik ISL Terminal Housing series.
The Independent Secondary Lock system provides up to 50N retention force per circuit, ensuring secure terminal retention.
It meets SAE automotive vibration standards and complies with RoHS requirements for environmental safety.
It is ideal for applications such as automotive LED lighting, steering wheels, air conditioning systems, and shift levers.
The connector housing is manufactured in the Republic of Korea.
Yes, it includes polarization and keying features for accurate and easy mating.
Key features include a low profile design, inner positive locking system, and compatibility with DuraClik ISL terminal retainers.
Yes, it is optimized for high vibration environments and meets rigorous automotive standards.
The audible 'click' confirms secure connection assurance when the terminals are mated properly.
