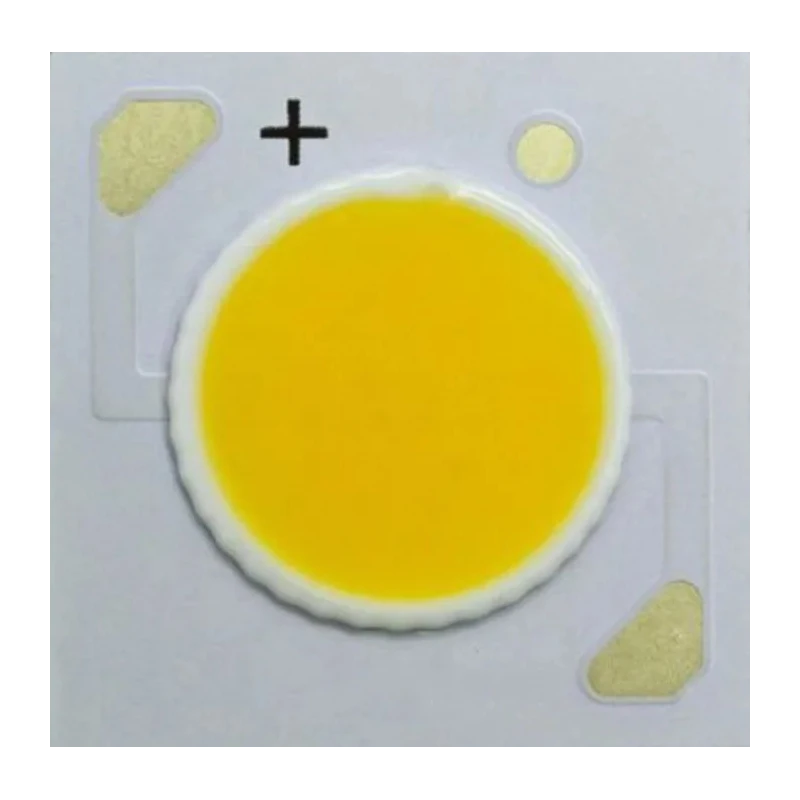

Cree LED High Lumen White CoB LED 3000K 80% CRI CXA1512-0000-000N00M230G
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Model | CXA1512-0000-000N00M230G |
| Packaging | Tray |
| Series | CXA |
| Maximum forward current | 1200mA |
| Viewing angle | 115 ° |
| Standards/Approvals | RoHS, REACH, UL Component (E349212), NEMA SSL-3 2011 |
| Colour Temperature | 3000k |
| LED Colour | White |
| Forward Voltage | 36V |
| Radiant Flux | 24W |
| Colour Rendering Index CRI | 80% |
| Typical Luminous Flux | 1563lm |
| Optical Source Diameter | 8.9mm |
| Drive current | 1200mA (18V), 600mA (37V) (maximum) |
| Forward voltage options | 18V and 37V |
Key Features
- High luminous flux of 1563 lumens ensures bright illumination.
- Maximum forward current rating of 1200mA for efficient performance.
- Optical source diameter of 8.9 mm for precise light output.
- Wide 115° viewing angle suitable for various lighting applications.
- Forward voltage of 36V for stable electrical operation.
- Complies with RoHS, REACH, UL (E349212), and NEMA SSL-3 2011 standards.
- Available in tray packaging for ease of handling and use.
- Ideal for lamp retrofit, luminaire designs, GU10 bulbs, and commercial downlights.
Product Description
Cree LED CXA1512-0000-000N00M230G is a high-flux White CoB LED featuring a luminous flux of 1563 lumens and a color temperature of 3000K with an 80% Color Rendering Index (CRI). This compact LED array has an 8.9 mm optical source diameter and a wide 115° viewing angle, delivering consistent high-quality light in lighting-class reliability products.
The device supports a maximum forward current of 1200mA and operates at a forward voltage of 36V, making it stable and efficient for various industrial and commercial lighting applications. It complies with RoHS, REACH, UL component certification (E349212), and meets NEMA SSL-3 2011 standards ensuring safety and environmental compliance.
Packaged in trays, the CXA1512 devices eliminate the need for reflow soldering thanks to their single-package high lumen output and efficacy. Typical uses include lamp retrofits, commercial downlights, GU10 LED bulbs, and luminaire designs, benefiting industries such as manufacturing, commercial building lighting, and architectural illumination.
Key features include top-side solder connections, a thermocouple attach point, and availability in 2-step and 4-step color consistency options. Forward voltage options include 18V and 37V models, with a drive current maximum of 1200mA (18V) and 600mA (37V).
The CXA1512 series is engineered for both directional and non-directional lighting projects, combining practical design with superior photometric properties. This LED array is a reliable choice for electronic components, power connectors, and lighting component applications across industrial, commercial, and architectural sectors.
High luminous flux of 1563 lm ensures bright output. Maximum forward current of 1200mA supports efficient operation. 8.9 mm optical source diameter provides focused illumination. Wide 115° viewing angle enhances coverage.
Compliant with RoHS, REACH, UL, and NEMA standards. Tray packaging for convenient handling. Suitable for lamp retrofit, GU10 bulbs, and commercial downlights. 3000K color temperature for warm white lighting ambiance. Top-side solder connections and thermocouple attach point.
Explore more products in the LED Lighting Components category on EnvMart for enhanced industrial and commercial lighting solutions from reputable brands like Cree LED.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous flux of this model is 1563 lumens, ensuring bright illumination for various applications.
The color temperature of the CXA1512-0000-000N00M230G is 3000K, providing a warm white lighting ambiance.
The maximum forward current rating for this model is 1200mA, supporting efficient performance.
This LED features a wide viewing angle of 115°, suitable for various lighting applications.
The forward voltage of the Cree CXA1512-0000-000N00M230G is 36V, ensuring stable electrical operation.
It complies with RoHS, REACH, UL (E349212), and NEMA SSL-3 2011 standards, ensuring safety and environmental compliance.
The optical source diameter of this model is 8.9 mm, providing precise light output.
This model is packaged in trays, which facilitates ease of handling and use.
Typical applications include lamp retrofits, GU10 LED bulbs, commercial downlights, and luminaire designs.
The available forward voltage options for this model are 18V and 37V, with specific maximum drive currents for each.
The Color Rendering Index (CRI) of the CXA1512-0000-000N00M230G is 80%, indicating good color accuracy.
The radiant flux of the Cree CXA1512-0000-000N00M230G is 24W, contributing to its high lumen output.
