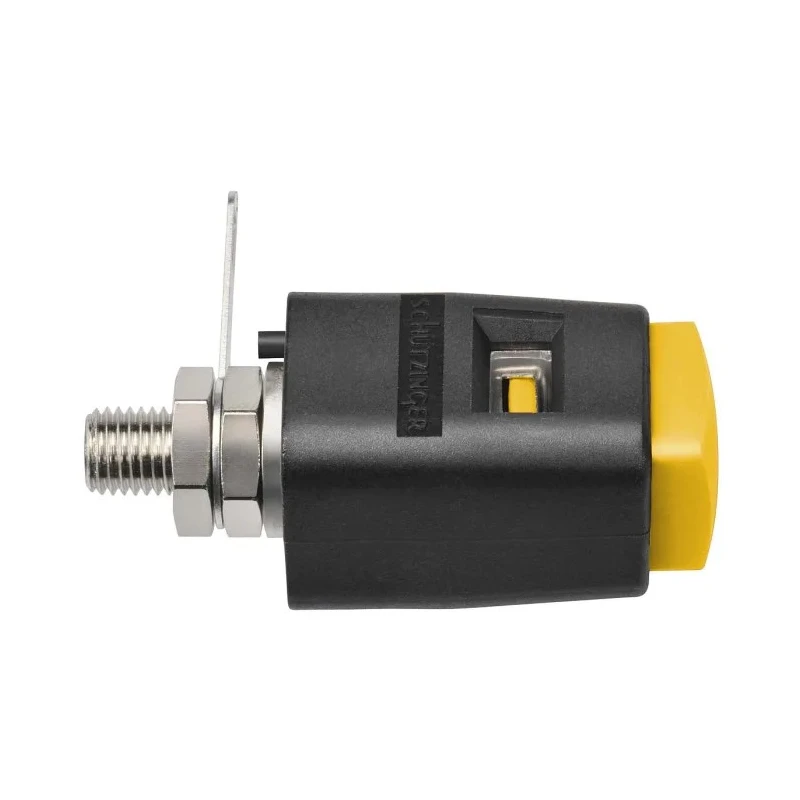

Schutzinger 6.2 mm Yellow Insulated Terminal Post, 70V, M6 Thread, 16A SDK 504 / GE

Schutzinger SDK 504 / GE is a 6.2 mm yellow insulated terminal post designed for quick and reliable electrical connections in industrial, laboratory, and test & measurement environments. The terminal post features a robust polyamide 66 body that ensures high insulation resistance and durability. It operates safely at a voltage rating of 70V and supports currents up to 16A.

The terminal post utilizes a spring clamp action mechanism allowing fast and secure wire attachment to panels, enhancing installation efficiency. It is equipped with an M6 threaded post along with a fastening nut, facilitating secure mounting on panels up to 5 mm thickness with a height of 29 mm above the panel surface. This mounting flexibility makes it suitable for both laboratory and electrical testing applications.

With a transition resistance of only 5 milliohms, the terminal post guarantees minimal electrical losses, ensuring precise measurement and stable connectivity. The recommended maximum torque for tightening the fastening nut is 120 Ncm, providing firm mechanical stability without damage risks.

This terminal post is widely utilized in electrical test connectors, laboratory clamps, and other test and measurement scenarios where dependable, quick-release connections are essential. Its yellow color coding aids easy identification in panel assemblies and wiring setups.

Manufactured in Germany, the product is constructed without specific standards or approvals but follows quality and durability expectations typical for terminal posts in industrial use.

Designed with polyamide 66 body material for durable insulation. Features a spring clamp action for quick and secure wire to panel connections. Supports a maximum panel thickness of 5 mm with 29 mm height above panel. Includes an M6 thread fitted with a nut for secure mounting on non-metal panels.

Offers low transition resistance of 5 milliohms for reliable electrical connections. Maximum fastening nut torque is 120 Ncm ensuring firm attachment. Widely used in test and measurement applications and laboratory setups.

Manufactured in Germany meeting quality standards without specific approvals. Explore the range of Terminal Posts and electrical test connectors on EnvMart for reliable industrial and laboratory applications.
