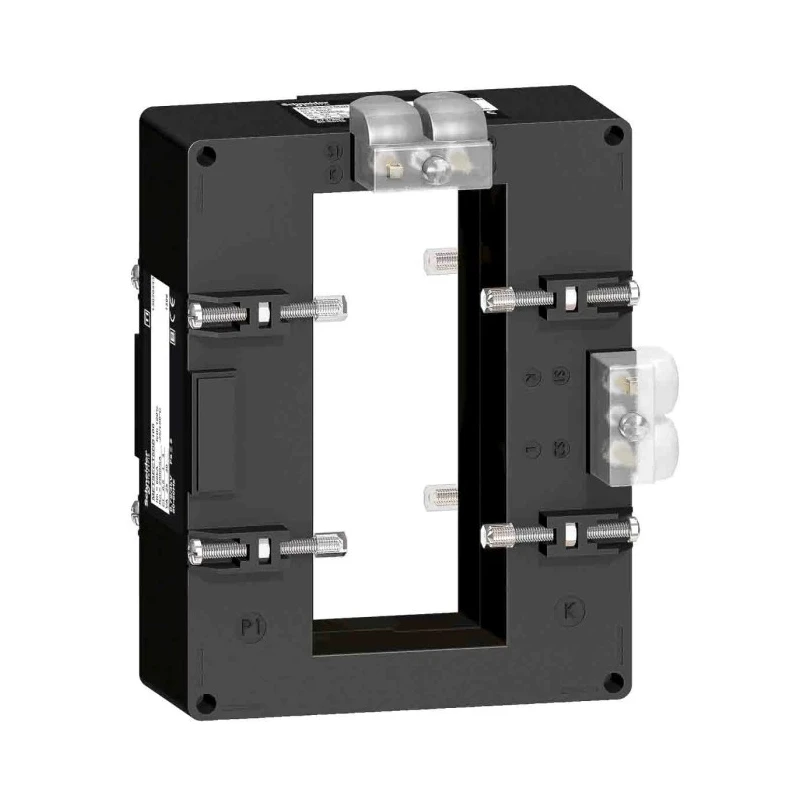

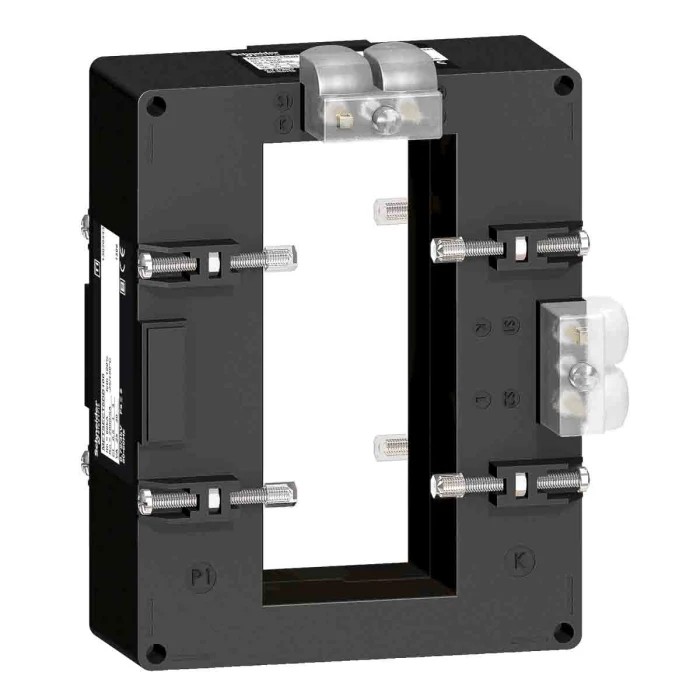

Schneider Electric PowerLogic Series Current Transformer 2000 A 2000:5 METSECT5DC200

Schneider Electric METSECT5DC200 PowerLogic Series Current Transformer offers industrial-grade current measurement, designed with a 2000 A primary current and 5 A secondary current for accurate energy monitoring and control.

Its screw mounting type and bus bar support allow secure installation in electrical panels and automation systems, ensuring stable and reliable functionality. The device features tropicalized design for enhanced durability and operates efficiently within a temperature range of -25°C to 50°C, suitable for diverse industrial environments.

Accuracy class 0.5 at 25 V AC and class 1 at 30 V AC provides precise readings that are critical for process control and electrical protection systems. Built-in Class B electrical insulation enhances user safety and compliance with IEC 61869-2, VDE 0414, and CE standards demonstrates rigorous quality and performance adherence.

With dimensions of 125 mm width and 40 mm depth along with a weight of 9.66 kg, this current transformer is engineered to maintain reliability and ease of handling.

The insulated locking screw mounting mode secures the transformer firmly during operation, while the Green Premium designation reflects Schneider Electric's commitment to sustainability and environmentally responsible manufacturing.

This current transformer is designed for screw mounting on bus bars for industrial applications. It offers Class 0.5 accuracy at 25 V AC and Class 1 accuracy at 30 V AC for reliable performance. The product features Class B electrical insulation for safety and durability.

It operates in a temperature range from -25°C to 50°C, suitable for various environmental conditions. Dimensions are optimized with a width of 125 mm and depth of 40 mm. Weighing 9.66 kg, it is a robust device built for higher current applications.

The transformer complies with IEC 61869-2, VDE 0414, and CE standards. It includes an insulated locking screw mount and bus bar support for secure installation. Green Premium status marks it as a sustainable and environmentally conscious product.

IP20 protection ensures resistance to solid objects during installation and operation. This Current Transformer is ideal for industrial automation, process control, energy measurement, and electrical distribution systems requiring high precision and safety.
