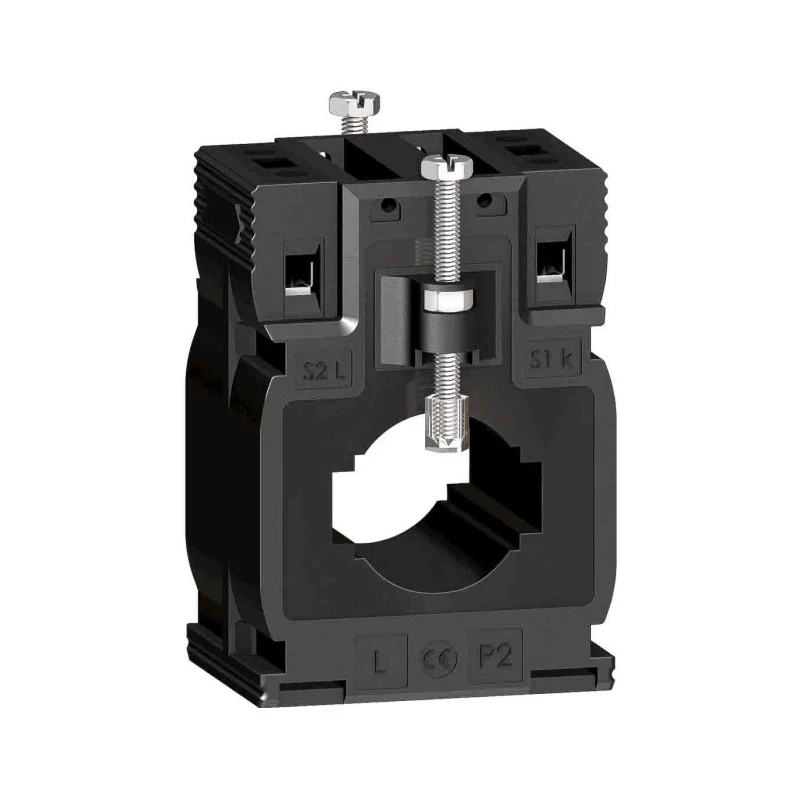

Schneider Electric PowerLogic Series Current Transformer 400A 400:5 Ratio 27mm Bore METSECT5MA040
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 80mm |
| Model | METSECT5MA040 |
| Depth | 63mm |
| Gross Weight | 330g |
| Width | 56mm |
| Mount Type | DIN Rail |
| Series | PowerLogic |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Bore Diameter | 27mm |
| Secondary current | 5A |
| Standards/Approvals | VDE 0414, IEC 61869-2, CE |
| Better World Claim | Designed for Disassembly |
| Primary Current | 400A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Turns Ratio | 400:5 |
| Turns Ratio400 | 5 |
| 400 | 5 |
| Schneider Electric PowerLogic Series Current Transformer 400 A 400 | 5 27mm Bore |
Key Features
- Accuracy Class 0.5 at 3 V AC and Class 1 at 5 V AC for precise measurement.
- Electrical insulation Class B ensures high safety standards during operation.
- Tropicalized for busbar mount with durable seal and insulated locking screw.
- Wide operating temperature range from -25°C to 60°C suitable for varied environments.
- Complies with VDE 0414, IEC 61869-2, and CE standards.
- IP20 protection rating for reliable performance in industrial settings.
- Lightweight design at approximately 330 grams facilitates easy installation.
- Supports frequency range from 50 Hz to 60 Hz.
Product Description
Schneider Electric METSECT5MA040 PowerLogic Series Current Transformer, rated at 400 A primary and 5 A secondary current with a 400:5 turns ratio and 27 mm bore diameter, is engineered for high-accuracy current measurement in electrical and industrial control systems. Its compact dimensions of 80 mm length, 56 mm width, and 63 mm depth make it ideal for DIN rail mounting.
This transformer features accuracy Class 0.5 at 3 V AC and Class 1 at 5 V AC, ensuring precise monitoring and control of electrical currents. The Class B electrical insulation and sealed construction provide robust safety and durability. It incorporates an insulated locking screw mounting method and a busbar support to enhance stability and security during installation.
Built to support a frequency range of 50 Hz to 60 Hz and to operate efficiently within a temperature range of -25°C to 60°C, it is suitable for diverse industrial environments. The IP20 protection rating safeguards against solid foreign objects, improving operational reliability. This product complies with important international standards including VDE 0414, IEC 61869-2, and CE, meeting global safety and quality benchmarks.
The lightweight design of approximately 330 grams facilitates easy handling and installation. As a Green Premium product, it emphasizes sustainability with features designed for disassembly and environmental responsibility.
Commonly used in industrial automation, process control, electrical distribution, and energy management systems, the METSECT5MA040 supports enhanced measurement and control capabilities to optimize electrical performance and safety.
Accuracy Class 0.5 at 3 V AC and Class 1 at 5 V AC for precise current measurement. Electrical insulation Class B for reliable and safe operation. Tropicalized design with sealing and insulated locking screw. DIN rail mounting with busbar support for secure installation.
Operating temperature range from -25°C to 60°C suitable for various environments. Compliance with VDE 0414, IEC 61869-2, and CE standards. Lightweight at approximately 330 grams for easy installation. Frequency support from 50 Hz to 60 Hz.
IP20 protection rating. Green Premium product designed for sustainability and disassembly. Explore more electrical and automation components at EnvMart to enhance your industrial and control system projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this model is 400 A.
This current transformer has a turns ratio of 400:5.
The bore diameter is 27 mm.
It features an accuracy Class of 0.5 at 3 V AC and Class 1 at 5 V AC.
The operating temperature range is from -25°C to 60°C.
It complies with VDE 0414, IEC 61869-2, and CE standards.
The weight of this current transformer is approximately 330 grams.
This unit supports DIN rail mounting.
It supports a frequency range from 50 Hz to 60 Hz.
It features Class B electrical insulation and a sealed construction for enhanced safety.
It is commonly used in industrial automation, process control, electrical distribution, and energy management systems.
The dimensions are 80 mm in length, 56 mm in width, and 63 mm in depth.
