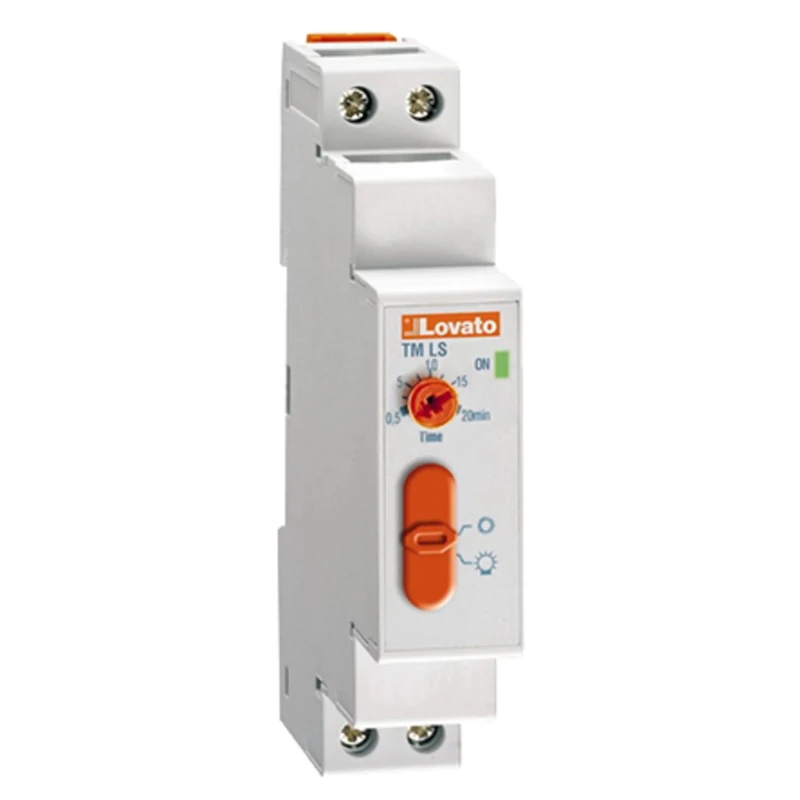

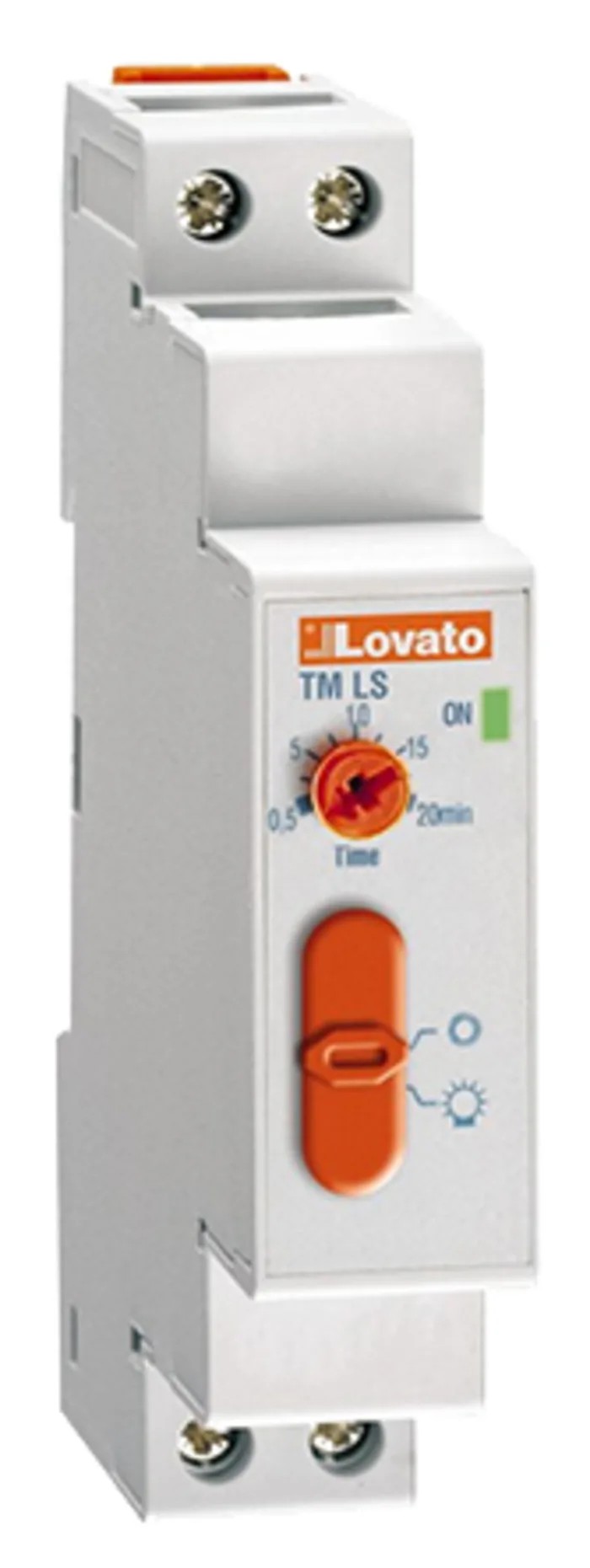

Lovato Electric DIN Rail Timer Relay 1-Contact, 12 to 240 V DC, 220V AC, 240 V AC, 0.5 to 20 min, TMLS

Lovato Electric TMLS DIN Rail Timer Relay, model TMLS, is an industrial-grade timer relay suitable for electrical automation and control systems. It operates on a supply voltage range from 12 to 240 V DC and 220-240 V AC, providing flexible integration into various power environments.

The device features a single contact with SPST configuration, capable of switching loads up to 16 A at 240 V AC. Its timer range spans from 0.5 to 20 minutes, offering precise timing control essential for timed operations like staircase lighting.

Constructed with a robust modular DIN 43880 housing, the relay measures 64.9 mm in height, 104.7 mm in width, and 17.5 mm in length which allows efficient footprint utilization in control panels. The unit is mounted on a 35 mm DIN rail and secured by extricable clips, featuring screw-type terminals compatible with conductor sections of 0.2 to 4 mm². This ensures reliable electrical connection and ease of installation.

Designed for durability, the relay operates within -20°C to 60°C and has an IP40 ingress protection rating providing safeguard against solid intrusion. The TMLS series adheres to strict international standards including IEC/EN 61812-1, IEC/EN 60068 series, CSA C22.2 No.14, UL 508, and others, ensuring quality and safety compliance.

This relay's special features include the staircase timer mode operation, allowing it to control lighting sequences efficiently. It also supports connection with up to 50 light-up switches, ideal for multi-point control in commercial or industrial settings. The inclusion of a slide switch permits manual or automatic operation with a constant lighting option.

The Lovato Electric TMLS timer relay finds application in industrial automation, electrical control panels, HVAC control systems, building automation, and lighting control scenarios. Its precise timing and robust construction make it a reliable choice for demanding environments.

Equipped with a single SPST contact suitable for switching electrical loads. Flexible supply voltage range accommodates 12 to 240 V DC and 220-240 V AC systems. Programmable timer from 0.5 to 20 minutes ensures accurate control.

DIN rail mounting and screw terminals facilitate quick and secure installation. IP40 rating and wide operating temperature range ensure durability in industrial conditions. Certified to international standards guaranteeing operational safety and reliability.

Staircase timer mode with support for multiple light-up switches enhances usability. Compact and modular design minimizes control panel space usage. Origin manufactured in Italy. Explore the Lovato Electric range of Timer Relays and other automation components at EnvMart for reliable industrial equipment solutions.
