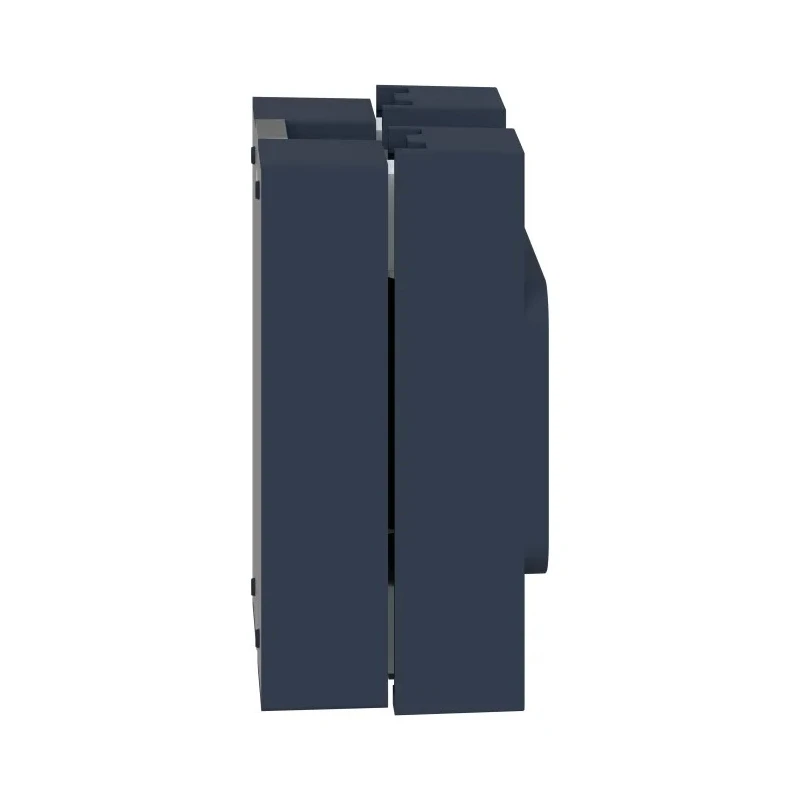

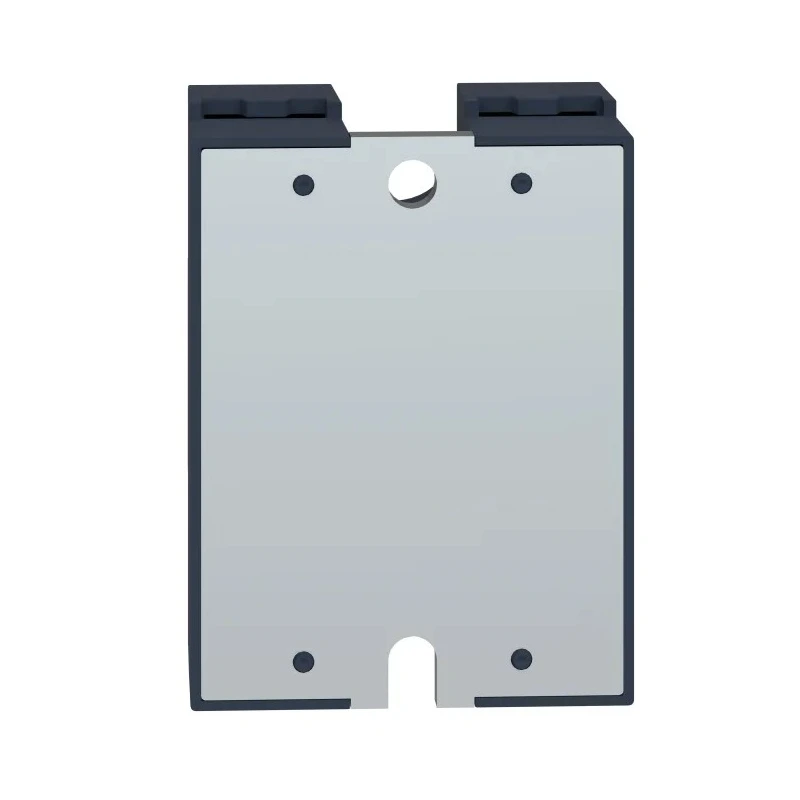

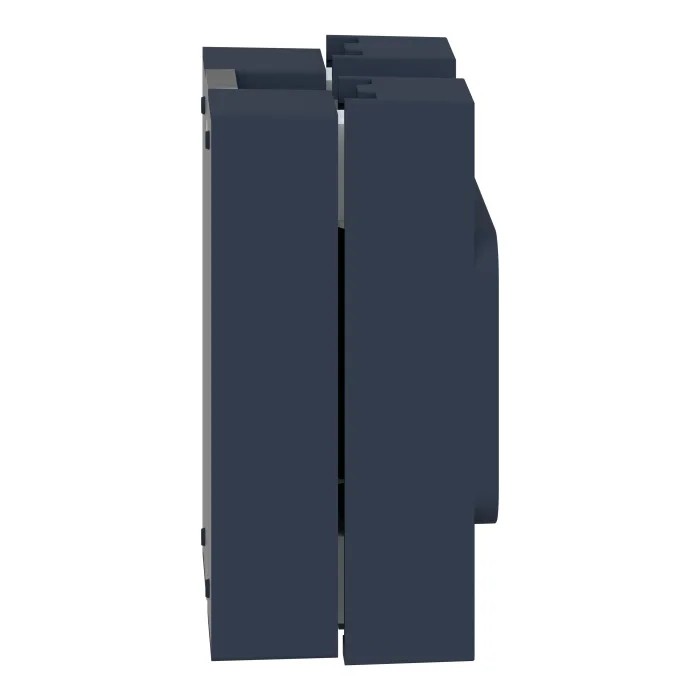

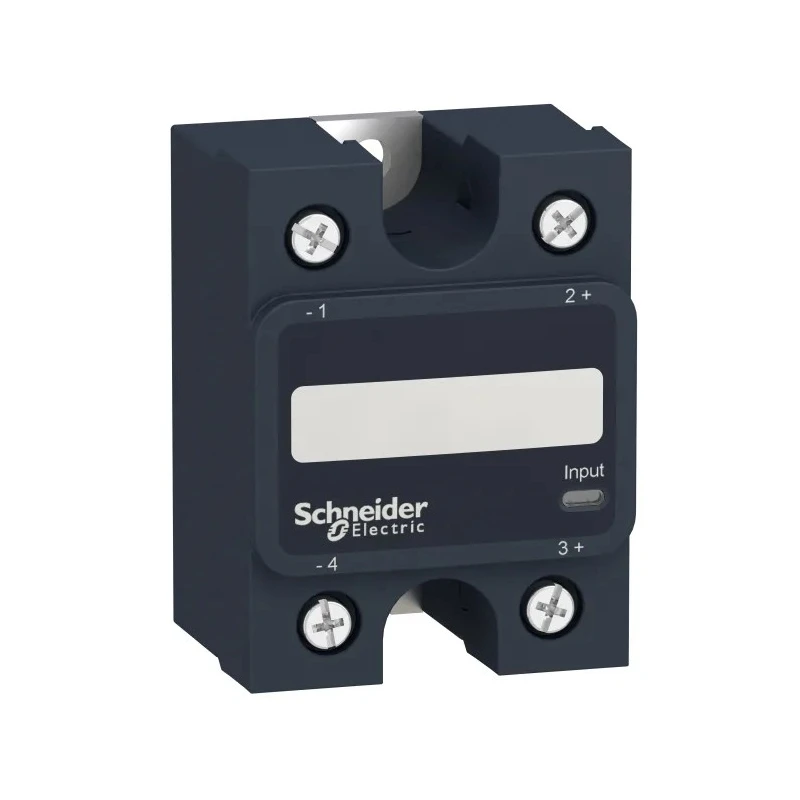

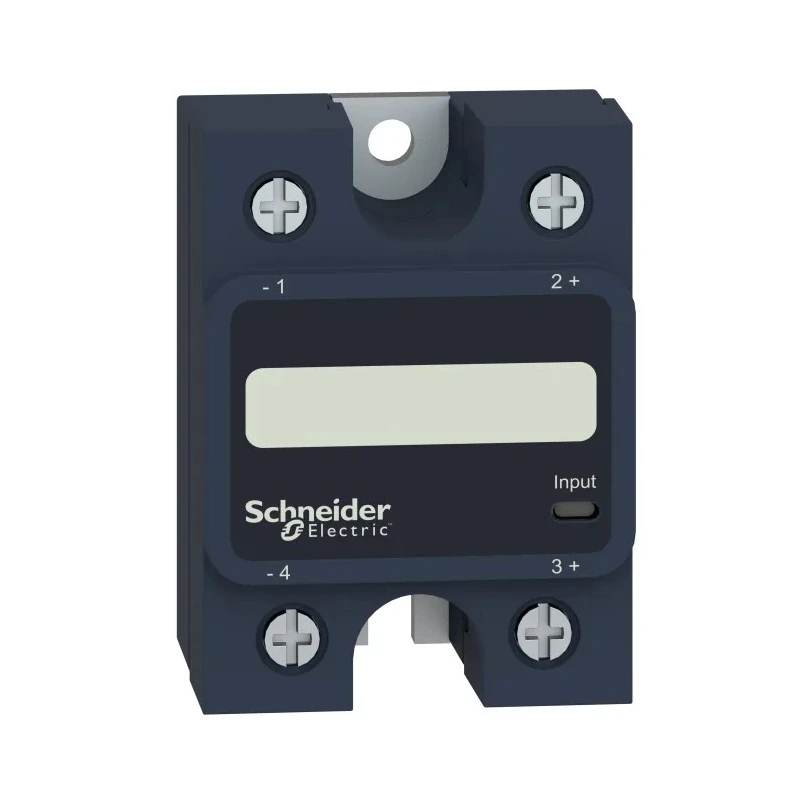

Schneider Electric Harmony Relay Series Solid State Relay 125 A Load Current 660 V AC Load Panel Mount SSP1A4125BDT
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 58.9mm |
| Length | 44.5mm |
| Model | SSP1A4125BDT |
| IP Rating | IP20 |
| Width | 34.29mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 125A |
| Standards/Approvals | CE, EAC, CSA, EN/IEC 62314, REACH, RoHS, UL |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Rated maximum load current of 125 amperes for heavy duty use.
- Operates with a wide AC load voltage range from 48 V to 660 V.
- Controlled by DC input voltage ranging from 4 V to 32 V.
- Panel mount type with screw terminal connections for secure installation.
- Features zero voltage switching function to reduce electrical noise and prolong relay life.
- Equipped with a visual input status indicator and an alarm output for quick fault diagnosis.
- Designed for silent operation due to absence of moving parts, ensuring reliable switching.
- Suitable for resistive loads in industrial machines, HVAC, packaging, injection molding, and textile applications.
Product Description
Schneider Electric SSP1A4125BDT is a solid state relay from the Harmony Relay Series, rated for a maximum load current of 125 amperes and a load voltage range of 48 V to 660 V AC. Designed for panel mount applications with screw terminal connections, this relay offers zero voltage switching for quiet and efficient functionality. The control input voltage ranges from 4 V to 32 V DC, making it suitable for various control systems.
This solid state relay features a visual indicator that shows the input status and includes an alarm output to facilitate rapid fault detection and troubleshooting. The relay is maintenance-free, silent, and highly reliable due to the absence of moving contacts.
Constructed with a thermal pad input, the relay ensures efficient heat dissipation and is rated to operate within a temperature range from -40°C to 80°C. Its IP20 rating provides basic protection against solid objects, making it suitable for controlled industrial environments.
Applications include industrial machines, packaging machinery, injection molding equipment, HVAC systems, building and medical equipment, and textile machines. The SSP1A4125BDT combines smart diagnostics and robust performance to minimize downtime and enhance operational efficiency.
Rated maximum load current of 125 amperes for heavy duty use. Operates with a wide AC load voltage range from 48 V to 660 V. Controlled by DC input voltage ranging from 4 V to 32 V. Panel mount type with screw terminal connections for secure installation.
Features zero voltage switching function to reduce electrical noise and prolong relay life. Equipped with a visual input status indicator and an alarm output for quick fault diagnosis. Designed for silent operation due to absence of moving parts, ensuring reliable switching.
Suitable for resistive loads in industrial machines, HVAC, packaging, injection molding, and textile applications. Thermal pad input provides enhanced heat dissipation for high performance. Robust construction rated for operating temperatures from -40°C to 80°C and IP20 protection.
Explore further in the Solid State Relay category at EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 125 amperes.
It operates with an AC load voltage range from 48 V to 660 V.
The control input voltage ranges from 4 V to 32 V DC.
The relay has a height of 58.9 mm, a length of 44.5 mm, and a width of 34.29 mm.
This model is designed for panel mounting and features screw terminal connections for secure installation.
It is rated to operate within a temperature range from -40°C to 80°C.
It features a zero voltage switching function, which helps reduce electrical noise and prolongs relay life.
The relay has an IP20 rating, providing basic protection against solid objects.
The contact configuration of this solid state relay is SPST (Single Pole Single Throw).
It complies with CE, EAC, CSA, EN/IEC 62314, REACH, RoHS, and UL standards.
This relay is suitable for use in industrial machines, HVAC systems, packaging machinery, injection molding equipment, and textile applications.
The output type of this model is SCR (Silicon Controlled Rectifier).
