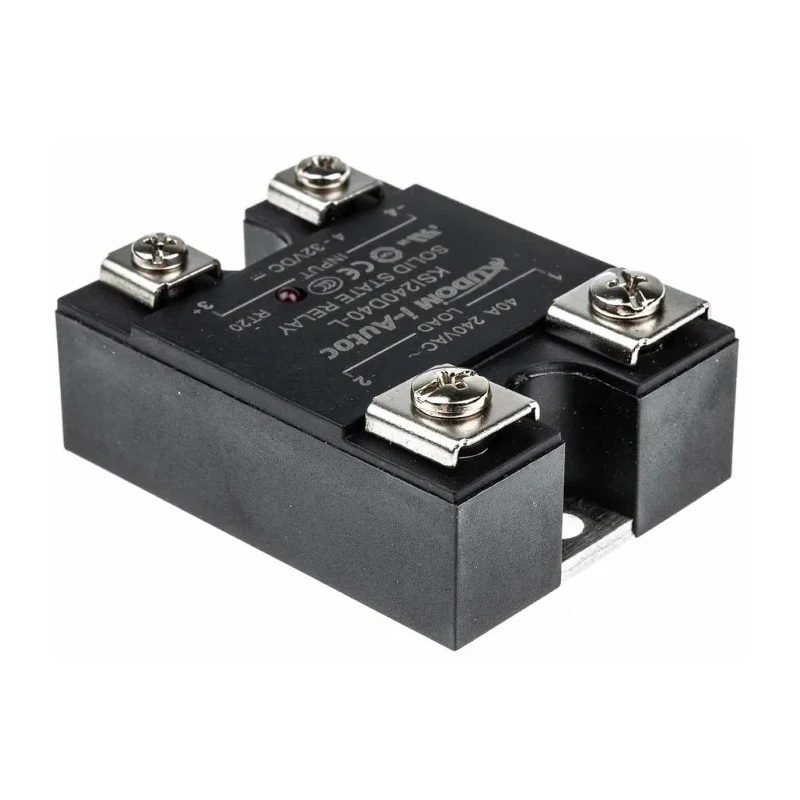

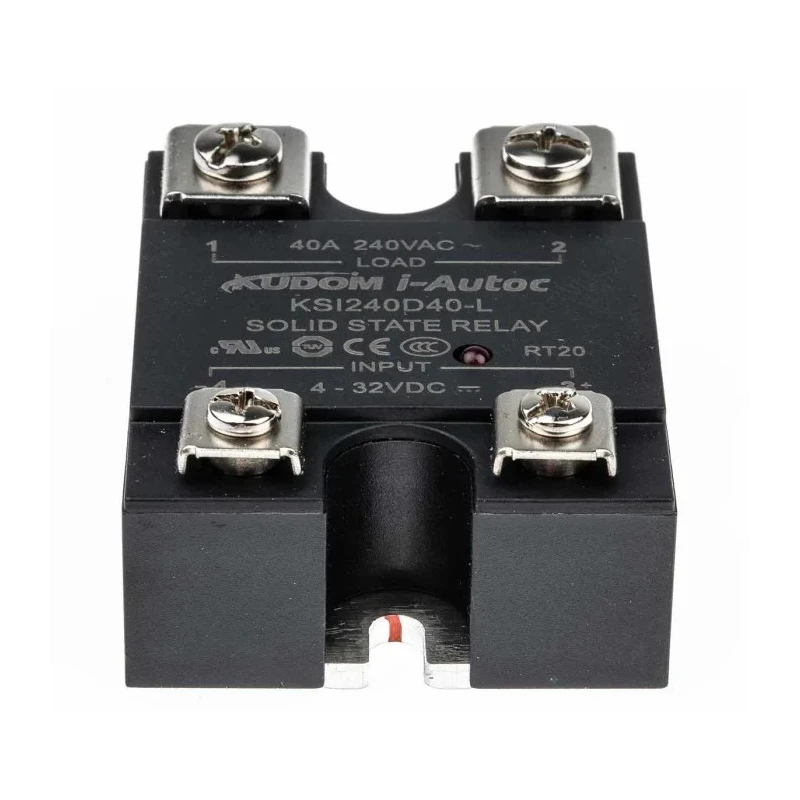

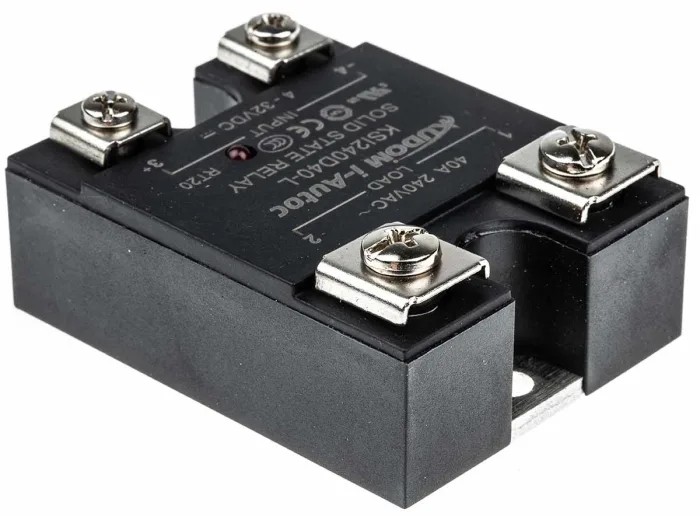

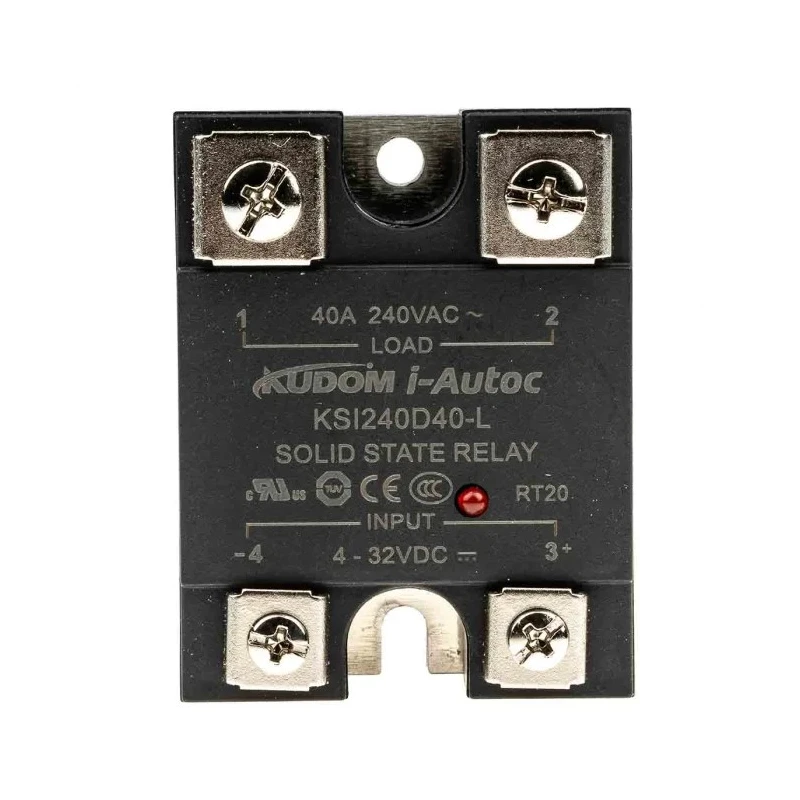

i-Autoc Solid State Relay Panel Mount 40A Load 280V AC Load 32V Control KSI240D40-L

Free Delivery in India | Lowest Global Shipping Charges

i-Autoc Solid State Relay Panel Mount 40A Load 280V AC Load 32V Control KSI240D40-L

Name: i-Autoc Solid State Relay Panel Mount 40A Load 280V AC Load 32V Control KSI240D40-L
Brand: i-Autoc
SKU: 271061
Price: 29.8 USD
Availability: InStock



Category Solid State Relay Brand i-Autoc Condition New

Specifications

Country of Origin	China
Brand	i-Autoc
Height	27mm
Length	58.6mm
Model	KSI240D40-L
IP Rating	IP20
Width	45.7mm
Mount Type	Panel
Output type	Triac, SCR
Series	KSI
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-30°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	40A
Standards/Approvals	CCC, CE, RoHS
Maximum Load Voltage	280V ac
Minimum Load Voltage	48V ac
Minimum Control Voltage	4V
Maximum Control Voltage	32V
Off State Leakage Current	5mA

Key Features

Suitable for resistive, inductive, and capacitive loads.
Features IP20 touch-safe cover for operator safety.
Operating temperature ranges from -30°C to 80°C.
Equipped with zero cross switching function for reduced electrical noise.
Output type includes Triac and SCR for reliable performance.
Terminal connection type is screw for stable and secure wiring.
Applications include HVAC systems, plastics machinery, incubation machines, elevators, and lighting control.
Conforms to CCC, CE, and RoHS standards ensuring quality and compliance.

Product Description

i-Autoc KSI240D40-L Solid State Relay is a high-performance panel mount relay designed for industrial automation and control applications. It supports maximum load currents of 40A and load voltages up to 280V AC, suitable for a wide array of single-phase resistive, inductive, and capacitive loads.

This relay features an IP20 rated touch-safe cover providing protection against accidental contact during operation. Its zero cross switching function minimizes electrical noise, enhancing the reliability and longevity of connected equipment. The control input voltage range from 4V DC to 32V DC ensures versatile control options.

Equipped with Triac and SCR output types, the KSI series solid state relay is ideal for switching applications in high-low temperature chambers, plastics processing machinery, incubation devices, oiling machines, HVAC control, elevator systems, lighting, and fountain controllers.

The relay’s compact form factor measures 58.6mm (L) x 45.7mm (W) x 27mm (H), with screw terminals for secure electrical connections while ensuring easy installation. It operates efficiently within a temperature range of -30°C to +80°C, making it suitable for harsh industrial environments.

Certified to meet CCC, CE, and RoHS standards, this product is manufactured in China to guarantee high quality and compliance with international safety norms. Suitable for resistive, inductive, and capacitive loads. IP20 touch-safe cover for operator safety.

Zero cross switching reduces electrical noise. Triac and SCR output types provide reliable switching. Wide operating temperature range: -30°C to 80°C. Compact dimensions for panel mount applications. Screw terminal type for secure, stable connections.

Meets CCC, CE, and RoHS compliance standards. Applications include HVAC, plastics machinery, incubation, elevators, lighting, and fountains. Manufactured in China ensuring quality standards.

This Solid State Relay is part of the KSI series by i-Autoc, designed to meet diverse industrial control requirements. For more electronics and electrical control components, continue exploring the Relays & Contactors category at EnvMart.
