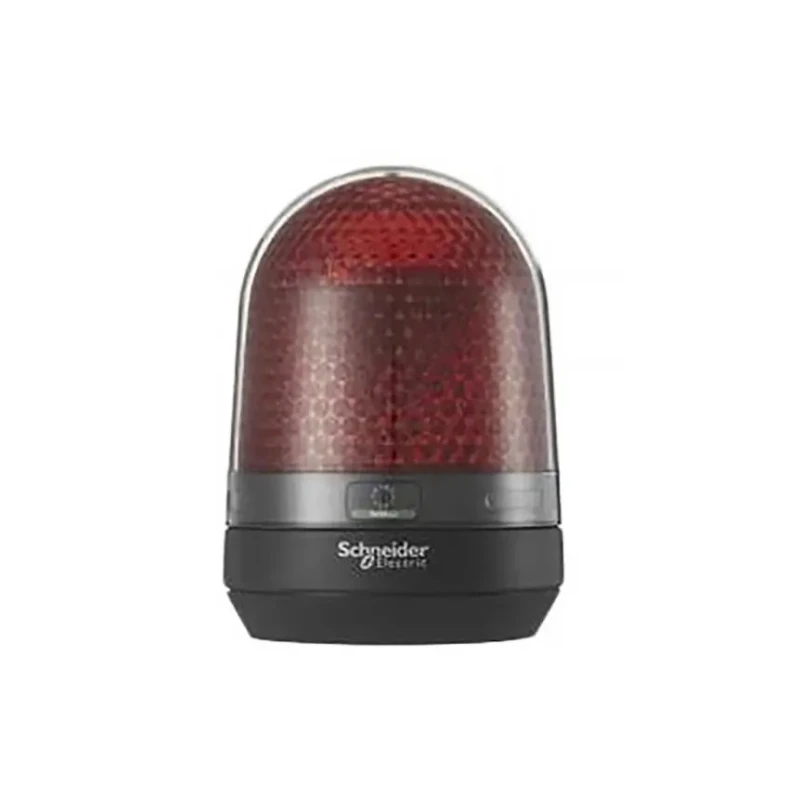

Schneider Electric Harmony XVR Series Red Beacon 230V AC Flashing, Rotating Panel Mount LED Bulb IP23, IP65 XVR3M04

Schneider Electric XVR3M04 Harmony XVR Series Red Beacon is a high-performance, motor-less LED signaling device operating at 230V AC. Designed primarily for industrial automation, construction, and public safety applications, this beacon provides reliable visual alerts through its flashing and rotating light functions.

This beacon utilizes advanced LED technology to ensure longer service life and reduced maintenance compared to traditional motor-based beacons. Its multi-functional design supports 10 distinct lighting modes, allowing users to customize the signaling pattern according to operational requirements. The red faceted lens maximizes light dispersion, enhancing the visibility range.

The housing combines robust materials such as Ethylene Propylene Diene Monomer, Polybutylene Terephthalate, and Polycarbonate, providing excellent durability and resistance to environmental factors. The integrated rubber base improves ingress protection, enabling IP23 and IP65 ratings under different configurations, suitable for harsh conditions.

With a compact height of 139 mm and a base diameter of 100 mm, the beacon mounts directly onto panels for secure installation. The device operates reliably within a temperature range of -10°C to +50°C and withstands vibrations up to 7.1G, making it ideal for demanding industrial environments. Electrical connections are facilitated by 400 mm flying leads with 0.57 mm² cross-sectional wire terminals.

This product is Class II certified, RoHS compliant, and manufactured in China. The innovative design of the Harmony XVR Series earned the prestigious Red Dot Industrial Design Award in 2014, reflecting its combination of aesthetics and functionality.

Features multi-functional LED technology for longer life and maintenance-free operation. Provides 10 lighting modes including rotating, blinking, and flashing options. Offers easy installation with panel mount type and integrated rubber base for improved sealing.

Constructed with durable Ethylene Propylene Diene Monomer, Polybutylene Terephthalate, and Polycarbonate materials. Suitable for environmental protection ratings IP23 and IP65 depending on configuration. Supports wide operating temperature range from -10°C to +50°C for versatile use.

Certified Class II standard with high vibration resistance of 7.1G for rugged applications. Ideal for factory automation, construction vehicles, and public area signaling. Red faceted lens enhances visibility by extending the lighting area.

Connection via 400 mm flying leads with 0.57 mm² cross-section wire terminals.

This beacon is perfect for industrial automation systems, including factory floors, construction machinery signaling, and public safety alerts. Schneider Electric products like the Harmony XVR Series deliver reliable and innovative solutions for automation signalling needs. For more products in Automation Signalling Beacons, browse EnvMart’s extensive Schneider Electric selection.
