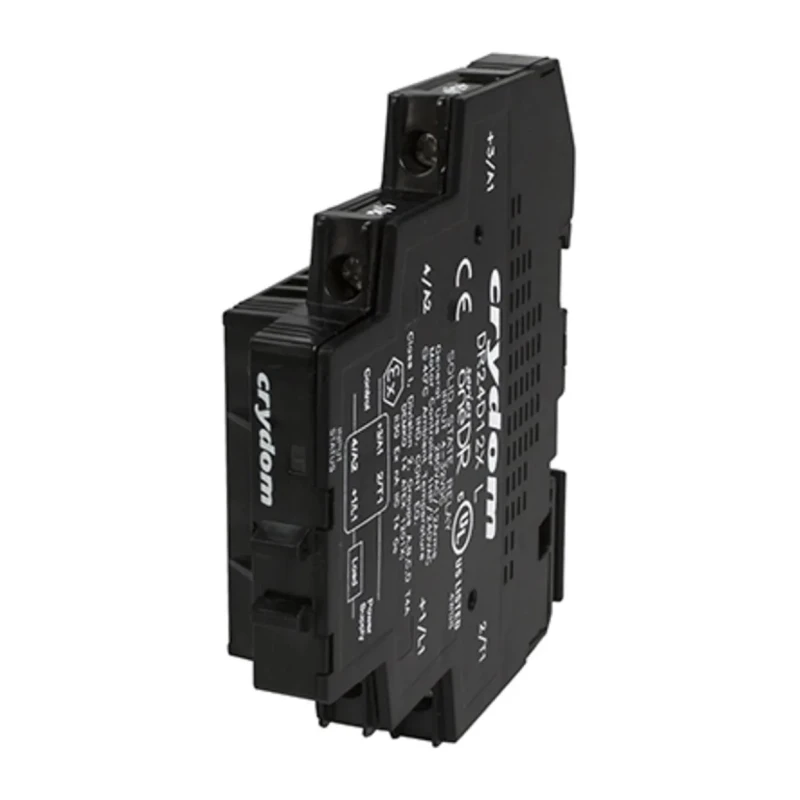

Crydom DR Series Solid State Relay Panel Mount 12A DC Load 600V AC Load 32V DC Control DR48D12X

The Crydom DR Series Solid State Relay model DR48D12X is a robust panel mount relay engineered for industrial, automation, and hazardous environment applications. It supports a maximum DC load current of 12 amperes and can handle AC load voltages up to 600 volts, controlled by a DC voltage signal from 4V to 32V. This device meets stringent UL 508 and ATEX 95 directives, making it suitable for use in oil and gas exploration, refining, and other demanding industrial environments.

Featuring screw terminal connections and a compact design (83.7mm in height and 87.6mm in length), the relay is easy to install on standard DIN rails (35mm). It operates reliably within a temperature range from -30°C to 80°C. The triac output type ensures efficient switching of resistive and inductive loads with minimized electrical noise and stress.

This model includes LED status indication to visually confirm operation, and it maintains a very low off-state leakage current of 0.1mA. The relay is fully RoHS compliant and conforms to European EMC and low voltage directives.

Typical applications include control of heating, lighting, motion, and power loads in industrial and commercial automation systems. Its approvals and certifications ensure enhanced reliability and safety in hazardous locations, making it a preferred choice in electrical panels, automation controls, and industrial machinery setups.

Maximum load current of 12A for DC applications provides strong performance. Panel mount with screw terminals offers secure and straightforward installation. Supports load voltage from 48V AC minimum to 600V AC maximum, enabling broad usage scenarios.

Wide control voltage range from 4V to 32V DC allows flexible control circuit compatibility. Meets UL and ATEX standards for use in hazardous and industrial environments. Compact form factor fits standard DIN rail mounting systems.

Low leakage current improves energy efficiency and safety. LED indicators aid in quick operational diagnostics and monitoring. Explore more in the Solid State Relays category at EnvMart to find compatible relays and related automation components optimized for your industrial control requirements.
