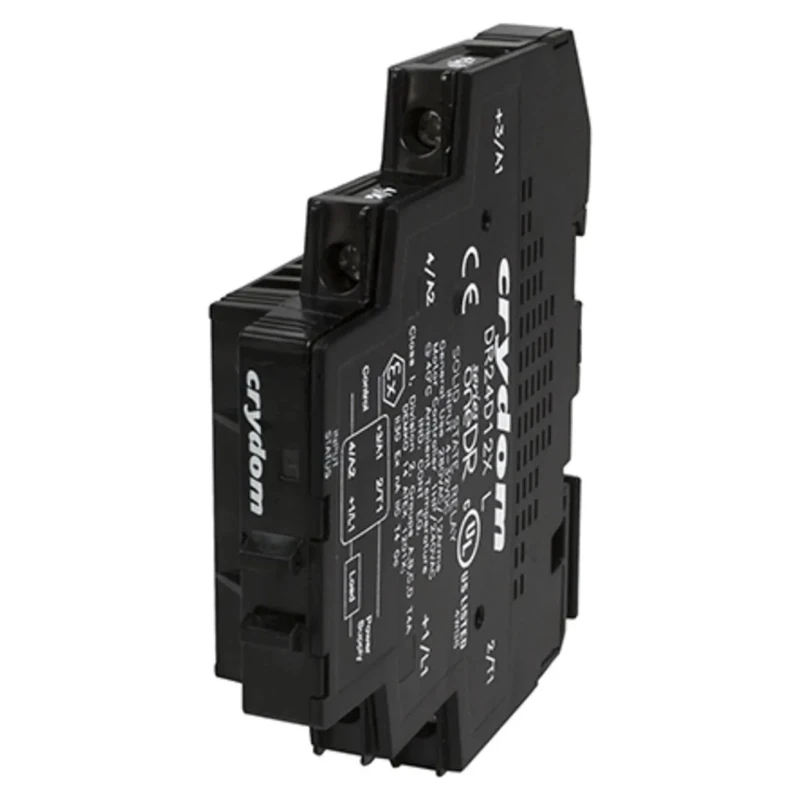

Crydom Solid State Relay Panel Mount 12 A DC Load 100 V AC Load 32 V DC Control DR10D12X

Crydom DR10D12X is a high-quality Solid State Relay designed for industrial and automation applications. This panel mount relay supports a DC load current of 12 A and can handle AC load voltages up to 100 V, making it ideal for control of heating, lighting, and motion power loads in industrial environments.

The relay incorporates a screw terminal type that ensures secure wiring connections for robust performance. It is designed to operate efficiently within a wide ambient temperature range from -30°C to 80°C, making it suitable for diverse operating conditions including hazardous locations.

This model includes an LED status indicator that provides clear visual feedback of the relay's load state. Its output type is Triac, configured primarily for zero crossing resistive loads or random turn-on inductive loads.

With a minimum load voltage of 1 V AC and a control voltage range from 4 V DC to 32 V DC, the DR10D12X offers versatile control options compatible with various control systems. It complies with RoHS standards, ensuring environmental safety in use and disposal.

The compact dimensions of 83.7 mm height and 87.6 mm length allow for easy installation on a standard 35 mm DIN rail mount, making it convenient for panel assembly and system integration. Its low off-state leakage current of 0.1 mA and capacitance of 10 pF contribute to the relay's energy-efficient operation and reduced signal interference.

This Crydom Solid State Relay is UL approved and suitable for hazardous industrial environments including oil and gas exploration, refining, and distribution, with certifications meeting ANSI/ISA Class 1 division 2 and ATEX requirements.

This relay features a screw terminal type for secure connections. It supports a minimum load voltage of 1 V AC and maximum load voltage of 100 V AC. Control voltage range is from 4 V DC minimum to 32 V DC maximum. Operates reliably within a temperature range of -30°C to 80°C.

Equipped with an LED status indicator for load condition monitoring. Capacitance is low at 10 pF, minimizing signal interference. Off state leakage current is minimal at 0.1 mA to enhance efficiency. The output type is Triac suitable for AC load switching.

Height and length dimensions are 83.7 mm and 87.6 mm respectively, fitting standard DIN rail mount configurations. RoHS compliant ensuring environmentally safe use. Explore more Crydom Solid State Relays and related electrical components at EnvMart for reliable industrial automation solutions.
