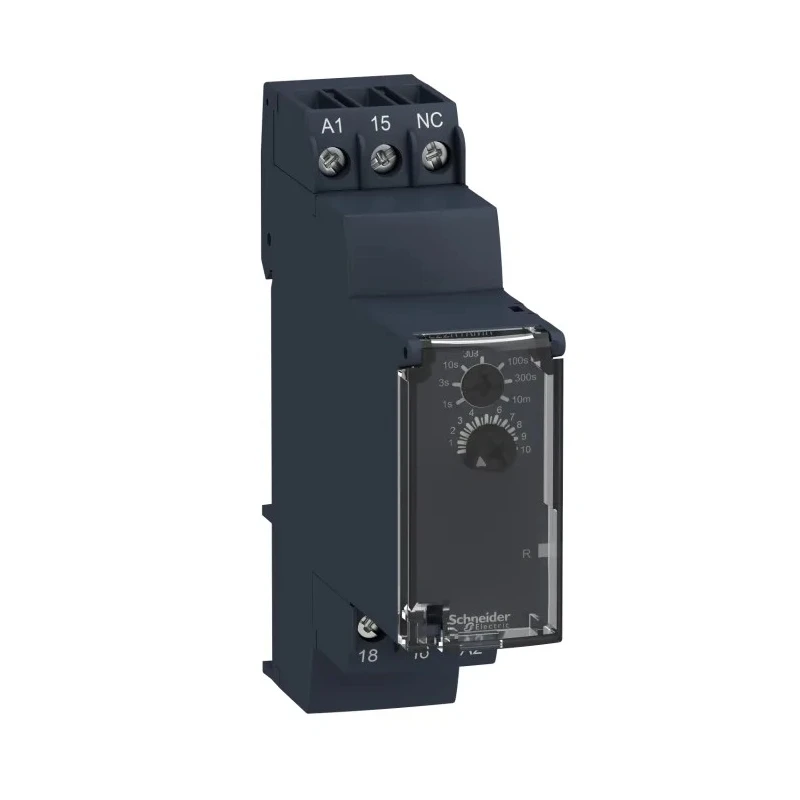

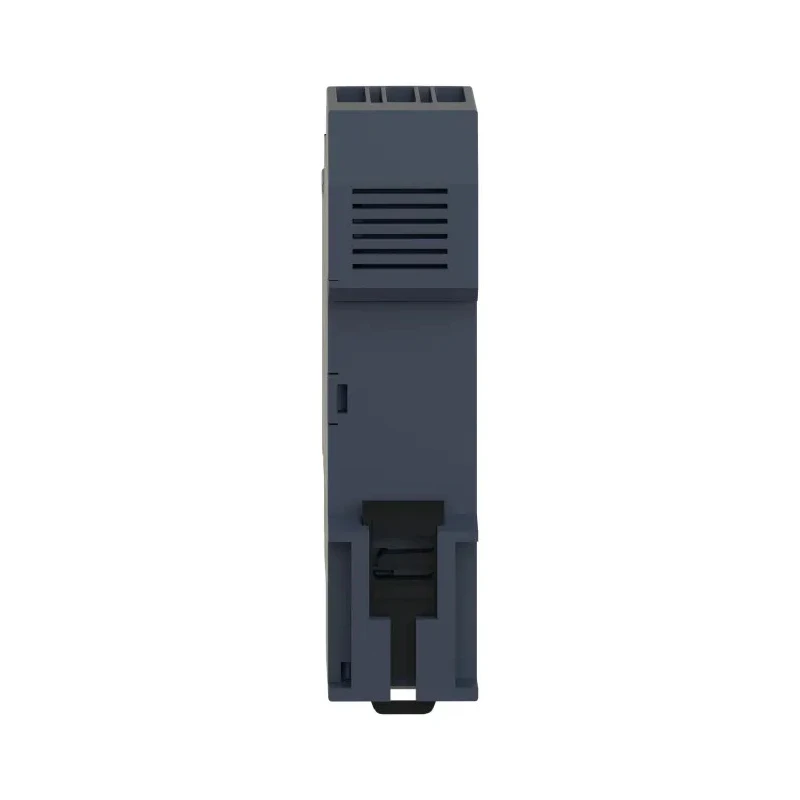

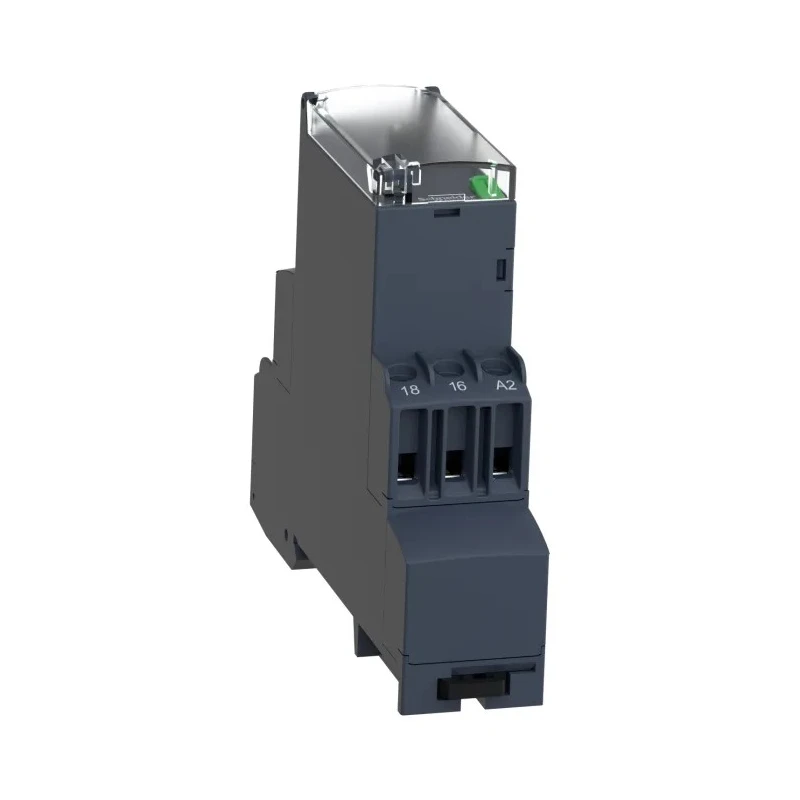

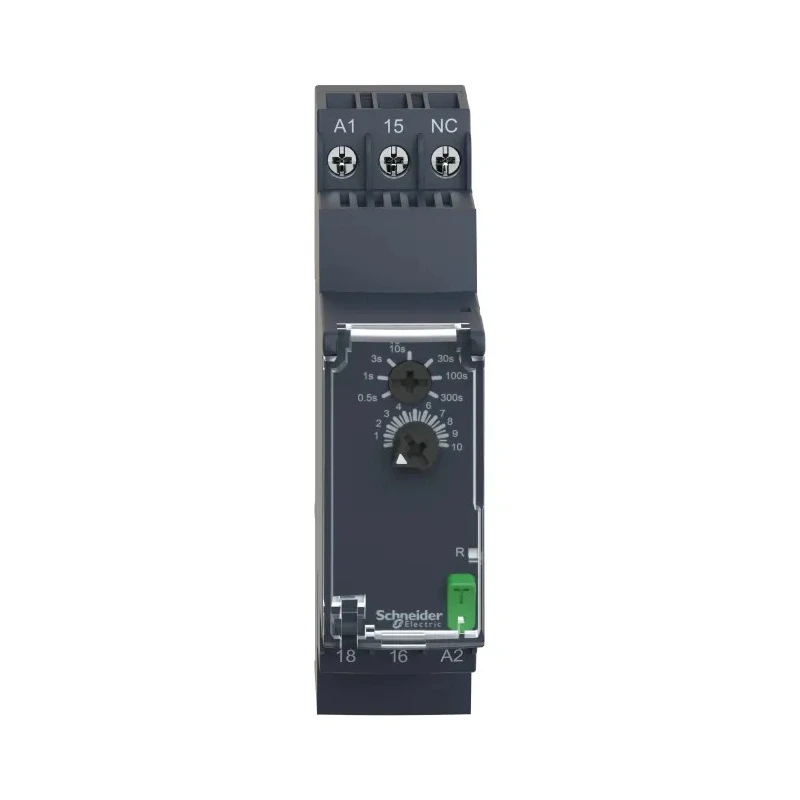

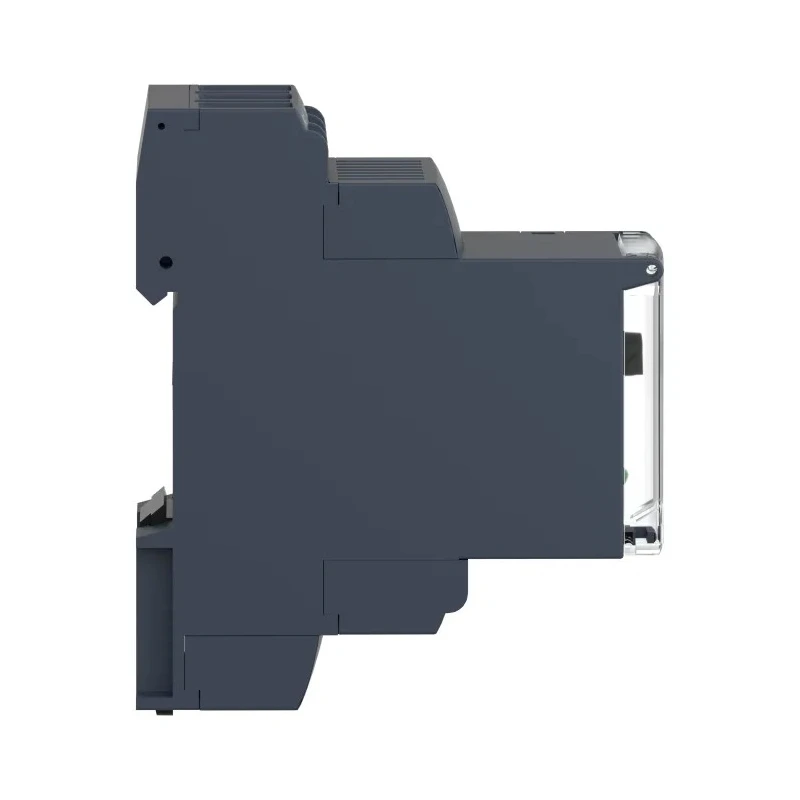

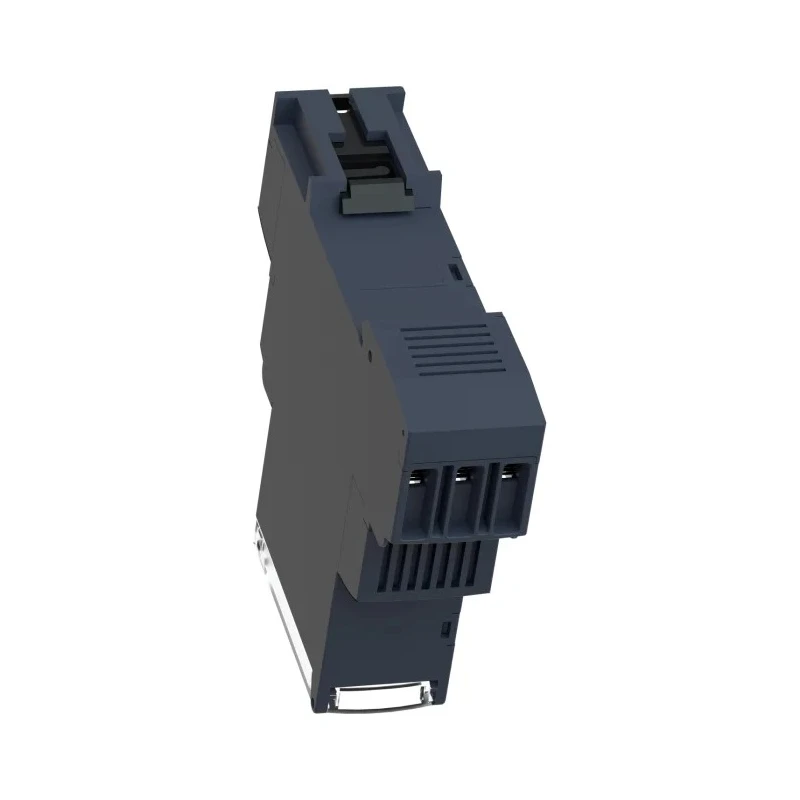

Schneider Electric Harmony Time Series DIN Rail Timer Relay, Offset Double Ring End Function, 1-Contact, 24 to 240 RE22R1KMR

Schneider Electric RE22R1KMR Harmony Time Series DIN Rail Timer Relay features an Offset Double Ring End timing function with a time range from 0.3 to 300 seconds. This 1-contact timer relay is designed for precise timing control in industrial and automation applications, operating reliably across a broad power range of 24 to 240 V AC/DC and supporting a contact current of 5A.

Intended for easy integration into electrical control panels, the device clips securely onto standard DIN rails. Its robust design includes screw terminal connections for permanent and safe wiring installations. The timer relay’s knob adjustment facilitates rapid on-site fine-tuning of timing intervals without needing specialized tools.

With IP20, IP40, and IP50 variants available, it accommodates varying degrees of dust protection and panel enclosure requirements. The unit's compact form factor, measuring 79.5 mm in height, 90 mm in width, and 22.9 mm in length, ensures minimal space consumption in control cabinets.

Applications include conveyor sequencing, pump control with delayed stop/start actions, lighting circuits requiring timed shutdowns, and process automation requiring single-contact timing events. It operates efficiently in ambient temperatures from -20 °C up to 60 °C, making it suitable for typical industrial environments.

Supports a time range from 0.3 to 300 seconds, suiting diverse timing needs. Single SPDT contact rated for 5A protects downstream circuits. Wide supply voltage range of 24 to 240 V AC/DC enhances installation flexibility.

Durable screw terminals ensure reliable and secure wiring. Compact size facilitates integration in limited control panel space. Multiple IP ratings offer protection to suit various environmental conditions. Knob adjustment provides quick and precise time setting.

Specialized Offset Double Ring End function useful for sequence control applications. Operating temperature range of -20 °C to 60 °C for robust industrial use. Mounts easily on standard DIN rails for quick installation.

Schneider Electric's RE22R1KMR timer relay is essential for industrial automation, HVAC controls, manufacturing process timing, and electrical control panel applications. Explore a wide selection of high-quality Timer Relays and electrical components at EnvMart for reliable industrial solutions.
