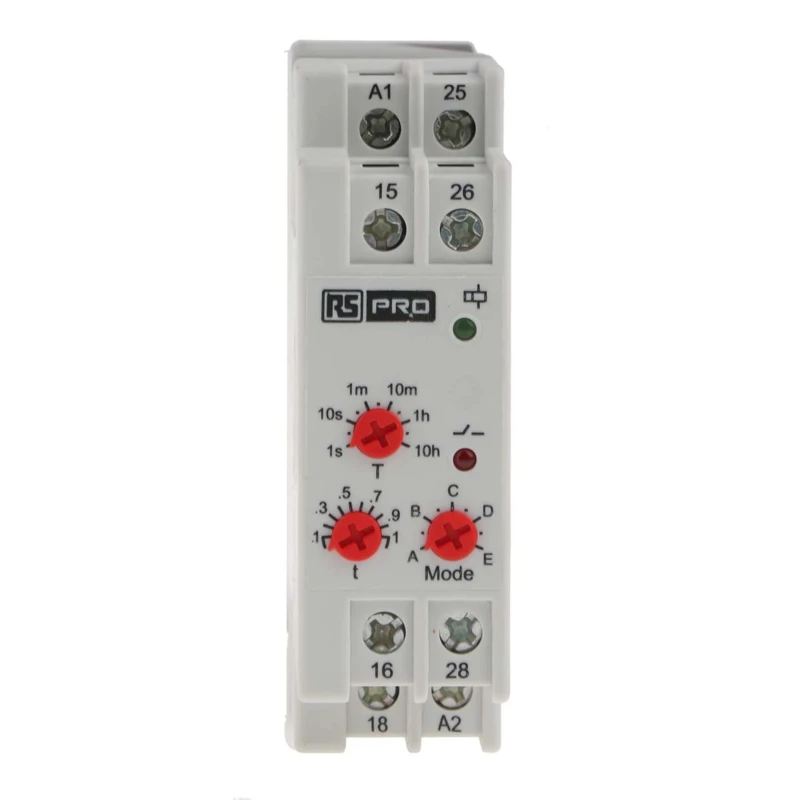

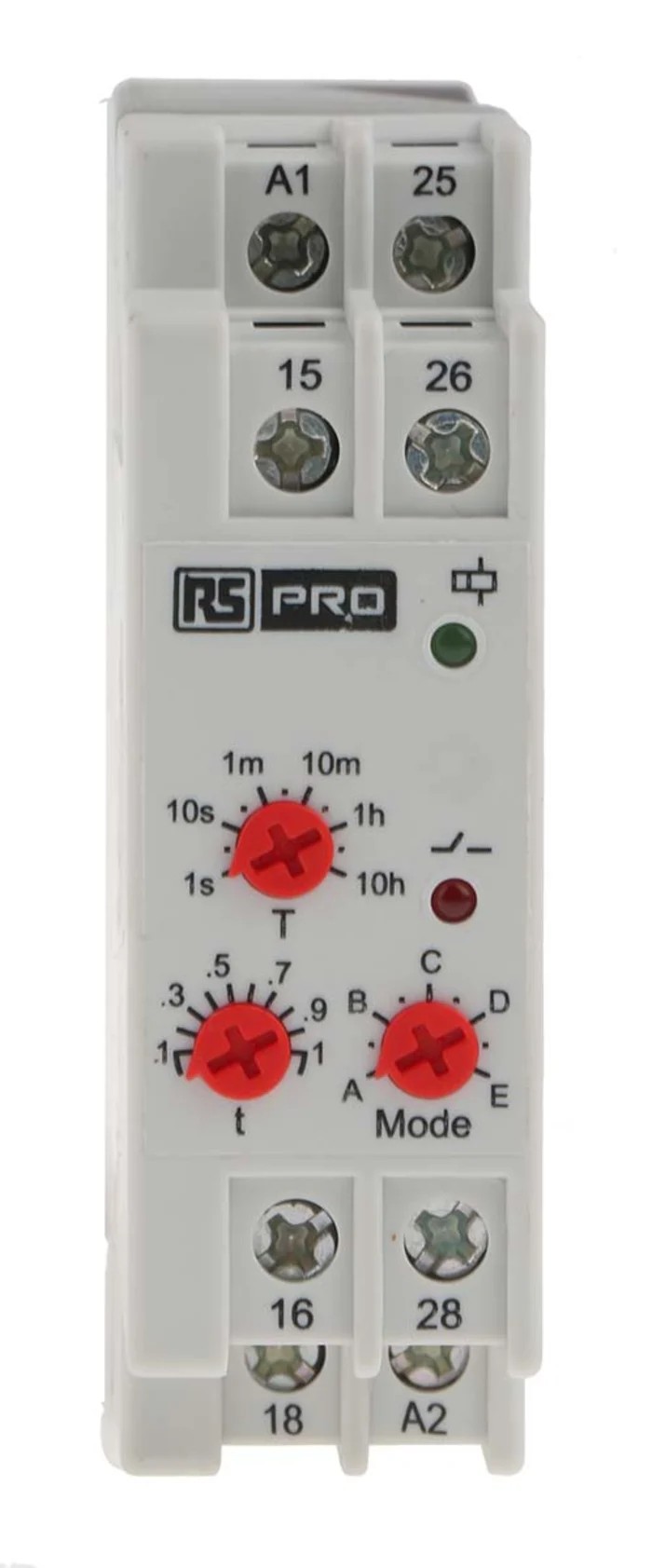

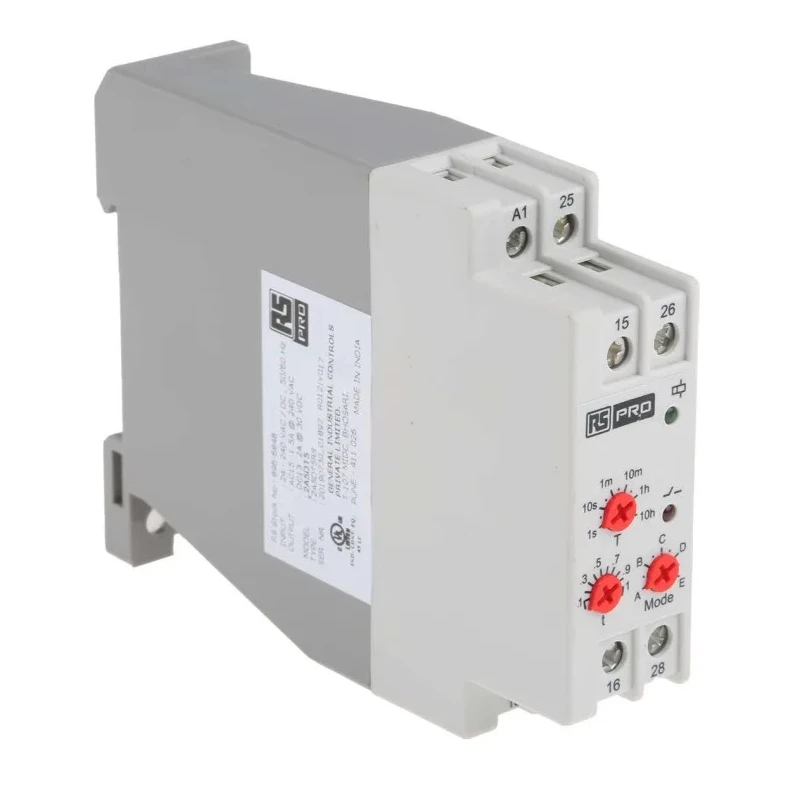

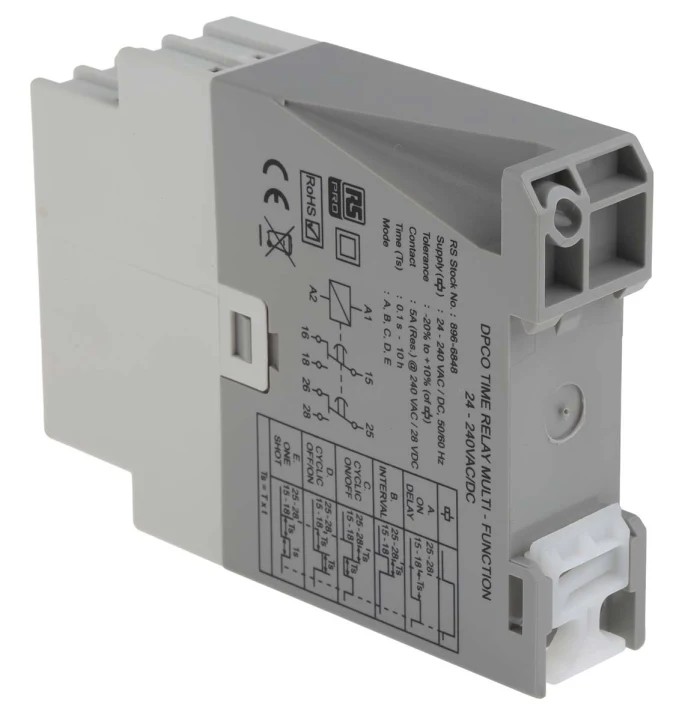

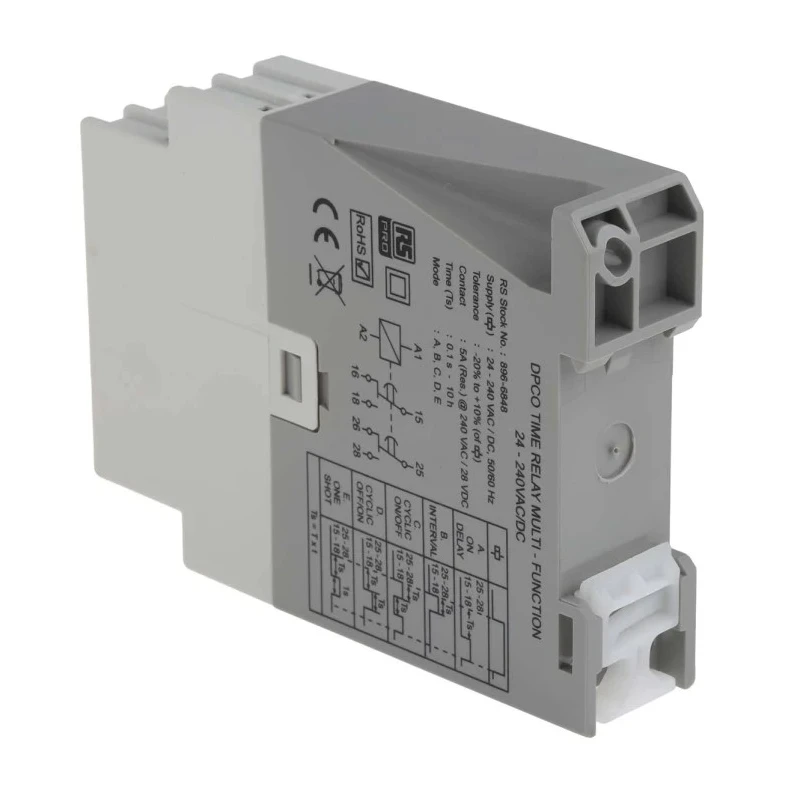

RS PRO DIN Rail Timer Relay, 2-Contact, DPDT Switch, 24 V DC/AC, 240 V AC, 0.1 s to 10 h, Multifunction 896-6848
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Height | 100.5mm |
| Function | Valve |
| Length | 75mm |
| Model | 896-6848 |
| Mode | ON Delay |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | RS PRO |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -15°C |
| Time Range | 0.1 s to 10 h |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Equipped with 2 changeover (DPDT) contacts rated at 5A relay output.
- Operates with supply voltages from 24 V DC to 240 V AC.
- Compact DIN rail mount design with a width of 22.5 mm for space efficiency.
- Timer functions include cyclic off-on, cyclic on-off, interval timing, and ON delay.
- Front knob interface for easy and accurate time setting adjustments.
- Dual LED indicators for runtime and relay status monitoring.
- Robust screw terminal type for secure electrical connections.
- Wide operating temperature range from -15°C to 60°C ensuring reliability.
Product Description
RS PRO 896-6848 DIN Rail Timer Relay is a multifunctional timer relay designed for industrial, manufacturing, and process control applications. It supports a wide voltage supply range from 24 V DC/AC to 240 V AC operating at ambient temperatures between -15°C and 60°C. This compact and reliable timer relay features a 2-contact DPDT relay configuration capable of handling 5A output current.
The unit's multifunction timer modes include cyclic off-on, cyclic on-off, interval, ON delay, and one shot timing, covering delays from 0.1 seconds up to 10 hours. The timer settings are easily adjustable through the front-mounted knob, while dual LEDs provide clear indications of runtime and relay status, reinforcing operational transparency and convenience.
Mounted on industry-standard DIN rails, the Timer Relay boasts a slim 22.5 mm width profile, making it suitable for control cabinets with space constraints. Screw terminals allow robust and secure electrical connections for reliable performance in harsh environments.
Applications of the RS PRO 896-6848 are vast, including use in textile machinery, chemical processing plants, mining operations, irrigation systems, raw material handling, food and beverage manufacturing, and general industrial process control. Its compliance with RoHS standards and IP20/IP40 ingress protection ratings ensure it meets stringent quality and safety requirements.
Equipped with 2 changeover DPDT contacts rated for 5A output load. Suitable for supply voltage ranges of 24 V DC to 240 V AC. Timer functions include multiple modes such as ON delay and cyclic functions. Compact DIN rail mount design with dimensions 75 mm (length) × 22.5 mm (width) × 100.5 mm (height).
LED indication for operational and runtime status enhances usability. Robust screw terminal connection ensuring secure electrical contacts. Operating temperature range from -15°C to +60°C permits wide environmental application.
Ideal for industrial automation, electrical control panels, and signal conditioning. For comprehensive solutions and a wide range of robust electrical components, explore more RS PRO products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 24 V DC to 240 V AC.
The dimensions of this unit are 75 mm in length, 22.5 mm in width, and 100.5 mm in height.
It supports multiple timer functions including cyclic off-on, cyclic on-off, interval timing, ON delay, and one shot timing.
This model features 2 changeover DPDT contacts rated for 5A output.
The operating temperature range is from -15°C to 60°C.
It is designed for DIN rail mounting, which allows for easy installation in control cabinets.
It uses robust screw terminals for secure electrical connections.
The timer settings can be adjusted from 0.1 seconds up to 10 hours.
Yes, it complies with RoHS standards, ensuring it meets specific safety and quality requirements.
The dual LED indicators provide clear indications of runtime and relay status, enhancing operational transparency.
It is suitable for various applications including textile machinery, chemical processing, mining operations, and food and beverage manufacturing.
The front knob interface allows for easy and accurate time setting adjustments, improving user convenience.
