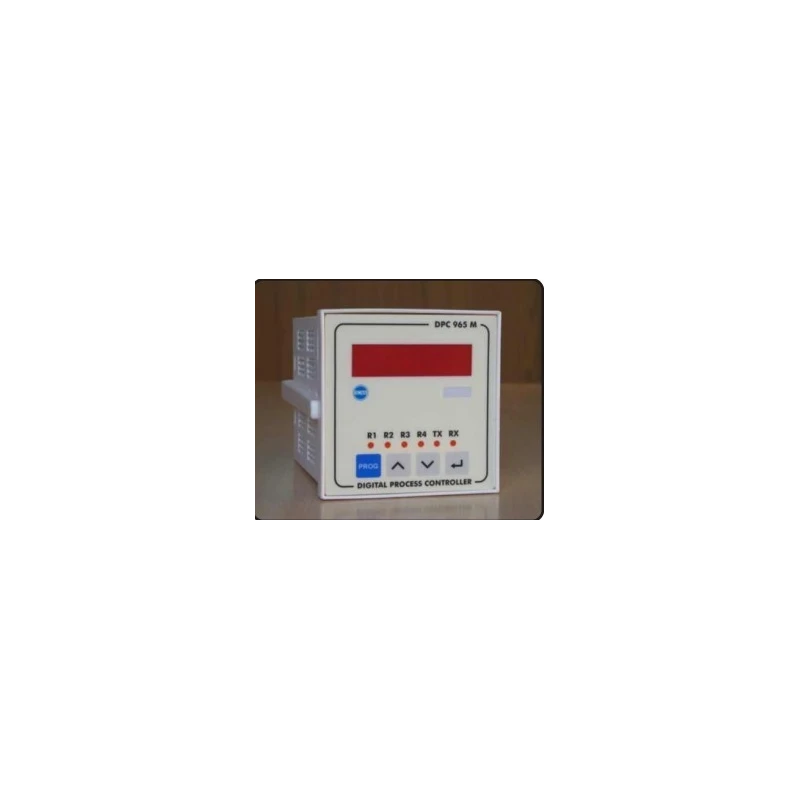

Digital Process Indicator DPC965
Specifications
| Resolution | 4 1/2 Digit. 0.1C resolution for RTD. |
|---|---|
| Accuracy | 0.3 % of FSR 1 LSD |
| Display | 7 segment LED 5 digit process value. Display Size Equal to 1/2 inch |
| Connections | On Screw type connectors |
| Input | 4- 20 mA DC linear / 0 - 10VDC / RTD Pt100 3 wire |
| Keyboard | 4 key tack-tile keyboard |
| Supply | 230VAC / 110VAC 10 % single phase 50 Hz |
| Indications | 3 mm LED indication for Relay and serial operation |
| Data Storage | All settings are stored in a battery backed RAM. |
| Cabinet | Panel mounting ABS enclosure Size -- 96 x 96 x 120 mm ( H x W x D ) Cutout -- 92 x 92 mm |
| Re-transmission (Optional) | 4-20 mA true Retransmission Output for remote indicator or PLC. This feature is available only for 4-20mA input. |
| Scaling (mA or Volt input) | Process value is scalable by software with Decimal point selection. For RTD Pt100 scaling factory set. |
| Relay Outputs Optional | 2 / 4 relay outputs contact rating 230VAC 1Amp operating on 2 / 4 set-points with settable hysterisis. |
| Transmitter Power Supply | 24 VDC100 mA power supply is made available for the external transmitter for 4-20mA input type only. |
| Serial Communication Optional | On line PC connectivity through SERIAL port RS485 on MODBUS protocol. |
Key Features
- Ruggedised, State-of-the-art Micro-controller based system.
- 4 1/2 Digit, 1/2 inch LED display.
- Signal Re-transmission.
- Settable Hysteresis for two/ four relays.
Product Description
DPC 965M is intended to be used for indication and control application. 7-segment RED LED display makes it visible from a long distance. 4 1/2 digit resolution gives accuracy as high as 0.3 % 1 LSD. The unit accepts 4 - 20 mADC linear input, the most commonly used signal in the process industry, or 0 to 10VDC or RTD Pt100. In case of other inputs, we can provide appropriate converters.OptionalTwo/ four relays operate on separate set points and hysteresis is settable.Serial port RS 485 with MODBUS RTU protocol gives the user facility to connect the unit on all standard SCADA and DCS.4-20mA Retransmission output for remote display or PLC can be provided for 4-20mA input type
- User configurable span.
- Serial Communication on RS 485 with Modbus RTU protocol.
- Ideal for SCADA applications.
- Flameproof enclosure - Optional.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DPC965 features a 7-segment LED display with a size equal to 1/2 inch, allowing visibility from a long distance.
It has an accuracy of 0.3% of FSR 1 LSD, providing reliable measurements for various applications.
This model accepts 4-20 mA DC linear, 0-10 VDC, or RTD Pt100 3 wire inputs, making it versatile for different applications.
The unit offers optional 2 or 4 relay outputs with a contact rating of 230VAC 1 Amp, operating on separate set points with settable hysteresis.
It requires a supply of 230VAC or 110VAC ±10%, single phase, at 50 Hz.
Yes, it features an optional serial port RS485 with MODBUS RTU protocol for connectivity with standard SCADA and DCS systems.
The dimensions are 96 x 96 x 120 mm (H x W x D) with a cutout size of 92 x 92 mm, designed for panel mounting.
All settings are stored in a battery-backed RAM, ensuring that configurations are retained even during power loss.
The resolution is 4 1/2 digits, with a 0.1°C resolution specifically for RTD inputs.
Yes, it offers an optional 4-20 mA true re-transmission output for remote indicators or PLCs, applicable only for the 4-20 mA input type.
It features a 4 key tactile keyboard for user input and configuration adjustments.
Yes, the process value is scalable by software with decimal point selection for mA or volt inputs; RTD Pt100 scaling is factory set.
