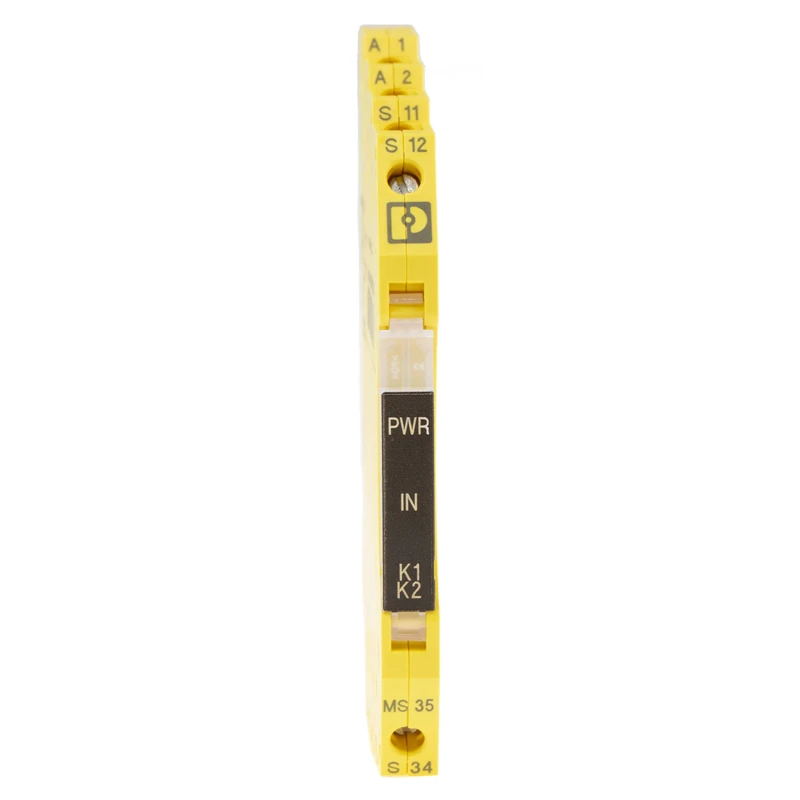

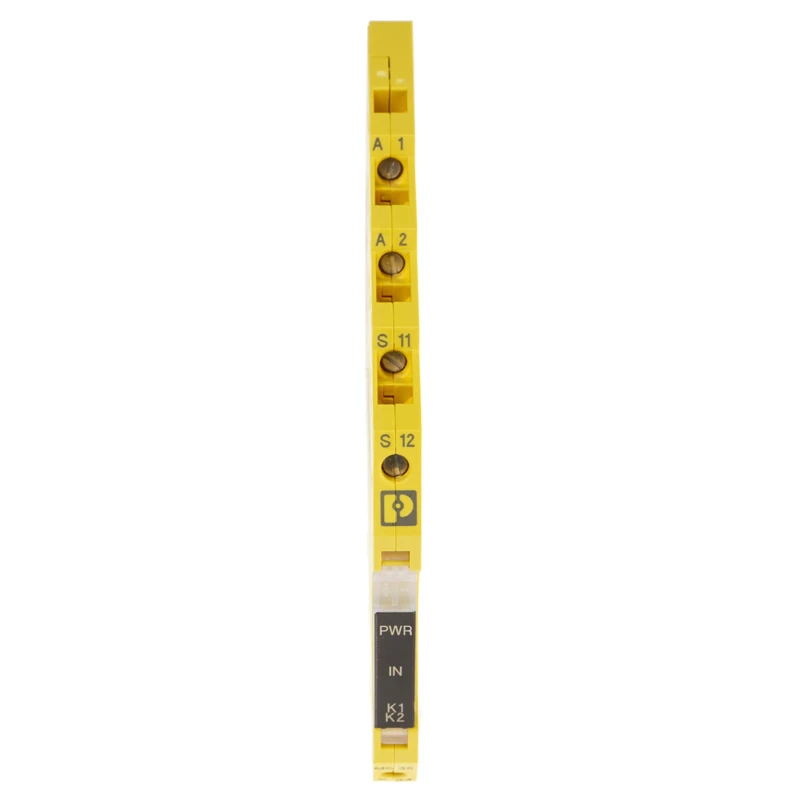

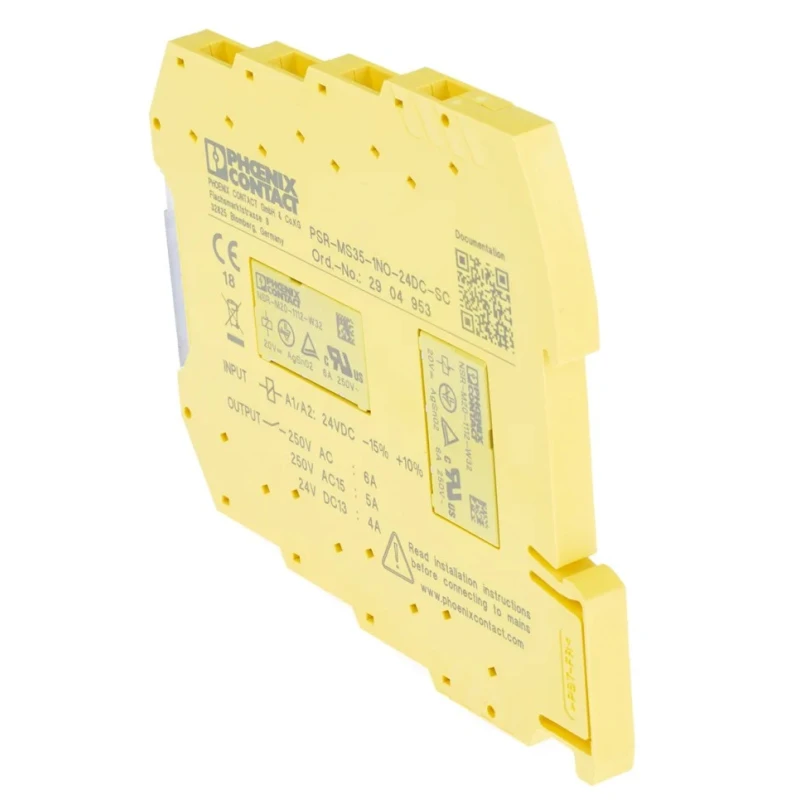

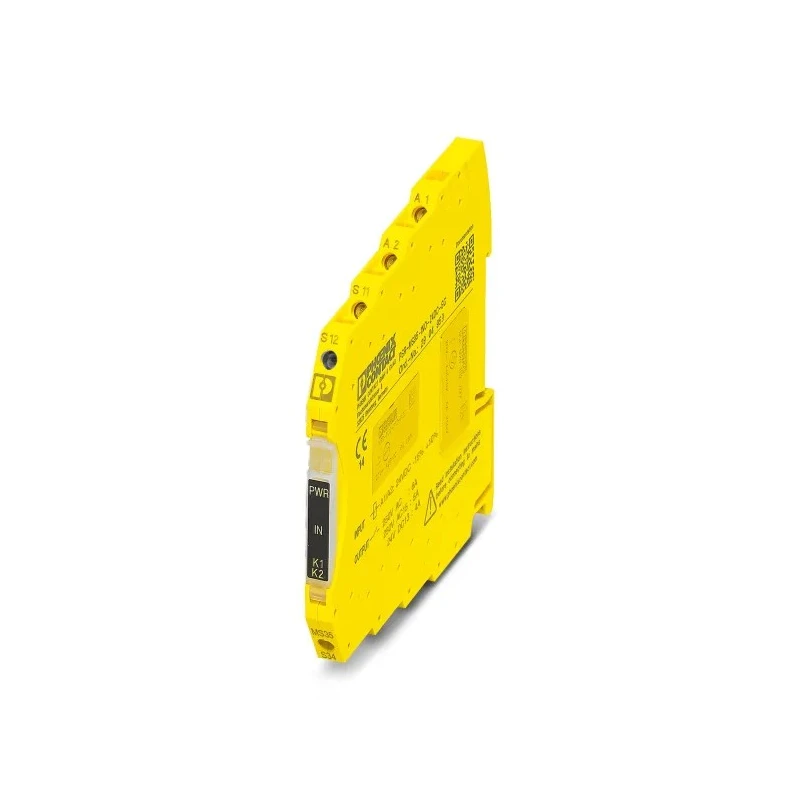

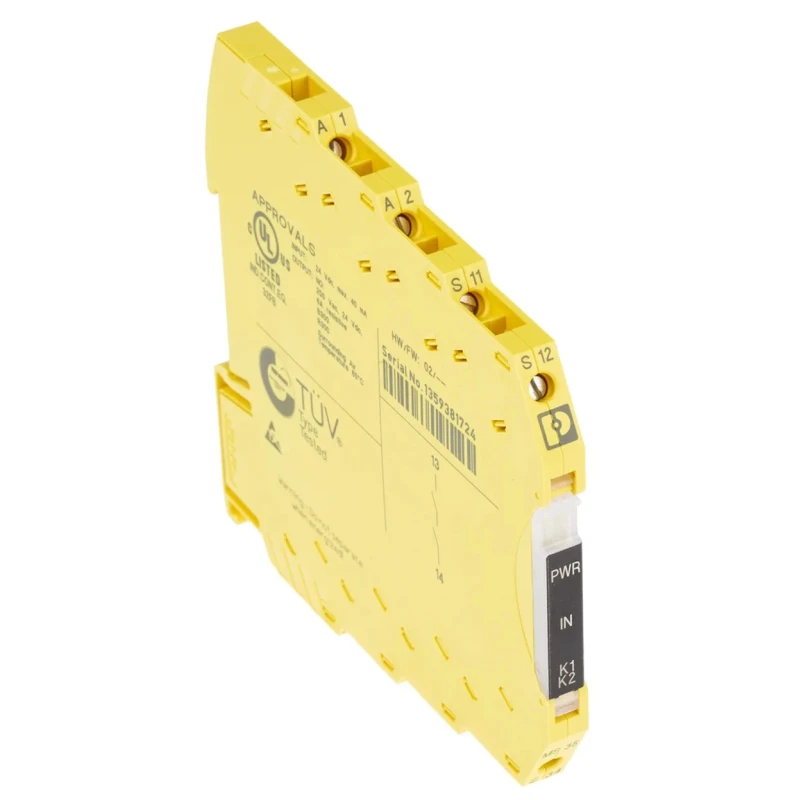

Phoenix Contact 24V DC Safety Relay PSR-MS35-1NO-24DC-SC 1 Safety Contact DIN Rail Mount Germany
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 102.5mm |
| Length | 93mm |
| Model | MS35-1NO-24DC-SC |
| IP Rating | IP20 |
| Width | 7mm |
| Mount Type | DIN Rail |
| Series | PSR-MS35-1NO-24DC-SC |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Safety Category | ISO 13849, EN, PLe, IEC 62061, SIL CL 3 |
| Terminal type | Screw |
| Hazardous Area Certification | IECEx, ATEX |
| Reset Method | Manual |
| Coil Voltage | 24V dc |
| Better World Claim | Concentrated or Compact Solution |
| Contact Current | 6A |
| Safety Contacts | 1 |
| Number of Auxiliary Contacts | 1 |
| Schmersal SRB 101Exi, 24V dc Safety Relay, 1 Safety Contacts, 1Brand | Schmersal |
Key Features
- Operates at 24V DC coil voltage ensuring stable performance.
- Equipped with manual reset method for controlled restart.
- Compact dimensions of 102.5mm height, 93mm length, and 7mm width enable installation in limited spaces.
- Wide operating temperature range from -40°C to 60°C for demanding environments.
- Robust PBT housing provides chemical, impact, and wear resistance.
- Designed for DIN rail mounting for easy integration in industrial control systems.
- IP20 rated for protection against objects greater than 12mm and safe touch.
- Complies with safety standards ISO 13849, IEC 62061, and SIL CL 3 category for industrial safety.
Product Description
Phoenix Contact PSR-MS35-1NO-24DC-SC is a 24V DC safety relay designed for industrial safety applications requiring reliable monitoring and control. Featuring 1 safety contact and 1 auxiliary contact, this device acts as a crucial component for emergency stops, guard doors, and safety switch systems.
The relay is engineered with a robust PBT housing that provides excellent resistance against wear, impact, and chemicals, making it suitable for harsh industrial environments. Its compact size of 102.5mm (H) x 93mm (L) x 7mm (W) allows installation in limited space control panels.
With a wide operating temperature range from -40°C to 60°C and an IP20 rating, the relay ensures safe operation and adequate protection against dust and accidental contact. Its manual reset method allows for controlled reactivation after safety events.
Compliance with international safety standards including ISO 13849, IEC 62061, and SIL CL 3 certification guarantees high safety integrity level and reliability in critical applications.
This DIN rail mountable relay is fitted with screw terminals suitable for secure wiring connections and provides clear LED indication for operational status, simplifying maintenance and diagnostics.
Operates at 24V DC coil voltage with 1 safety and 1 auxiliary contact. Compact and robust design for harsh industrial use. Wide temperature and IP20 protection rating. Meets high-level safety standards including ISO 13849 and IEC 62061.
Manual reset for enhanced control and safety management. Ideal for use in industrial automation, machinery safety, and control systems, the PSR-MS35-1NO-24DC-SC enhances protection of personnel and equipment. Explore more Safety Relays and industrial control components within our Electronics & Electricals catalog to support your system safety requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This safety relay operates at a coil voltage of 24V DC, ensuring stable performance in industrial applications.
The dimensions of the PSR-MS35-1NO-24DC-SC are 102.5mm in height, 93mm in length, and 7mm in width, making it suitable for installation in limited spaces.
It has a wide operating temperature range from -40°C to 60°C, allowing it to function effectively in demanding environments.
The PSR-MS35-1NO-24DC-SC is equipped with 1 safety contact and 1 auxiliary contact, making it suitable for various safety applications.
This model is designed for DIN rail mounting, facilitating easy integration into industrial control systems.
This safety relay has an IP20 rating, providing protection against objects greater than 12mm and ensuring safe touch.
It features a manual reset method, allowing for controlled reactivation after safety events.
The relay complies with safety standards ISO 13849, IEC 62061, and SIL CL 3, ensuring high safety integrity in critical applications.
The PSR-MS35-1NO-24DC-SC is fitted with screw terminals for secure wiring connections.
This safety relay is manufactured in Germany, reflecting its engineering quality and standards.
The contact current rating for this model is 6A, suitable for various industrial applications.
It is ideal for use in industrial automation, machinery safety, and control systems, enhancing the protection of personnel and equipment.
