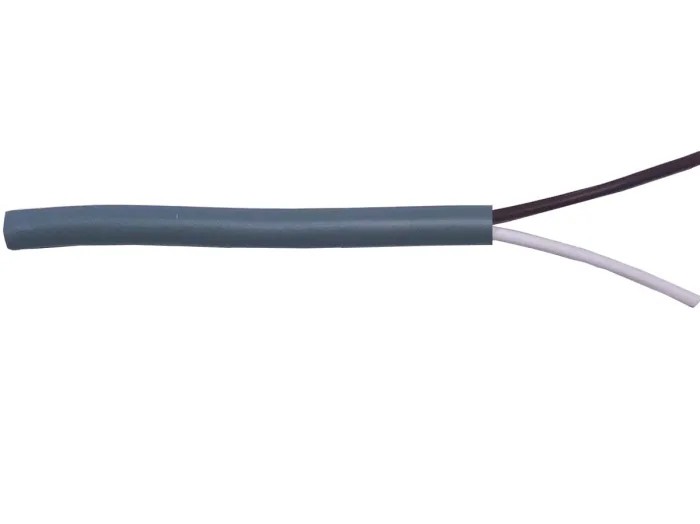

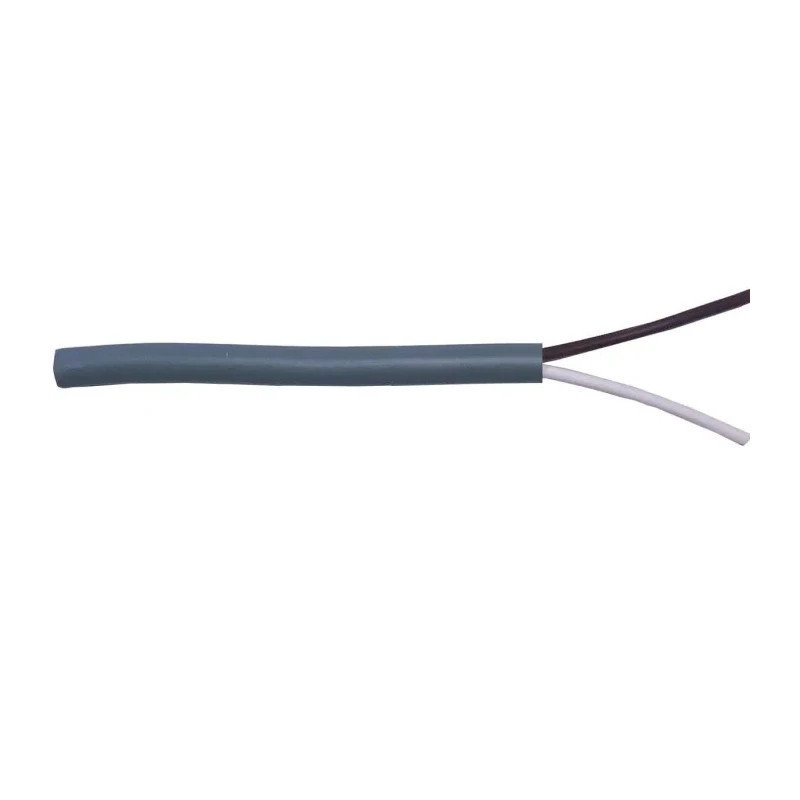

RS PRO Data Cable 2 Cores 0.14 mm² 100 m Grey Polyvinyl Chloride Sheath 250V 195-9512
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Operating Temperature | -5 °C to +80 °C |
| CROSS SECTIONAL AREA | 0.14 mm² |
| Model | 195-9512 |
| Cable Length | 100m |
| Outside diameter | 3.4mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 2 |
| Conductor Material | Copper |
| Bend Radius | 27.2 (outer diameter mm x 8) |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | EAC, EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Conductor resistance (20℃ Ω/km) | 130 max |
Key Features
- The cable consists of 2 copper stranded cores with a cross sectional area of 0.14 mm².
- It features a durable grey polyvinyl chloride sheath for protection and flexibility.
- The overall cable length is 100 meters with an outside diameter of 3.4 mm.
- Designed to operate in temperatures ranging from -20°C to 70°C.
- The cable has a maximum conductor resistance of 130 Ω/km at 20°C.
- Conforms to EAC, EN, and CE standards ensuring quality and safety.
- Its flame retardant fire behaviour adds an extra layer of safety in installations.
- The bend radius is 27.2 mm, providing flexibility in tight spaces.
Product Description
RS PRO 195-9512 Data Cable 2 Cores 0.14 mm² 100 m Grey Sheath Polyvinyl Chloride is a robust and flexible cable designed for a wide range of electrical and industrial applications. Featuring two stranded copper cores with a cross sectional area of 0.14 mm², this cable provides reliable electrical connections with excellent insulation qualities due to its polyvinyl chloride jacket.
The cable's grey PVC sheath is flame retardant, enhancing safety during use in environments where fire risk is a concern. It has an outside diameter of 3.4 mm and a bend radius of 27.2 mm, making it suitable for installations within confined spaces and neat cable layouts. It is rated to operate at voltages up to 250V and in ambient temperatures from -20°C to 70°C, ensuring versatility across various industrial, commercial, and entertainment sectors.
This RS PRO cable meets EAC, EN, and CE standards, reflecting its compliance with international quality and safety benchmarks. Its flexible stranded conductor design aids in efficient installation and routing. The cable offers a maximum conductor resistance of 130 Ω/km at 20°C, balancing conductivity and durability.
Applications for this multicore cable include use in machine and factory control equipment, entertainment and audio industries, conveyor belts, data and networking systems, as well as security and safety installations. The cable type reduces tripping hazards and improves overall equipment appearance due to its manageable size and sheath colour.
The cable contains 2 cores of 18/0.10 mm copper strands. Its grey polyvinyl chloride protective sheath ensures durability and flame retardance. Rated for operating temperatures between -20°C and 70°C. Complies with EAC, EN, CE standards for industrial safety and quality.
Provides reliable insulation and flexible installation options. Suitable for a wide range of industrial, entertainment, and control applications. 250 V voltage rating. 100 m cable length with 3.4 mm diameter for compact installations.
Explore more quality cables and electrical components in the RS PRO brand collection at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this cable is 70°C.
The cable features a cross-sectional area of 0.14 mm² for each of its two cores.
This data cable is rated for a voltage of 250V.
The outside diameter of this cable is 3.4 mm.
The cable is constructed with stranded copper cores and a grey polyvinyl chloride (PVC) sheath.
The bend radius for this model is 27.2 mm.
This cable conforms to EAC, EN, and CE standards, ensuring compliance with international quality and safety benchmarks.
The minimum operating temperature for this cable is -20°C.
This data cable has a flame retardant fire behaviour, enhancing safety during use.
The maximum conductor resistance for this cable is 130 Ω/km at 20°C.
The length of this data cable is 100 meters.
This cable is manufactured in China.
