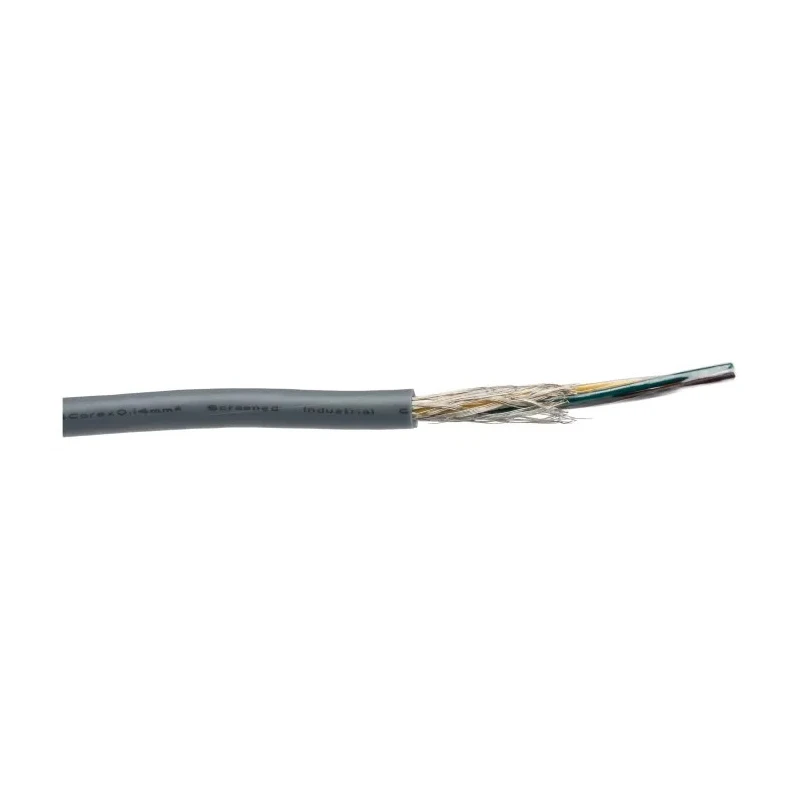

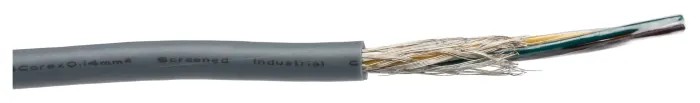

RS PRO Data Cable 4 Cores 0.14 mm² 100 m Grey Sheath Polyvinyl Chloride 195-9505
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Operating Temperature | -5 °C to +80 °C |
| CROSS SECTIONAL AREA | 0.14 mm² |
| Model | 195-9505 |
| Cable Length | 100m |
| Outside diameter | 4.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Copper |
| Bend Radius | 36 (outer diameter mm x 8) |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | EAC, CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Conductor resistance (20℃ Ω/km) | 130 max |
Key Features
- The cable consists of 4 stranded copper cores with a cross-sectional area of 0.14 mm² each.
- The overall cable length is 100 meters with a grey PVC protective sheath providing durable insulation.
- Designed to operate reliably between -20°C and 70°C with a maximum voltage rating of 250 V.
- The cable has an outside diameter of 4.5 mm and a bend radius multiplier of 36 for flexible installation.
- It features flame retardant properties and meets standards including EAC, CE, and EN.
- The stranded copper conductor ensures excellent electrical performance with a maximum conductor resistance of 130 Ω/km at 20°C.
- Ideal for neat multi-purpose cable installations, improving safety and reducing trip hazards.
- Commonly used in data, security, industrial automation, and control equipment applications.
Product Description
RS PRO 195-9505 Data Cable 4 Cores 0.14 mm² 100 m Grey Sheath Polyvinyl Chloride is a high-quality multicore electrical cable designed for reliable and flexible industrial and commercial wiring applications. With stranded copper conductors, this cable provides excellent conductivity while the grey polyvinyl chloride sheath offers robust insulation and protection.
The cable is constructed with four 0.14 mm² cores, each consisting of 18 strands of 0.10 mm diameter wire, enabling flexibility and durability thanks to the stranded conductor design. The overall sheath diameter is 4.5 mm, making it compact and suitable for installations in limited spaces or where a neat cable layout is essential.
This cable operates safely within a temperature range of -20°C to 70°C and is rated for 250 V operating voltage. It also has flame retardant properties that comply with EAC, CE, and EN safety standards, enhancing safety in industrial and commercial environments.
Electrical characteristics include a maximum conductor resistance of 130 Ω/km measured at 20°C, ensuring minimal conductivity loss over the 100-meter length. The bend radius of 36 (8 times the outer diameter) supports flexible installation while maintaining cable performance and longevity.
RS PRO 195-9505 Data Cable is ideally suited for a wide range of applications such as industrial control systems, data and networking installations, security systems, factory machinery wiring, DIN-Rail terminals, conveyor belts, and entertainment sectors where multiple conductor cables are required.
The cable features four copper cores with polyvinyl chloride insulation and grey protective sheath. It offers exceptional flexibility and flame retardant safety for harsh environments. The cable length of 100 meters makes it suitable for long runs without additional splicing.
Industry certifications EAC, CE, and EN ensure compliance with international standards. Operating temperature range from -20°C to 70°C allows use in varied climates and industrial settings. Its compact 4.5 mm outer diameter supports efficient cable management in crowded installations.
The stranded conductor design provides mechanical strength and electrical reliability. Supports industrial, laboratory, HVAC, manufacturing, data communication, and safety system requirements.
This RS PRO multicore Data Cable delivers consistent performance and durability, making it a preferred choice for professionals seeking a reliable wiring solution. Explore EnvMart’s extensive range of electrical cables for compatible accessories and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this data cable is 250 V.
This model operates reliably within a temperature range of -20°C to 70°C.
The outside diameter of the cable is 4.5 mm.
The cable consists of 4 cores, each with a cross-sectional area of 0.14 mm².
The cable features stranded copper conductors and a grey polyvinyl chloride (PVC) sheath.
This cable has flame retardant properties and complies with EAC, CE, and EN safety standards.
The maximum conductor resistance is 130 Ω/km at 20°C.
The bend radius multiplier is 36, which is eight times the outer diameter of the cable.
This data cable is commonly used in data, security, industrial automation, and control equipment applications.
The country of origin for this data cable is China.
The cable length is 100 meters, making it suitable for long runs without additional splicing.
This cable uses stranded conductors, which provide excellent conductivity and flexibility.
