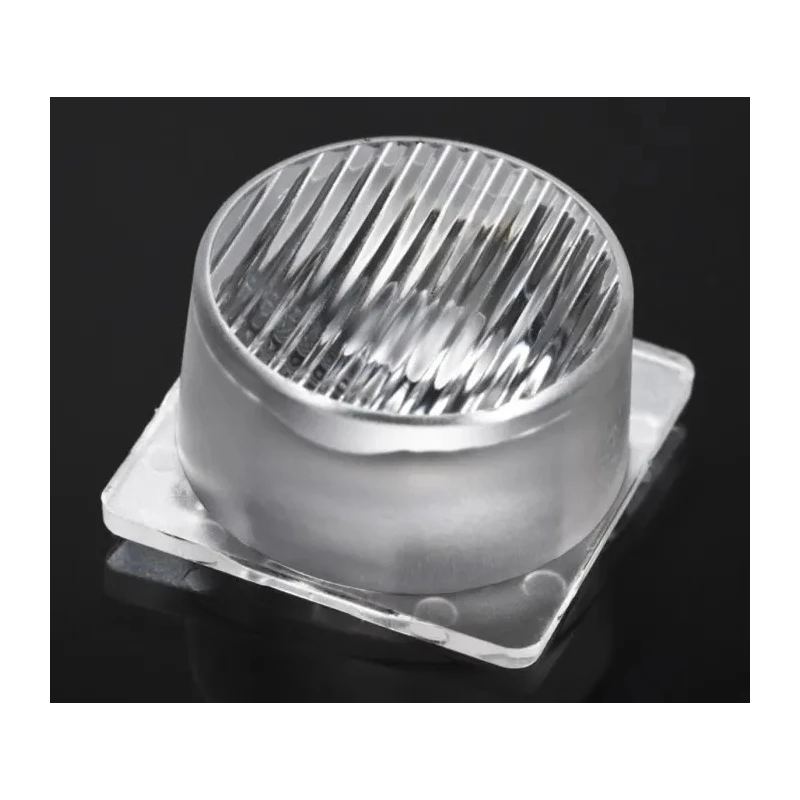

Ledil Veronica Series 1-Way LED Lens Square Beam, Polymethyl Methacrylate, Clear, 22.5mm x 22.5mm x CA13726_VERONICA-SQ-O

Ledil CA13726_VERONICA-SQ-O Veronica Series 1-Way LED Lens Square Beam is a high-quality LED lens designed to optimize light distribution from a single LED source. Made from optical grade Polymethyl Methacrylate (PMMA), this lens delivers excellent UV and temperature resistance, ensuring durability and consistent performance in demanding industrial and commercial lighting applications.

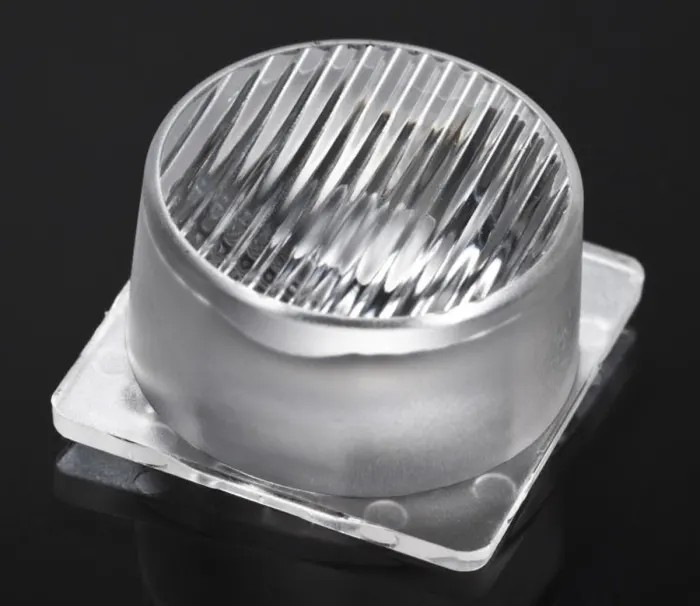

The lens features a clear, round shape with a square emission pattern, measuring 22.5 mm in both length and width, and 12.2 mm in height. Its pin fixing method and adhesive tape enable straightforward installation, while its compact design minimizes footprint for versatile use in tight spaces.

This lens is compatible with a broad range of high-performance LEDs such as Cree XM-L, OSRAM OSLON Square EC, Lumileds LUXEON TX and Rebel series, Samsung LH351Z, Nichia models, and others, making it suitable for diverse lighting setups.

The Veronica Series lenses are TIR optical elements that also serve as the LED's structural holder and sealing surface. Designed for both indoor and outdoor environments, they support IP ratings up to IPx8, making them ideal for rugged commercial and industrial lighting, including architectural, signage, and general illumination applications.

The design enables precise control over beam angles, offering spot to wide beam options with uniform output light distribution. The lenses' high-quality PMMA construction ensures longevity and optimal light transmission without degradation over time.

The lens dimensions are 22.5 mm x 22.5 mm x 12.2 mm with clear optical PMMA material. It features a pin fixing method with included adhesive tape for installation. Compatible with many leading LED technologies for flexible application use.

Provides square emission pattern with uniform beam performance. Supports IPx8 ratings suitable for indoor and outdoor environments. Designed as an optical element, structural holder and sealing surface. Manufactured in China with precision and industrial standards.

Optimized for commercial, industrial, and architectural LED lighting solutions. Explore more LED lenses and reflectors in our extensive Electronics & Electricals catalog at EnvMart for your lighting design needs.
