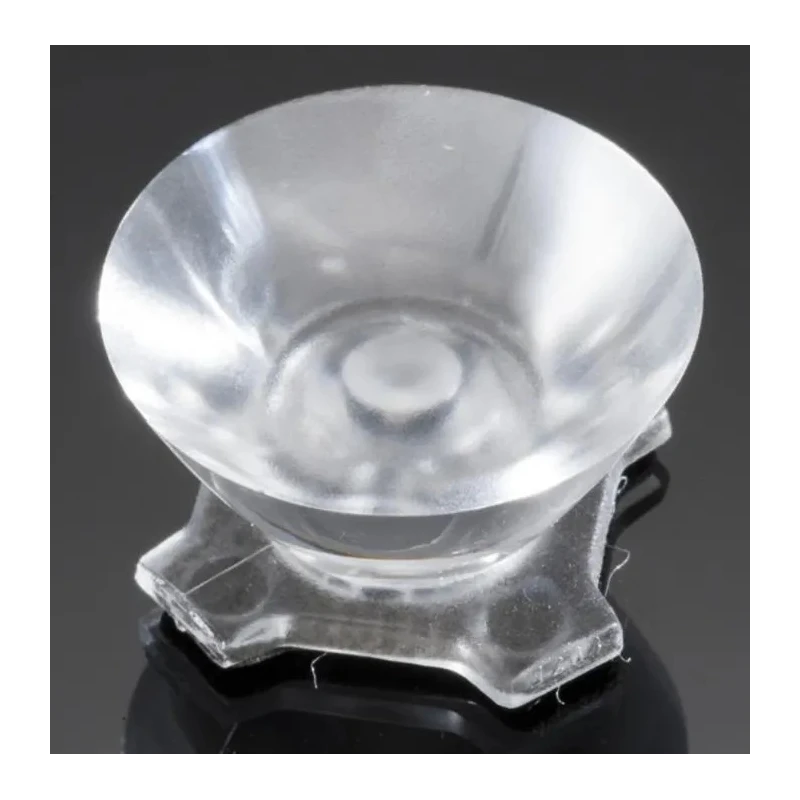

Ledil Heidi Series 1-Way LED Lens 12 to 18 ° Round Beam CA12530_HEIDI-D
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 21.6mm |
| Brand | Ledil |
| Height | 11.7mm |
| Model | CA12530_HEIDI-D |
| Series | Heidi |
| Viewing angle | 12 to 18 ° |
| Lens Material | Polymethyl Methacrylate |
| For Use With | OSRAM OSLON SSL 150, Lumileds LUXEON A, Lumileds LUXEON Rebel ES, Cree XP-L, Lumileds LUXEON R, Lumileds LUXEON Rebel |
| Lens Shape | Round |
| Emission Pattern | Round |
| Lens Style | Round |
| Fixing Method | Pin |
| Number of LEDs Per Lens | 1 |
Key Features
- The lens is designed for use with a single LED for optimized lighting performance.
- Constructed from optical grade Polymethyl Methacrylate offering high UV and temperature resistance.
- Features a clear round shape with a diameter of 21.6 mm and height of 11.7 mm.
- Fixing is done via pin method for secure mounting in LED assemblies.
- Compatible with various LEDs including OSRAM OSLON SSL 150, Lumileds LUXEON series, and Cree XP-L.
- The lens provides uniform light output with a round emission pattern suitable for industrial LED lighting applications.
- Manufactured in China and supplied in new condition for quality assurance.
Product Description
Ledil CA12530_HEIDI-D Heidi Series 1-Way LED Lens is a precision optical component designed for industrial and commercial LED lighting applications. This lens produces a focused round beam with a viewing angle ranging from 12 to 18 degrees, making it ideal for situations requiring well-defined light projection.
Crafted from high-quality Polymethyl Methacrylate (PMMA), the lens offers excellent optical clarity along with strong resistance to UV degradation and elevated temperatures, ensuring durability and stable performance over time.
The lens has a diameter of 21.6 mm and height of 11.7 mm, optimized for use with single LEDs and fixed securely using a pin mount method. It is compatible with a wide variety of high-performance LEDs, including OSRAM OSLON SSL 150, Lumileds LUXEON A, Lumileds LUXEON Rebel ES, Cree XP-L, Lumileds LUXEON R, and Lumileds LUXEON Rebel series.
The lens shape and emission pattern are round, providing a uniform output with consistent beam quality. The viewing angle varies by LED chip size and position, with this model providing a narrow to medium beam between 12 to 18 degrees.
Designed for modular lighting systems, LEDil's HEIDI Series lenses accommodate multiple beam shaping options including spot, oval, and rectangular beams, although this model is a round beam variant.
Its optical grade material ensures the light is efficiently transmitted with minimal losses. The lens is essential for applications such as LED displays, industrial lighting, signaling, and specialized illumination in manufacturing and commercial sectors.
Manufactured in China, this lens is delivered new and meets industry performance standards for energy-efficient LED optics. Use with recommended LED types ensures optimal photometric performance and longevity in demanding environments.
Explore more LED Lenses and reflectors in the Electronics & Electricals category to find compatible products and advanced lighting components suitable for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing angle of this lens ranges from 12 to 18 degrees, providing a focused round beam suitable for various lighting applications.
This lens has a diameter of 21.6 mm and a height of 11.7 mm, making it optimized for use with single LEDs.
The lens is constructed from optical grade Polymethyl Methacrylate (PMMA), which offers high UV and temperature resistance.
It is compatible with various LEDs including OSRAM OSLON SSL 150, Lumileds LUXEON A, Lumileds LUXEON Rebel ES, and Cree XP-L.
The lens is fixed securely using a pin mounting method, ensuring stable installation in LED assemblies.
This model provides a round emission pattern, delivering uniform light output suitable for industrial LED lighting applications.
This lens is designed for industrial and commercial LED lighting applications, including LED displays, signaling, and specialized illumination.
The lens style is round, which is optimized for producing a focused beam of light.
The lens is manufactured in China and is supplied in new condition for quality assurance.
This lens is designed for use with a single LED, ensuring optimized lighting performance.
The lens is made from high-quality PMMA, which provides excellent optical clarity and strong resistance to UV degradation and elevated temperatures.
Yes, the Heidi series accommodates multiple beam shaping options including spot, oval, and rectangular beams, though this model specifically provides a round beam.
